Family Designation: C#-HFIR/L-MC

Boring bars for internal grooving and turning with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. Dmin. 20 mm.

Right-hand shown

Left-hand shown

Right-hand shown

Left-hand shown

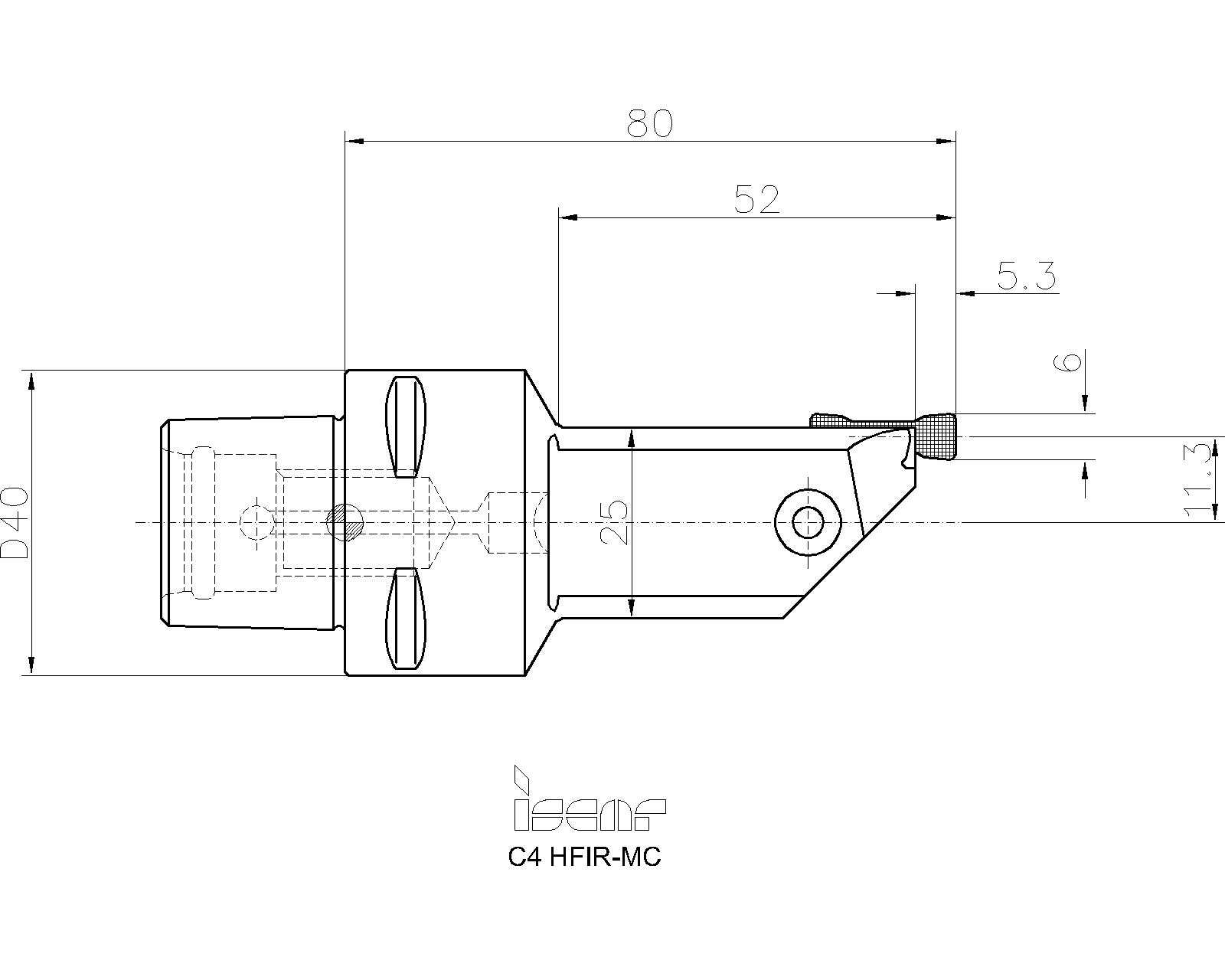

Item Designation: C4 HFIR-MC

CWN	CWX	DCONMS	WF	LDRED	LF	BDRED	HAND	CW	CDX	CSP	OAL	CCMS	CDI	CICT	CUTDIA	DMIN	LU	GICAT	GIREM	giic
3.00	6.00	40.00	11.30	52.0	80.0	25.00	R	4.00~	5.30~	1~	104.00~	CCS01C0400$$$$~	1	1~	-~	-~	-~	2500494		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2500494		1	32	40			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500494&cat=2500494&itemDesc=C4 HFIR-MC"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500494', 'C4 HFIR-MC' , 'IscarDxf' , '2500494-C4 HFIR-MC');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500494&itemDesc=C4 HFIR-MC"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500494&itemDesc=C4 HFIR-MC"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
