Family Designation: HELIR/L HELI-GRIP external holders for turning, grooving & parting
Right-hand shown

Right-hand shown

Item Designation: HELIR 3232-4T25
CDX  CWN  CWX  Fig. CUTDIA  H HF B WF OAL LH WB HBH MIID  HAND APMX CCMS CSP  CW KAPR  GICATGIREMgiic
-4.004.762.50.032.032.032.030.40150.0043.03.20-GRIP 4004YR4.00~VKT01A3232~~~~2500618 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
2500618 049632<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2500618&itemDesc=HELIR 3232-4T25"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2500618&itemDesc=HELIR 3232-4T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2500618&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on "More Info"
To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
3D Representation
Assembly Video

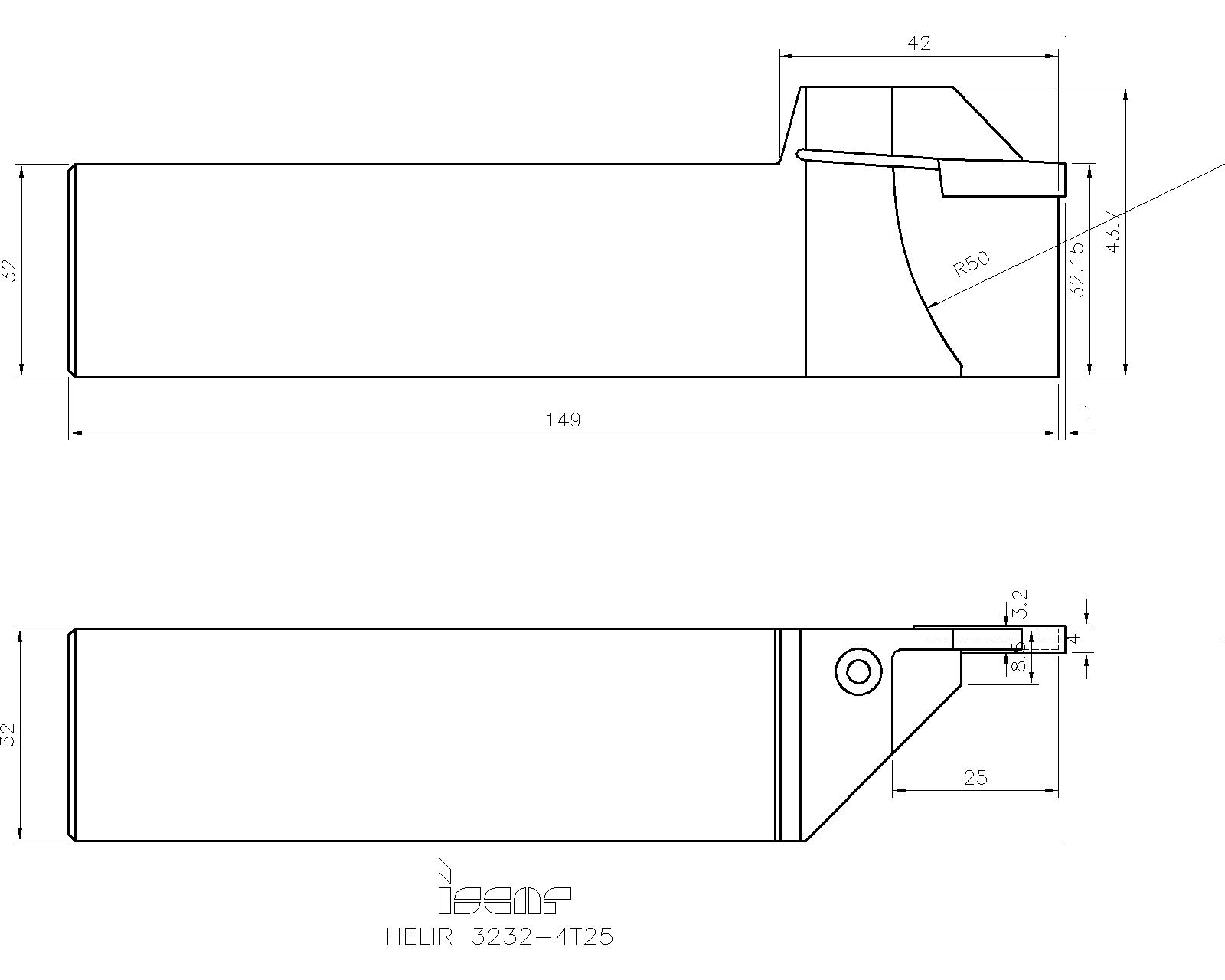

2D Representation
  Spare Parts
7001842SR M6X20 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
