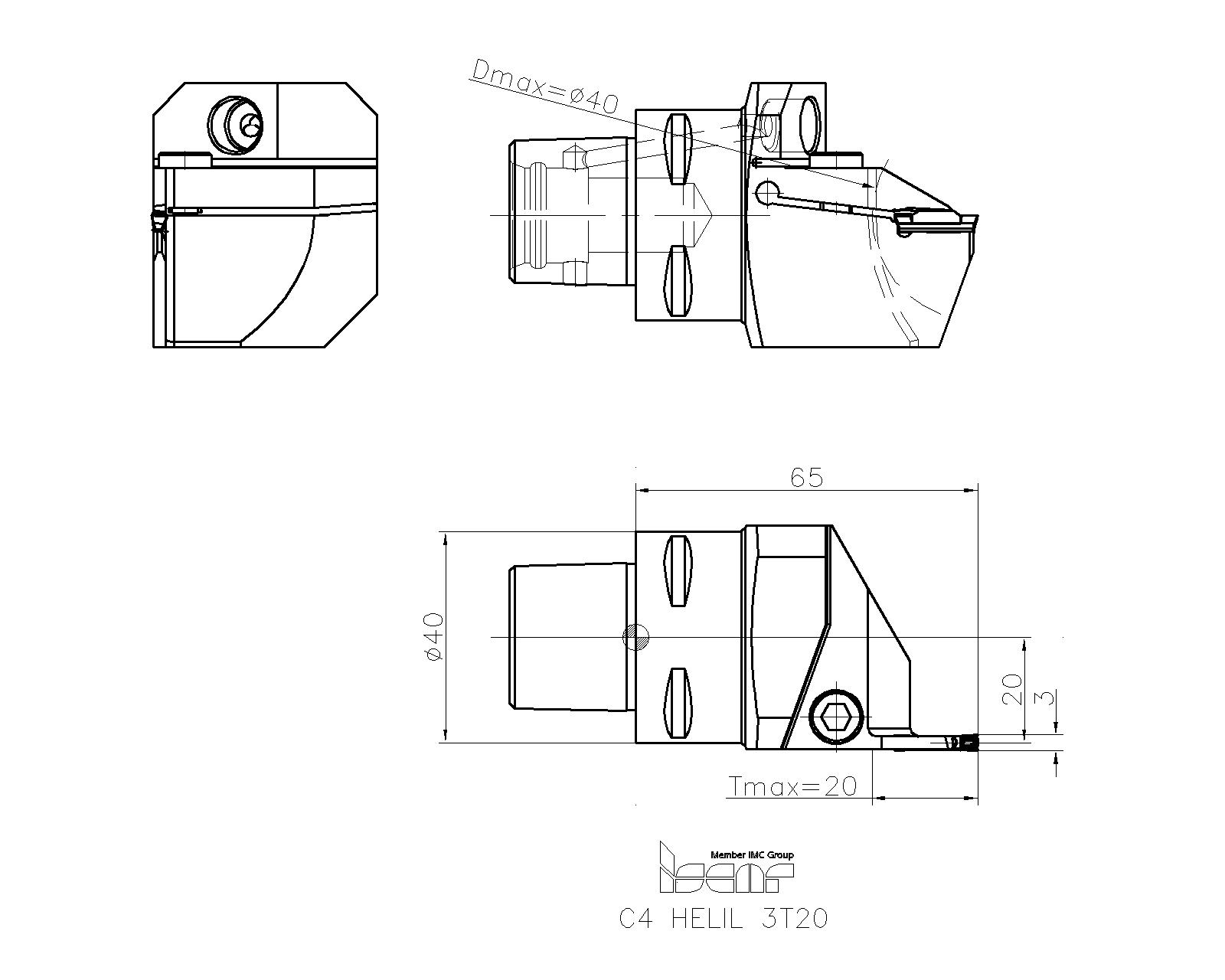

Family Designation: C#-HELIR/L HELI-GRIP external grooving turning and parting tools with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Left-hand shown

Left-hand shown

 COOLANT THROUGH TOOL
Item Designation: C4 HELIL 3T20
DCONMS CWN  CWX  WF HAND LF CUTDIA  CW OAL CP  CSP  CCMS CDX CICT  DCP  DMIN LDRED LU GICATGIREMgiic
40.003.003.1820.00L65.0040.03.00~89.00~1001~CCS01C0400$$$$~-~1~1-~-~-~2500667 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
2500667 0560<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2500667&itemDesc=C4 HELIL 3T20"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2500667&itemDesc=C4 HELIL 3T20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2500667&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
The depth of cut (CDX) for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on "More Info"
To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001841SR M6X16 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
Details
7000898EZ 104Cooling nozzle
Details
