Family Designation: HGPAD-JHP

MODULAR-GRIP adapters with high-pressure coolant channels carrying turning, grooving and parting inserts.

WF(assembly)=WF(holder)+WF(adapter)

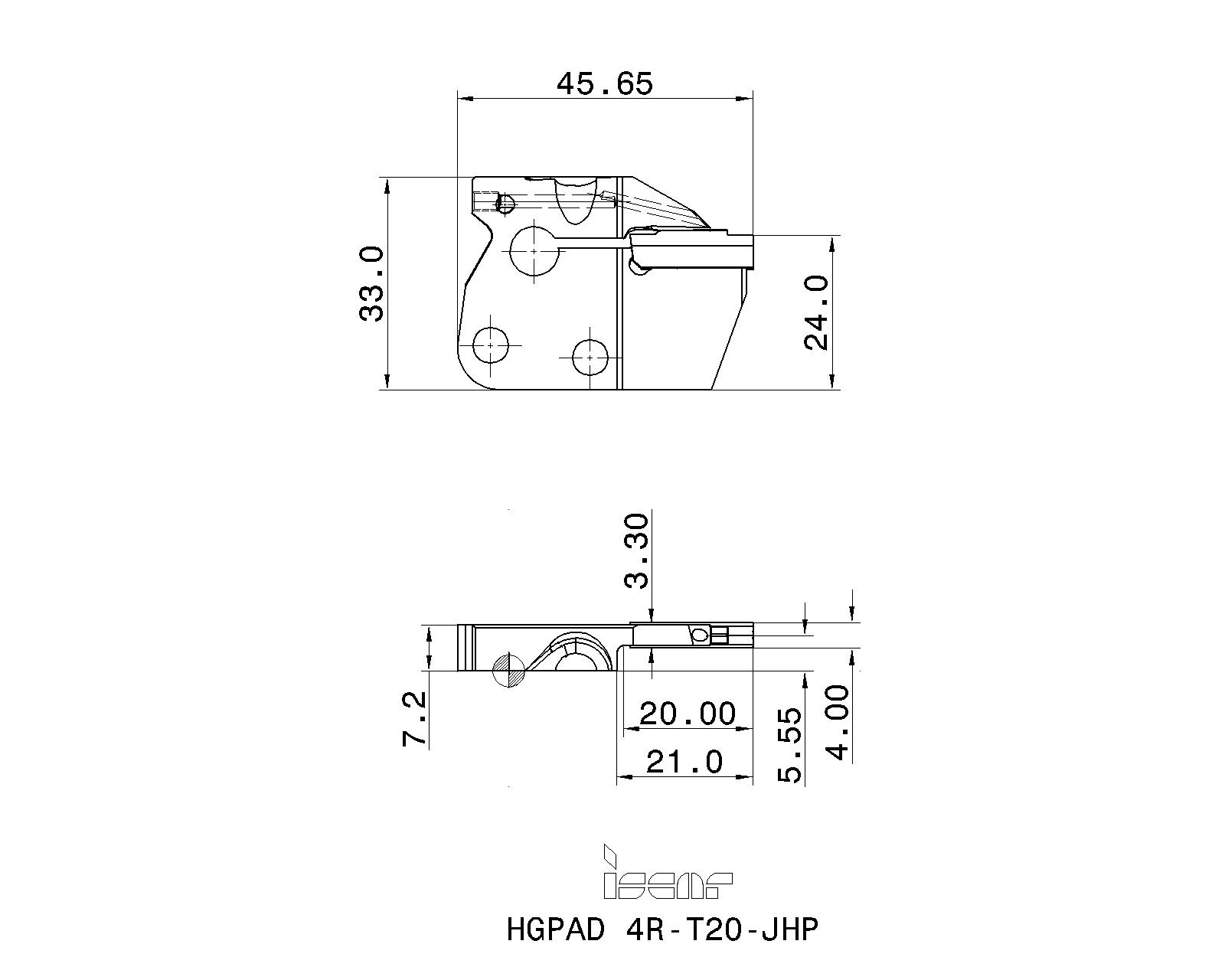

Item Designation: HGPAD 4R-T20-JHP

CWN	CWX	CDX	LPR	WF	WB	WB_2	OAL	OAH	HF	HAND	CCMS	CSP	KAPR	GICAT	GIREM	giic
4.00	4.76	20.00	21.0	5.55	3.30	7.2	45.70	33.0	24.0	R~	IMC01C.00000$$$$~	1~	~	2500712		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2500712		1	304	744			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500712&cat=2500712&itemDesc=HGPAD 4R-T20-JHP"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2500712', 'HGPAD 4R-T20-JHP' , 'IscarDxf' , '2500712-HGPAD 4R-T20-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500712&itemDesc=HGPAD 4R-T20-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2500712&itemDesc=HGPAD 4R-T20-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
