ISCAR Cutting Tools - Metal Working Tools - HFAIR/L-DG : 2500726 - HFAIL 75C-4T30DG
Geometry Checker ×

Family Designation: HFAIR/L-DG Adapters for internal face grooving and turning, Dmin 55 mm.
Right-hand shown

Right-hand shown

 COOLANT THROUGH TOOL

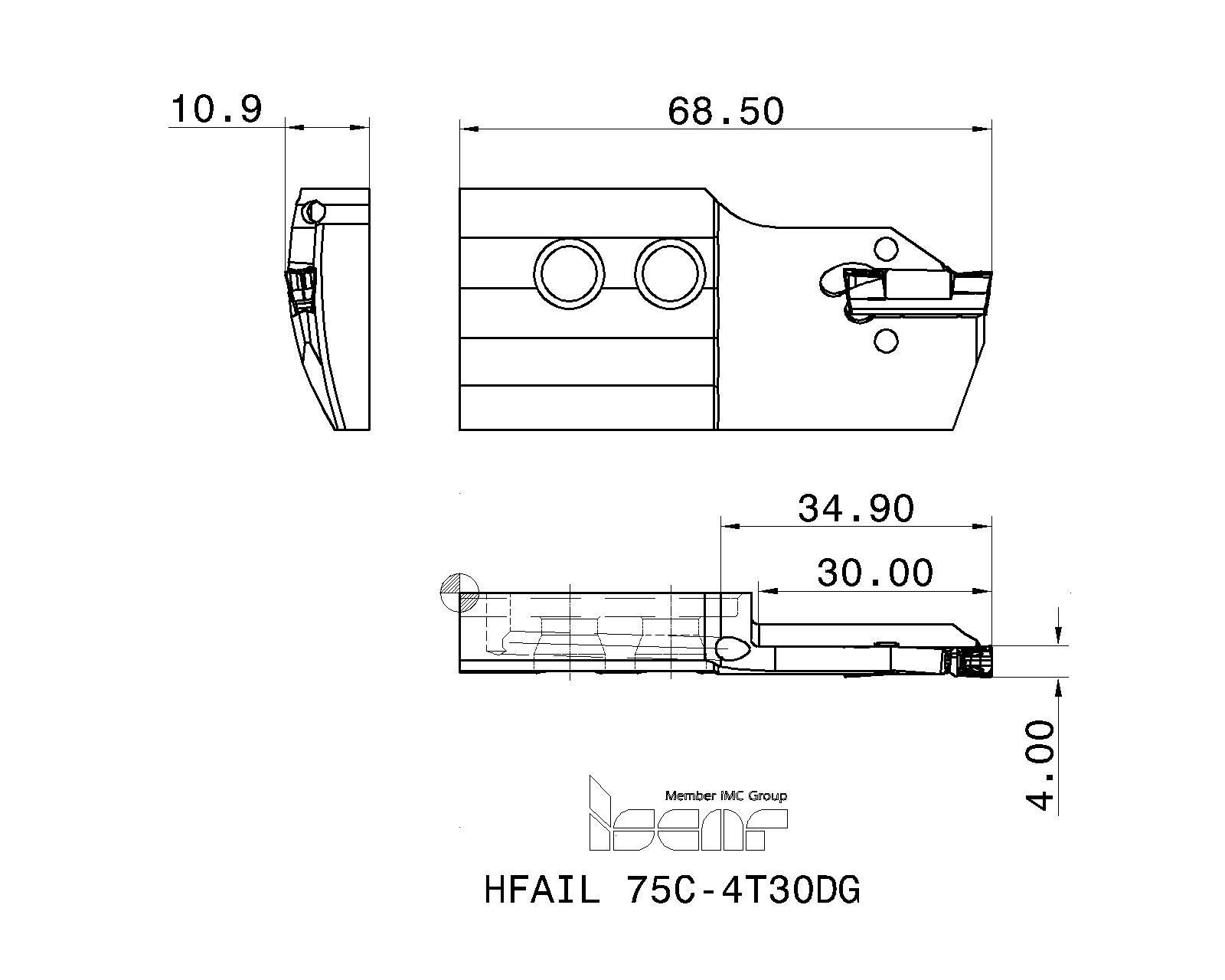

Item Designation: HFAIL 75C-4T30DG
CW DAXN  DAXX  CDX WF OHX  OAL HAND CSP  APMX GICATGIREMgiic
4.0075.0140.030.0010.934.568.50L~4.00~2500726 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2500726 148704<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2500726&cat=2500726&itemDesc=HFAIL 75C-4T30DG"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('2500726', 'HFAIL 75C-4T30DG' , 'IscarDxf' , '2500726-HFAIL 75C-4T30DG');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2500726&itemDesc=HFAIL 75C-4T30DG"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=2500726&itemDesc=HFAIL 75C-4T30DG"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
After initial groove, no limitation to widening groove outward or toward center
DGN inserts can be used on right- and left-hand tools, GRIP inserts only on right-hand tools, HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools.
3D Representation
2D Representation
  Spare Parts
7001912EDG 33B
(Optional, should be ordered separately)		Extractor
Details
