Family Designation: HFAER/L-4 Adapters for external facing along shaft. Dmin, 40 mm.
Right-hand shown

Left-hand shown
Right-hand shown

Left-hand shown
Item Designation: HFAEL 48-4T20
CDX CW DAXN  DAXX  OAL OHX  WF HAND CWN  CWX  APMX CSP  GICATGIREMgiic
20.004.0048.060.068.5021.011.6L0.00~0.00~0.00~~2550067 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2550067 1144136<a href="javascript:OpenDxf('2550067', 'HFAEL 48-4T20' , 'IscarDxf' , '2550067-HFAEL 48-4T20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2550067&itemDesc=HFAEL 48-4T20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2550067&itemDesc=HFAEL 48-4T20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For insert clamping instructions, click on "More Info"
3D Representation
Assembly Video

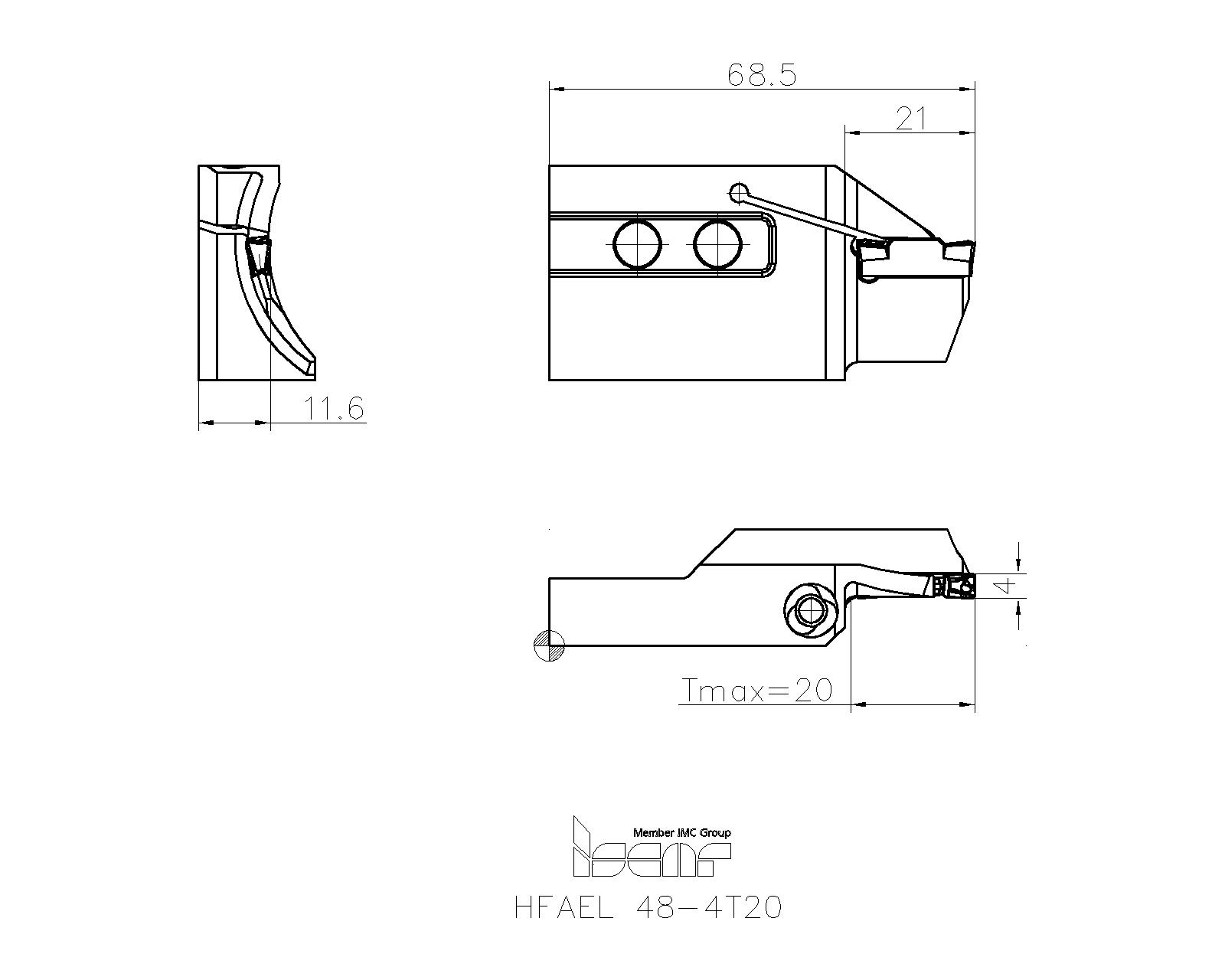

2D Representation
  Spare Parts
7001845SR M5X16 DIN912Socket head cap screw
Details
7000043HW 4.0Hex key
Details
