Family Designation: HFAIR/L-4

Adapters for internal face grooving and turning, Dmin 34 mm.

Right-hand shown

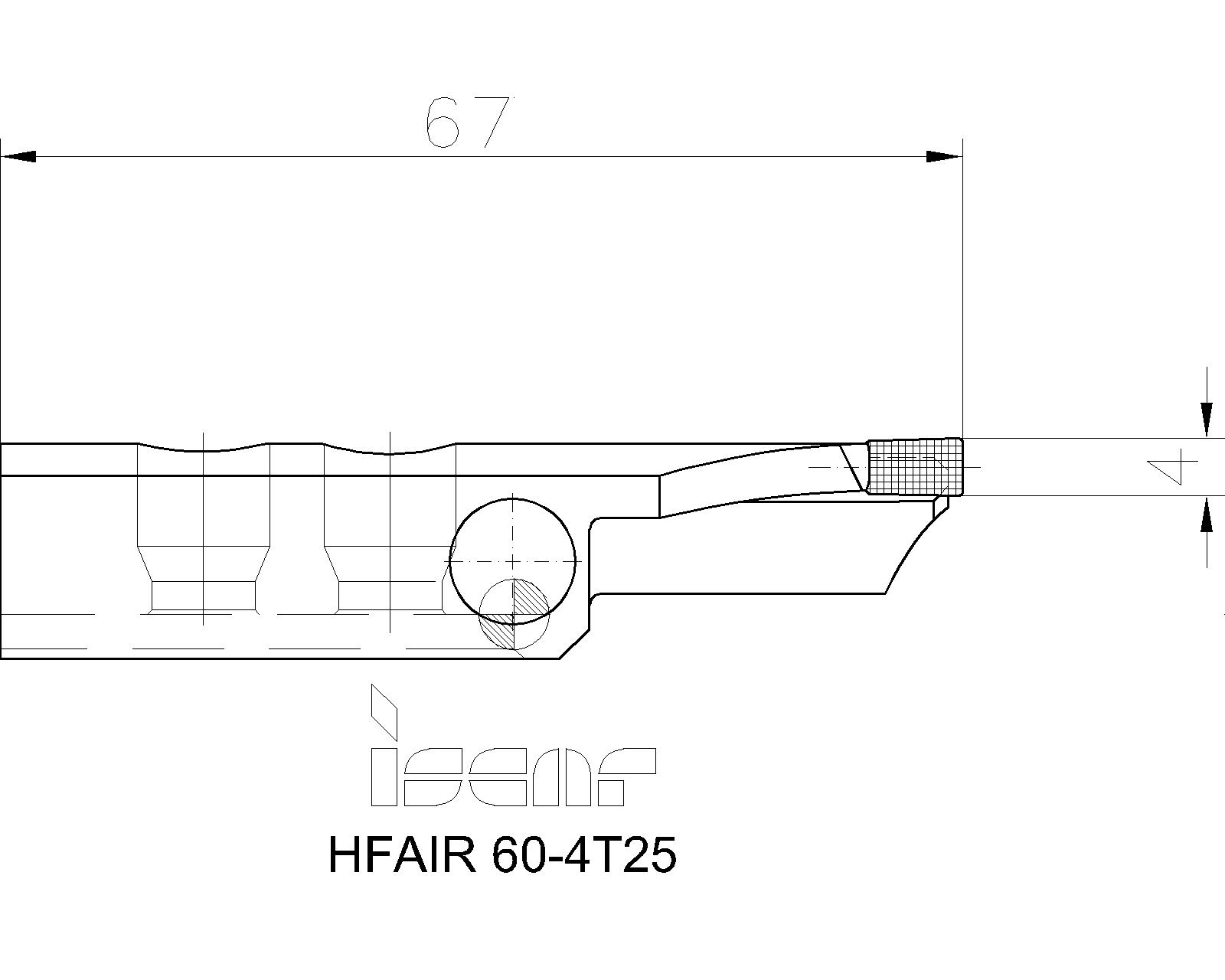

Item Designation: HFAIR 60-4T25

CDX	CW	DAXN	DAXX	OAL	WF	OHX	HAND	APMX	CSP	GICAT	GIREM	giic
25.00	4.00	60.0	75.0	67.00	15.3	33.0	R~	4.00~	~	2550073		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2550073		1	336	1896			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2550073&cat=2550073&itemDesc=HFAIR 60-4T25"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2550073', 'HFAIR 60-4T25' , 'IscarDxf' , '2550073-HFAIR 60-4T25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2550073&itemDesc=HFAIR 60-4T25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2550073&itemDesc=HFAIR 60-4T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"

Spare Parts
	7001845	SR M5X16 DIN912	Socket head cap screw	Details
	7000043	HW 4.0	Hex key	Details
