Family Designation: HFAER/L-4 Adapters for external facing along shaft. Dmin, 40 mm.
Right-hand shown

Left-hand shown
Right-hand shown

Left-hand shown

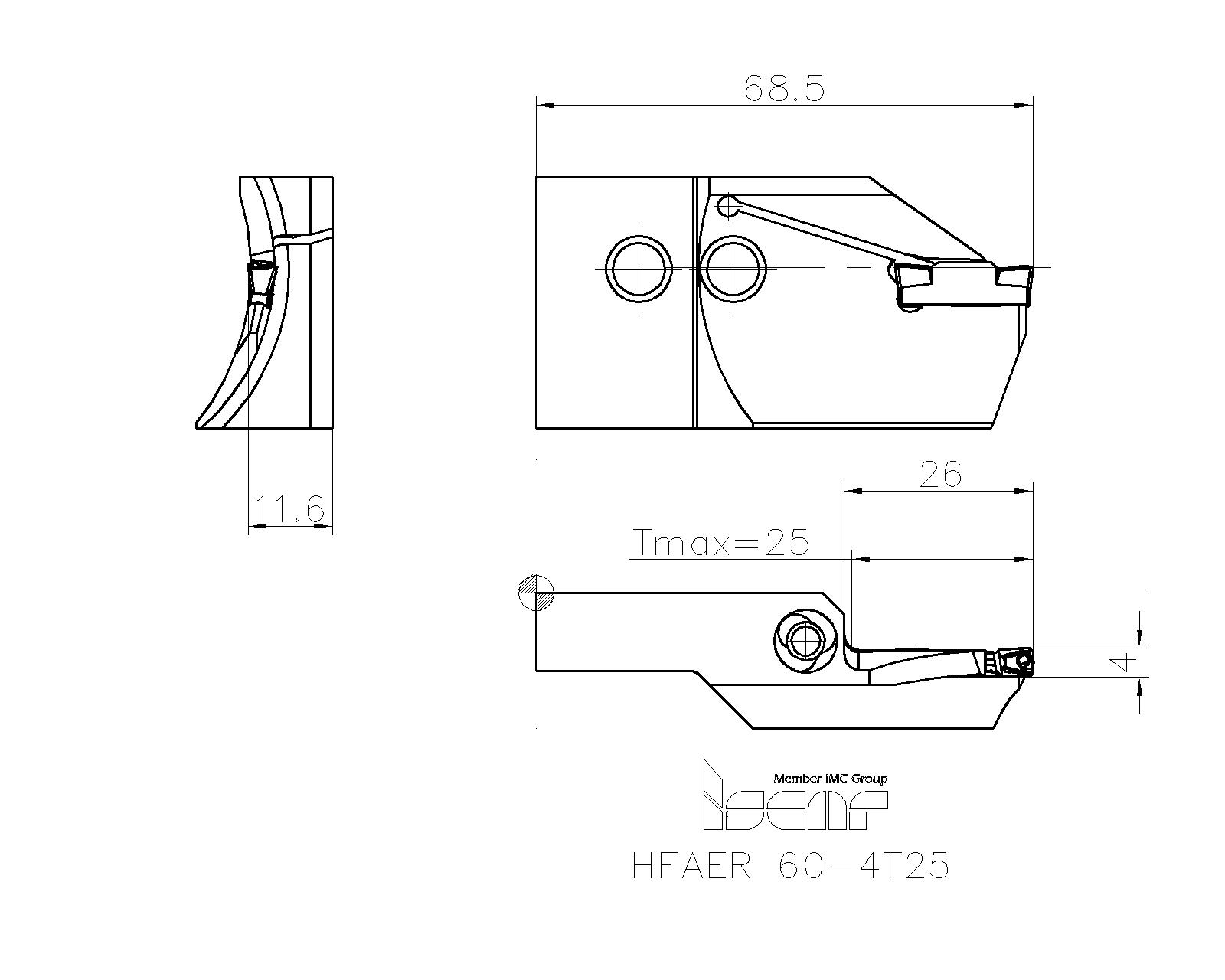

Item Designation: HFAER 60-4T25
CDX CW DAXN  DAXX  OAL OHX  WF HAND CWN  CWX  APMX CSP  GICATGIREMgiic
25.004.0060.075.068.5026.011.6R4.00~4.80~4.80~~2550076 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2550076 11256<a href="javascript:OpenDxf('2550076', 'HFAER 60-4T25' , 'IscarDxf' , '2550076-HFAER 60-4T25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2550076&itemDesc=HFAER 60-4T25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2550076&itemDesc=HFAER 60-4T25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For insert clamping instructions, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001845SR M5X16 DIN912Socket head cap screw
Details
7000043HW 4.0Hex key
Details
