ISCAR Cutting Tools - Metal Working Tools - HGAER/L-3 : 2550079

Geometry Checker ×

Family Designation: HGAER/L-3

Adapters for external facing along shafts. Dmin, 12 mm.

Right-hand shown

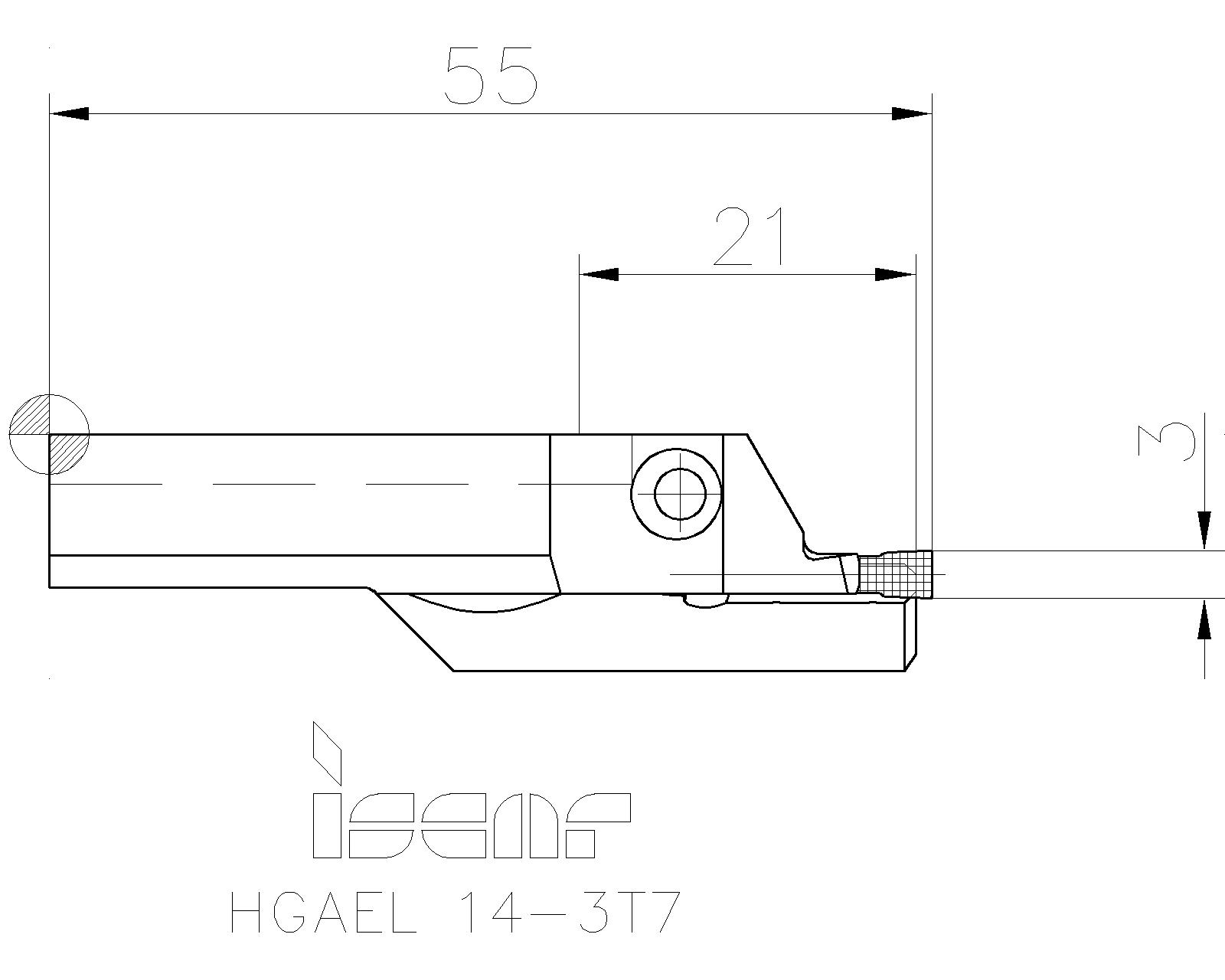

Item Designation: HGAER 14-3T7

CDX	CW	DAXN	DAXX	OHX	WF	OAL	HAND	CWN	CWX	APMX	CSP	GICAT	GIREM	giic
7.00	3.00	14.0	17.0	21.0	10.2	55.00	R	2.80~	3.20~	3.20~	~	2550079		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2550079		1	0	56				<a href="javascript:OpenDxf('2550079', 'HGAER 14-3T7' , 'IscarDxf' , '2550079-HGAER 14-3T7');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2550079&itemDesc=HGAER 14-3T7"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2550079&itemDesc=HGAER 14-3T7"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For insert clamping instructions, click on "More Info"

Spare Parts
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 N*m
	7000264	T-15/3	Torx hand driver	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
