Family Designation: HGPAD

MODULAR-GRIP adapters for turning, grooving and parting

Left-hand shown
WF(assembly)=WF(holder)+WF(adapter)

Left-hand shown

Left-hand shown
WF(assembly)=WF(holder)+WF(adapter)

Left-hand shown

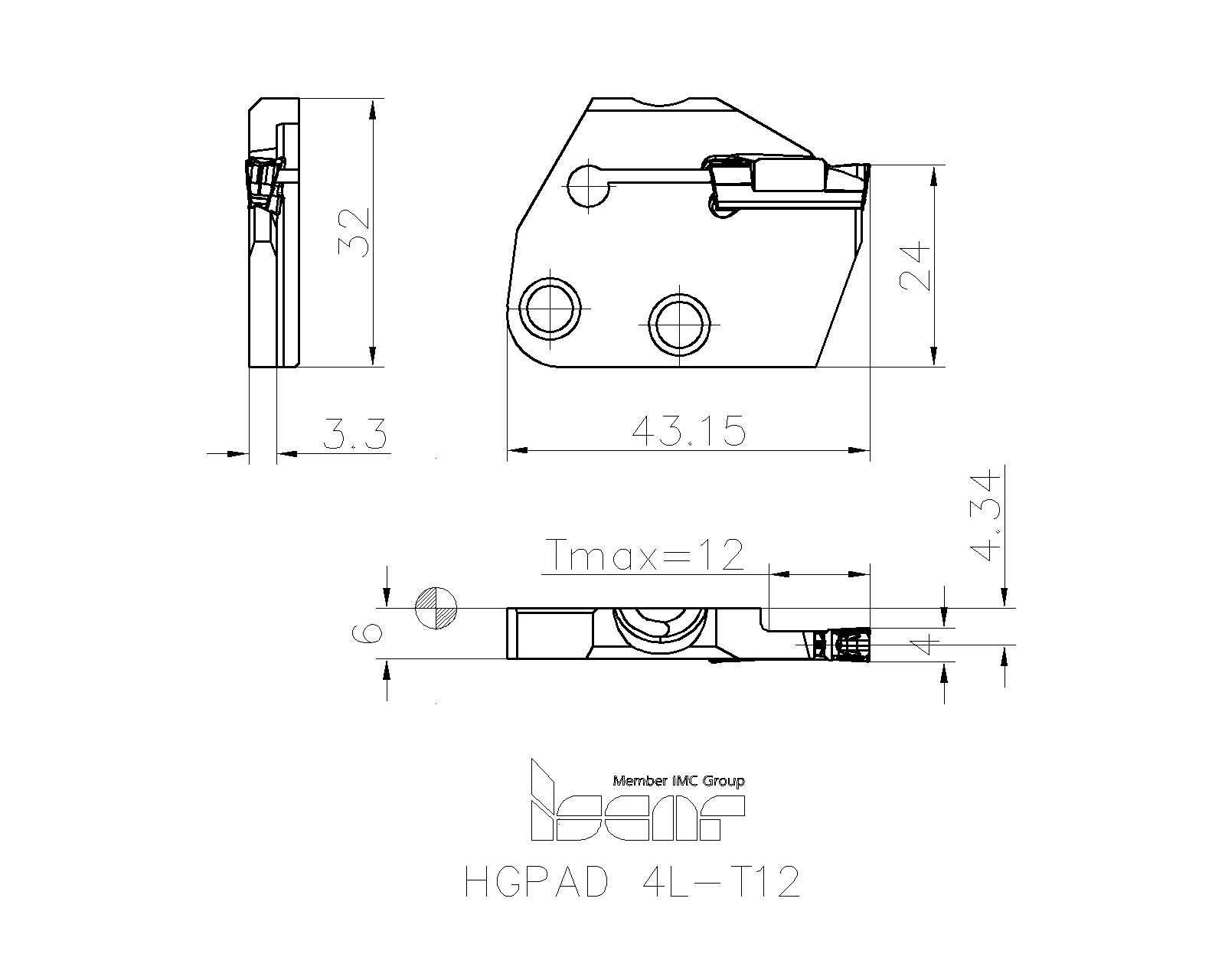

Item Designation: HGPAD 4L-T12

CWN	CWX	CDX	OHN	WF	WB	WB_2	OAL	OAH	HF	HAND	Insert	CSP	GICAT	GIREM	giic
4.00	4.76	12.00	18.7	4.40	3.30	6.0	43.20	32.0	24.0	L~	GRIP 4, DGN 4	~	2550147		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2550147		1	0	376			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2550147&cat=2550147&itemDesc=HGPAD 4L-T12"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('2550147', 'HGPAD 4L-T12' , 'IscarDxf' , '2550147-HGPAD 4L-T12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2550147&itemDesc=HGPAD 4L-T12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2550147&itemDesc=HGPAD 4L-T12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
DO-GRIP DGN, HGN inserts can be used for grooving only.
