Family Designation: HFPAD-5 Adapters for face grooving and turning in the 40-800 mm diameter range. Part of the MODULAR-GRIP system.
Left-hand shown

Left-hand shown

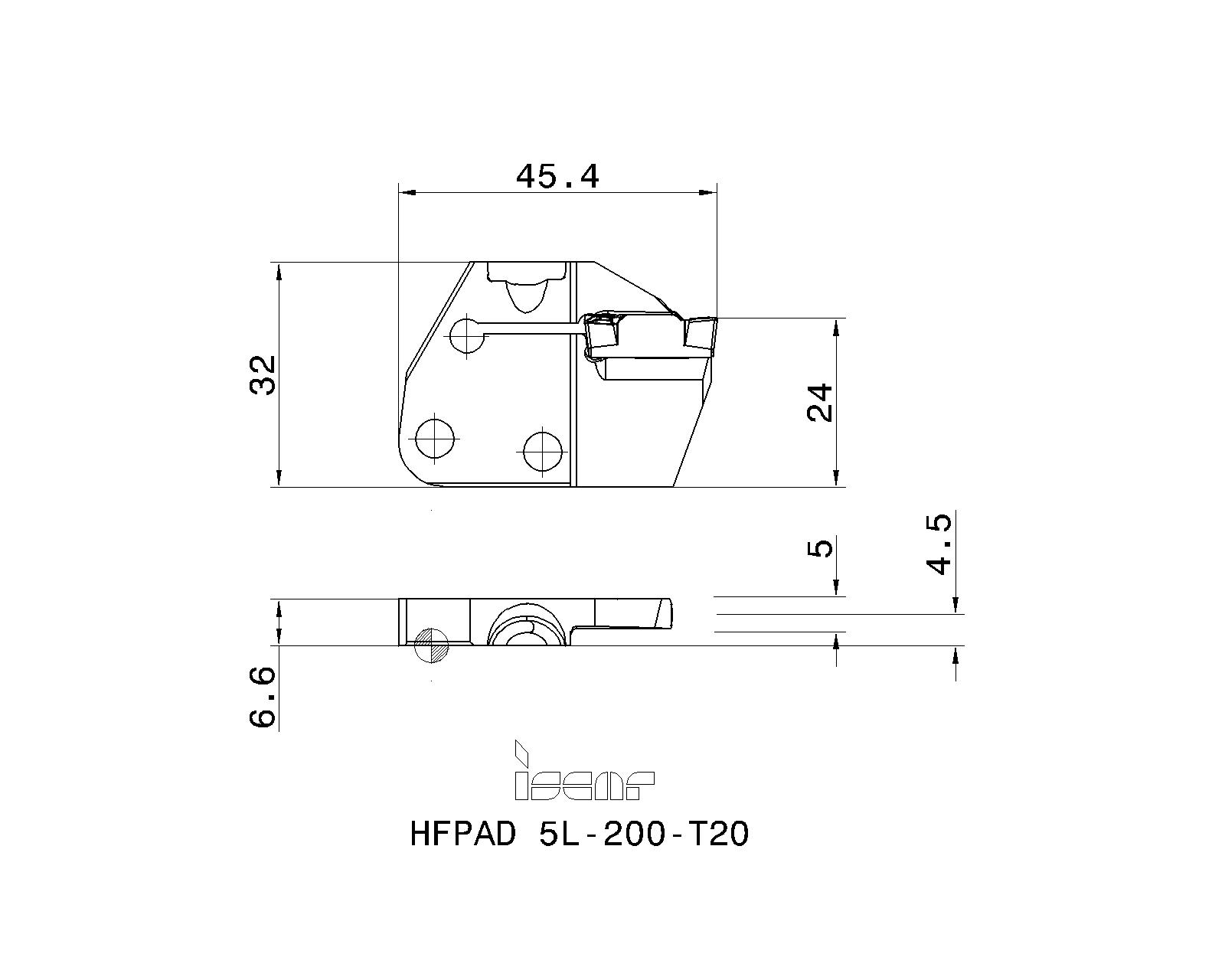

Item Designation: HFPAD 5L-200-T20
DAXN  DAXX  CW CDX OHN  WF  WB_2 OAL HF OAH HAND APMX CSP  GICATGIREMgiic
200.0800.05.0020.0021.04.506.645.5024.032.0L~5.00~~2550159 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
2550159 05920<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2550159&itemDesc=HFPAD 5L-200-T20"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2550159&itemDesc=HFPAD 5L-200-T20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2550159&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
WF(assembly)=WF(shank) + WF(adapter)
DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5..inserts with left-hand adapters
For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD.
For insert clamping instructions, click on "More Info"
