Family Designation: ECR-B3-R-C

3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum.

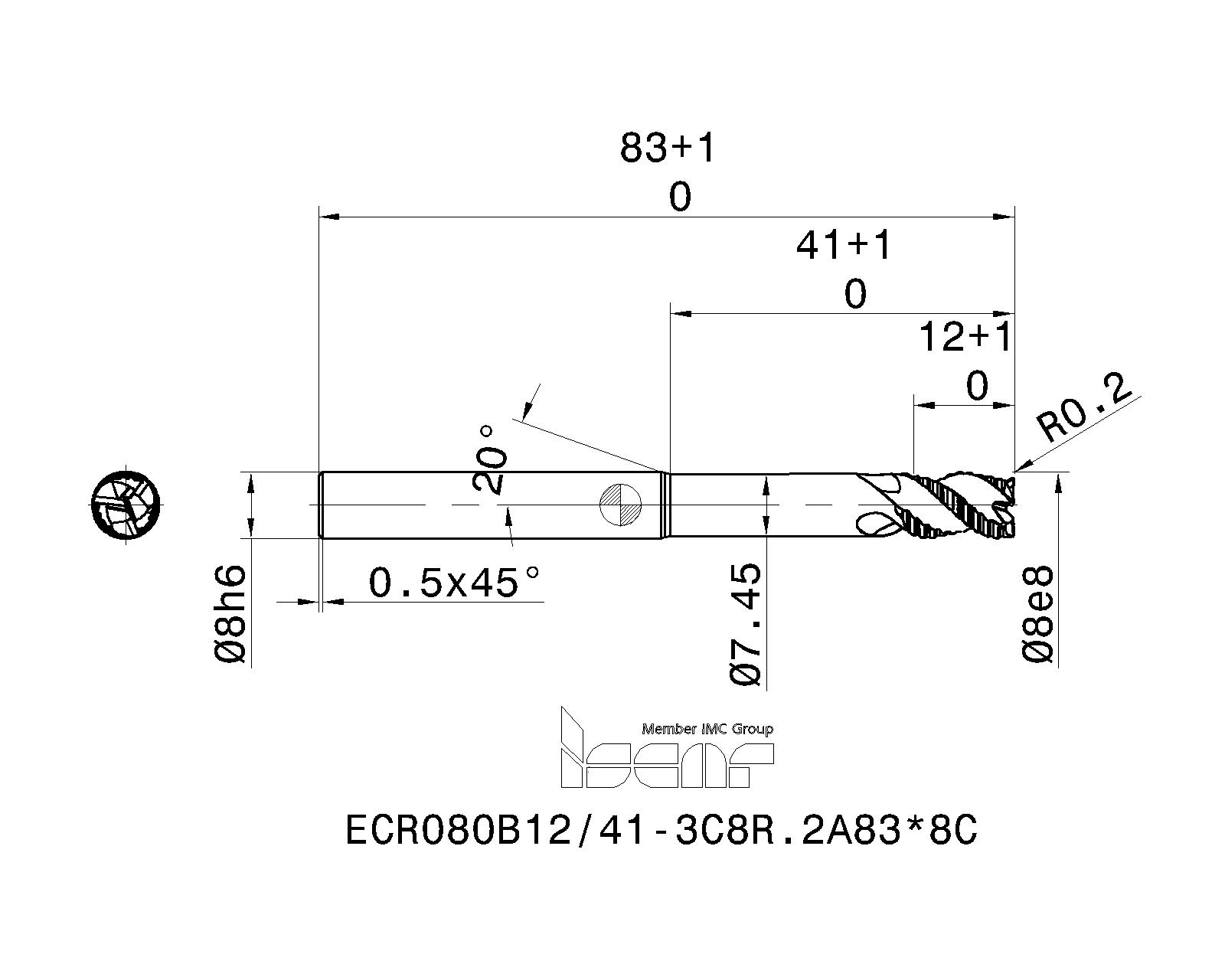

Item Designation: ECR-B3 08-12/41C08R02A83C

DC	DCONMS	LH	OAL	NOF	FHA	RMPX°	APMX	Shank	RE	fz (min)	fz (max)	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	NFMetals	CutEdMat	Coating	GICAT	GIREM	giic
8.00	8.00	41.0	83.00	3	45.0	20.0	12.00	C	0.20	0.05	0.15	ZYL01F8000h$06~	~	0~	IC08 ~	R~	90.0~	-~	Non Ferrous Metals~	Carbide~	Uncoated ~	2617185		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2617185	IC08			8	0	4			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=0&stplFolder=0&p21=2617185&cat=2617185&itemDesc=ECR-B3 08-12/41C08R02A83C"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('2617185', 'ECR-B3 08-12/41C08R02A83C' , 'IscarDxf' , '2617185-ECR-B3 08-12 41C08R02A83C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		Not Available<br /><a href="javascript:openDxfRequest('3DL','2617185', 'ECR-B3 08-12/41C08R02A83C' , 'M');">3D Required</a>	<a href="FilesDownload.aspx?FileType=P&cat=2617185&itemDesc=ECR-B3 08-12/41C08R02A83C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

3D Representation	Light Detailed	Not Available 3D Required

2D Representation	ISO	2D Required
