Family Designation: ECR-B3-R-C

3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum.

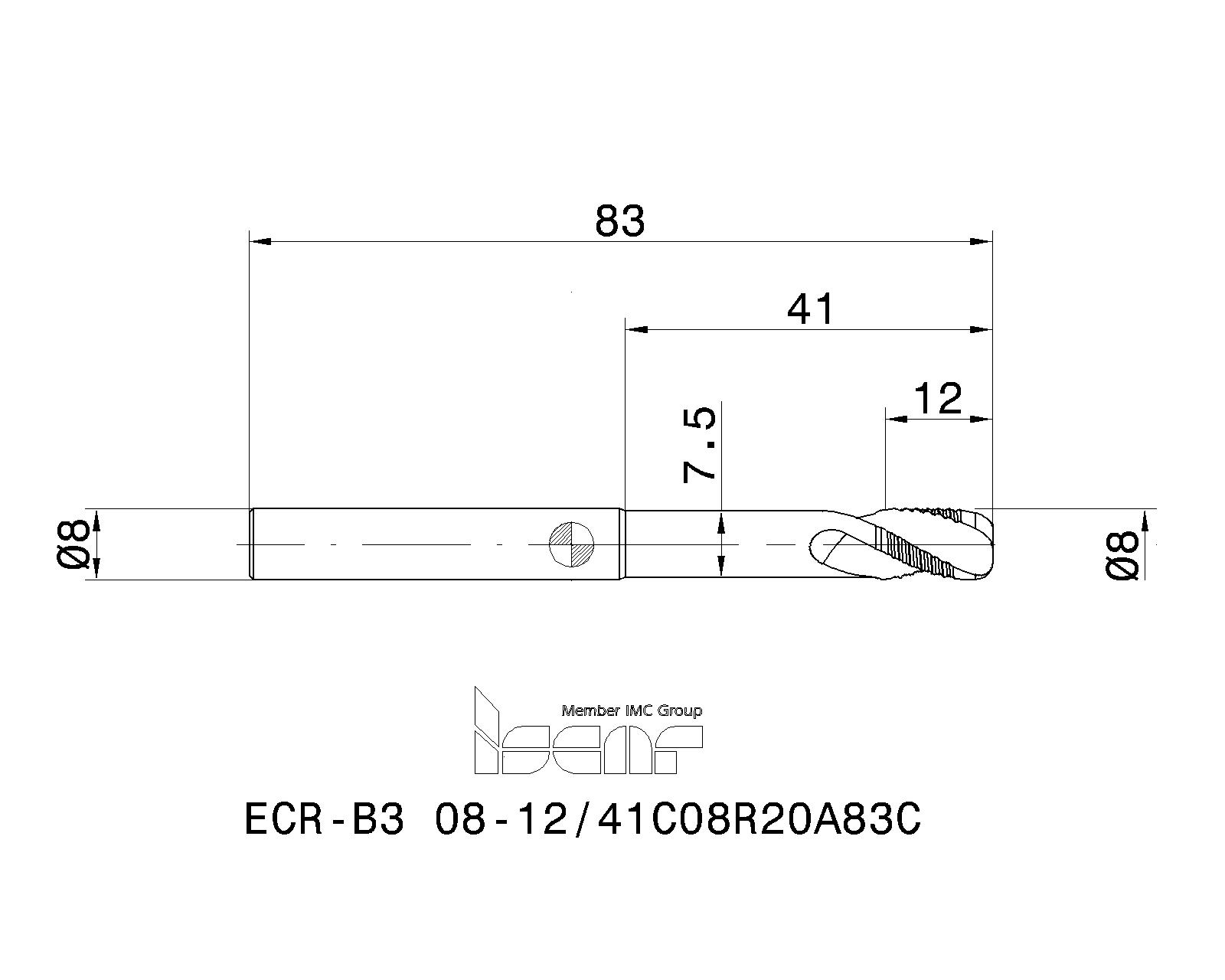

Item Designation: ECR-B3 08-12/41C08R20A83C

DC	DCONMS	LH	OAL	NOF	FHA	RMPX°	APMX	Shank	RE	fz (min)	fz (max)	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	NFMetals	CutEdMat	Coating	GICAT	GIREM	giic
8.00	8.00	41.0	83.00	3	45.0	20.0	12.00	C	2.00	0.05	0.15	ZYL01F8000h$06~	~	0~	IC08 ~	R~	90.0~	-~	Non Ferrous Metals~	Carbide~	Uncoated ~	2618638		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2618638	IC08	Alternative		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2618638&cat=2618638&itemDesc=ECR-B3 08-12/41C08R20A83C"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('2618638', 'ECR-B3 08-12/41C08R20A83C' , 'IscarDxf' , '2618638-ECR-B3 08-12 41C08R20A83C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2618638&itemDesc=ECR-B3 08-12/41C08R20A83C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2618638&itemDesc=ECR-B3 08-12/41C08R20A83C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
