Family Designation: CGHN-D Double-ended blades for external grooving and turning.


Item Designation: CGHN 26-5D
B1 CWN  CWX  OHN  OHX  HF OAL WB MIID  HAND APMX CSP  GICATGIREMgiic
26.04.406.4010.020.021.4110.004.00GIP 5.00E-0.80N~6.40~~2800004 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2800004 3096<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2800004&cat=2800004&itemDesc=CGHN 26-5D"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('2800004', 'CGHN 26-5D' , 'IscarDxf' , '2800004-CGHN 26-5D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2800004&itemDesc=CGHN 26-5D"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2800004&itemDesc=CGHN 26-5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
Use the yellow lines on blade for min. and max. overhang
When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance
When using a double-ended insert, grooving depth is limited by the insert

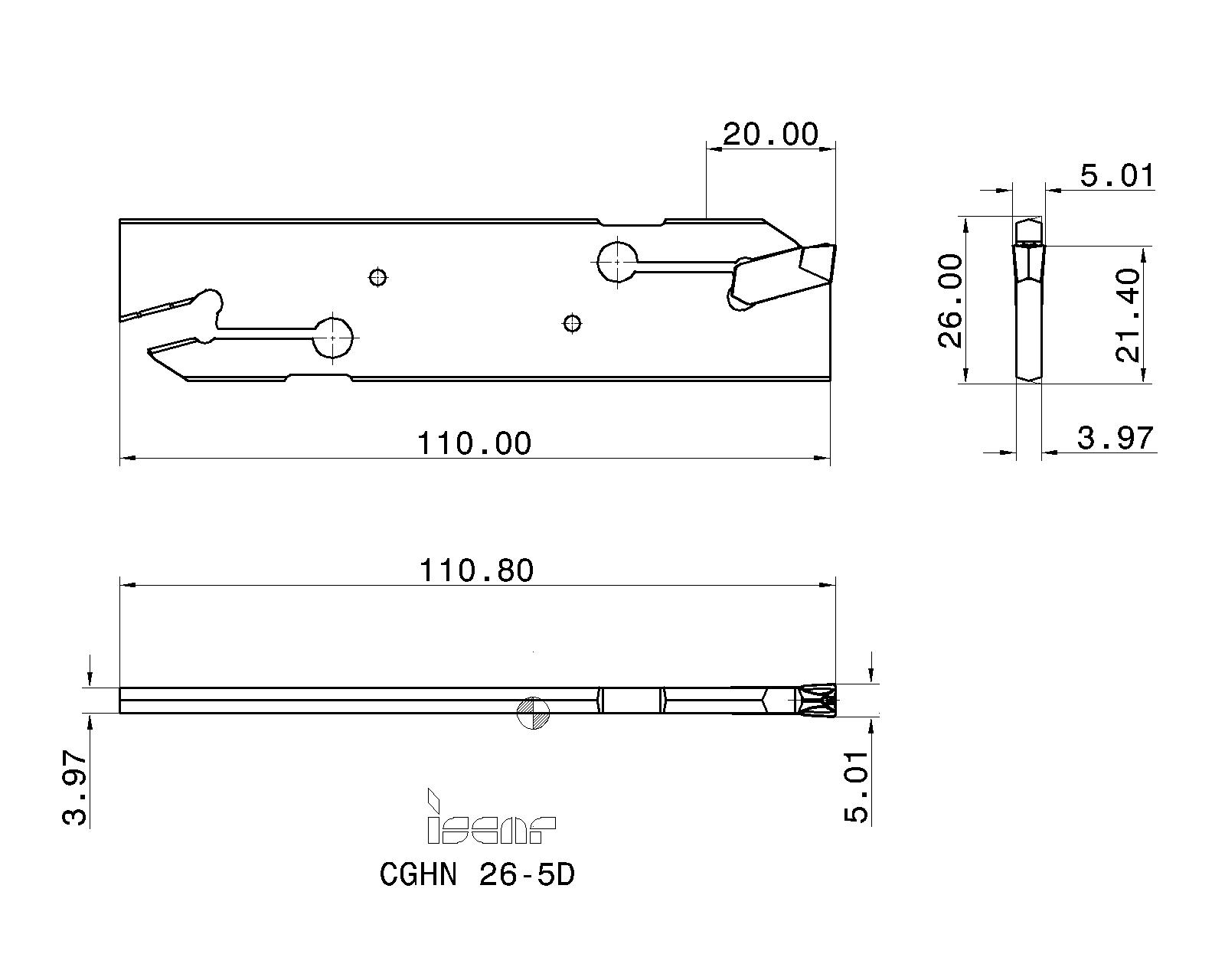

3D Representation
