Family Designation: GHGR/L External holders for deep grooving and parting
Left-hand shown

Left-hand shown

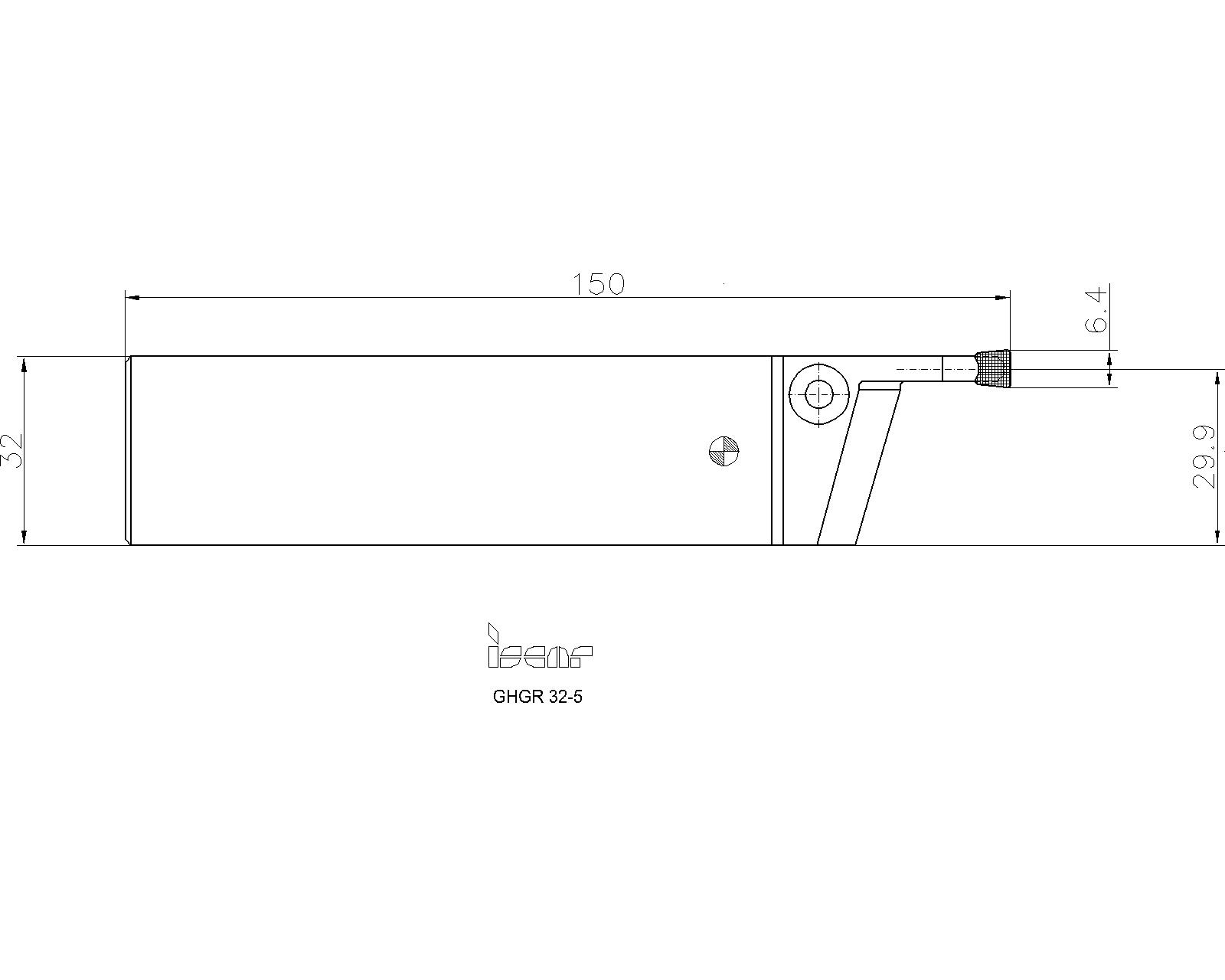

Item Designation: GHGR 32-5
CWN  CWX  CUTDIA  CDX  H HF B OAL LH WF WB HBH HAND APMX CCMS CSP  CW KAPR  GICATGIREMgiic
5.006.4050.025.00~32.032.032.0150.0041.029.904.20-R6.40~VKT01A3232~~~~2800278 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2800278 10616<a href="javascript:OpenDxf('2800278', 'GHGR 32-5' , 'IscarDxf' , '2800278-GHGR 32-5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2800278&itemDesc=GHGR 32-5"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2800278&itemDesc=GHGR 32-5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For machining depth over 13 mm, a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN)
CDX for grooving depth depends on part diameter Dmax
For grooving a part with a diameter larger than CUTDIA, click on "More Info"
For using TIP inserts, tool holder seat needs to be modified according to insert profile to ensure clearance
For key blades and adjustable torque handles information (optional), click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001841SR M6X16 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
Details
For optional key with limited tightening torque click on "More Info"
