ISCAR Cutting Tools - Metal Working Tools - UBHCR/L : 2800521

Geometry Checker ×

Family Designation: UBHCR/L

Holders for grooving, turning and parting blades.

Right-hand shown

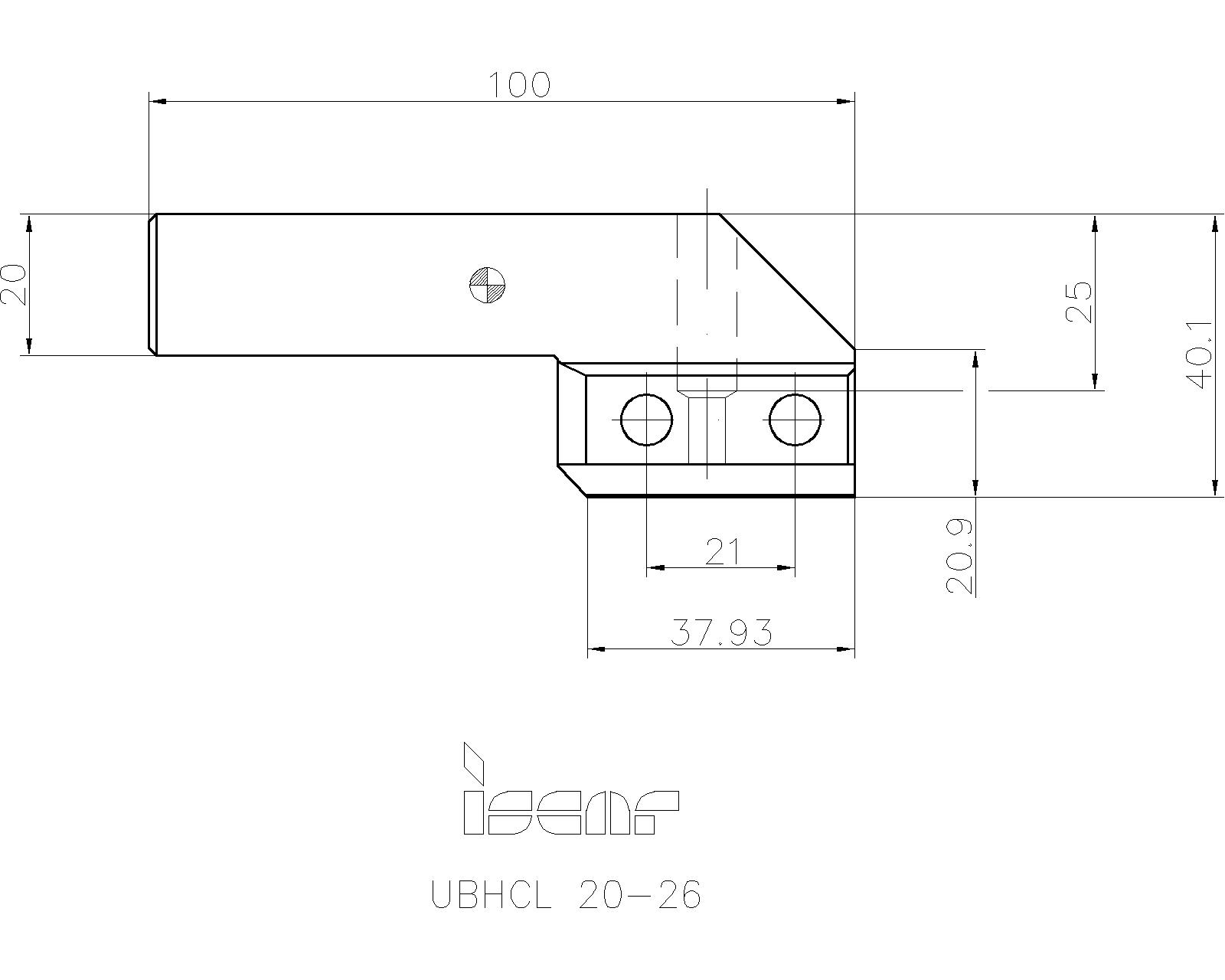

Item Designation: UBHCL 20-26

H	HTPRM	B	OAH	OAW	OAL	HAND	CSP	GICAT	GIREM	giic
20.0	26.0	20.0	42.0	35.60	100.00	L	~	2800521		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2800521		1	0	8				<a href="javascript:OpenDxf('2800521', 'UBHCL 20-26' , 'IscarDxf' , '2800521-UBHCL 20-26');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2800521&itemDesc=UBHCL 20-26"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2800521&itemDesc=UBHCL 20-26"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Choose blade by HTPRM dimension
