Family Designation: CGHN 32-M Internal grooving and turning blades for GHIC...-85 bars
CGHN 32-...M blade can be modified from external blades CGHN 32-...D

CGHN 32-...M blade can be modified from external blades CGHN 32-...D

Item Designation: CGHN 32-5M
CWN  CWX  WB WFN  WFX  OHN  OHX  HF OAL H DMIN HAND APMX CSP  GICATGIREMgiic
4.406.404.0044.055.015.026.024.882.0032.085.00N~6.40~~2800808 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2800808 10560<a href="javascript:OpenDxf('2800808', 'CGHN 32-5M' , 'IscarDxf' , '2800808-CGHN 32-5M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2800808&itemDesc=CGHN 32-5M"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2800808&itemDesc=CGHN 32-5M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
WFN-WFX and OHN-OHX are the blade's extension range
Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D). For grooving capacity, click "More Info"
When using TIP inserts,the toolholder seat needs to be modified
3D Representation
Assembly Video

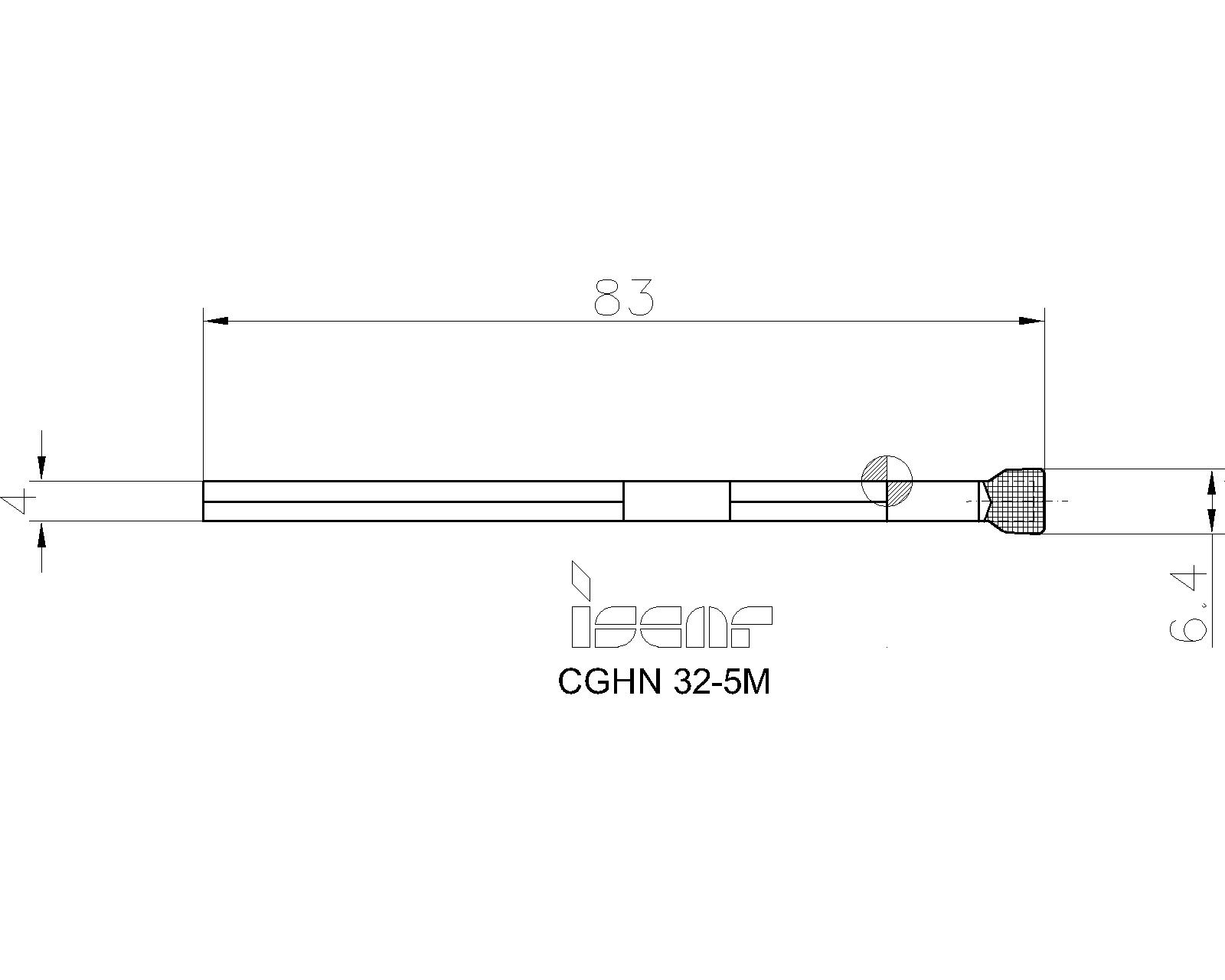

2D Representation
