Family Designation: MGSIR/L

Solid carbide bars for internal turning and threading.

Right-hand shown

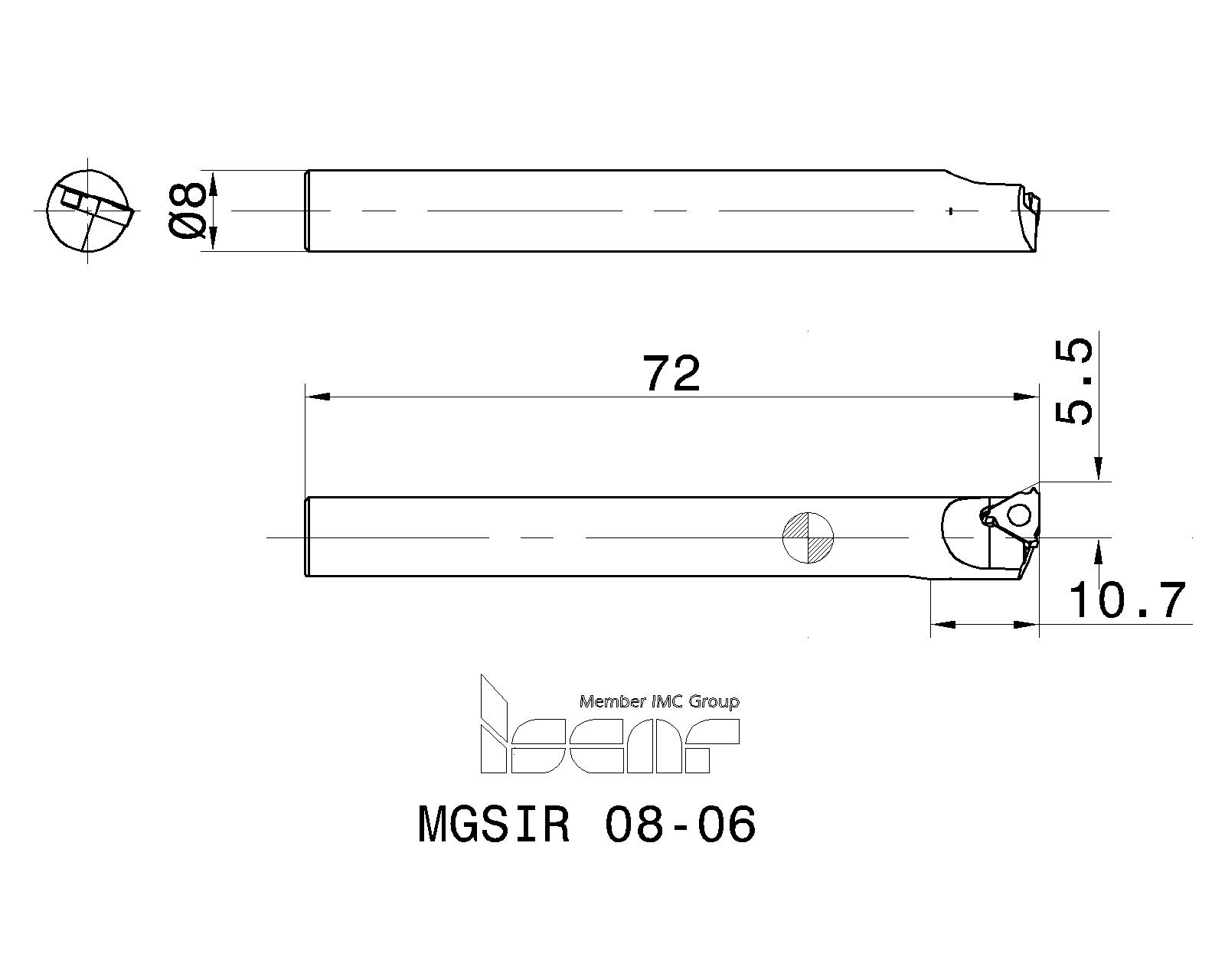

Item Designation: MGSIR 08-06

IC	DCONMS	LF	OHN	OHX	WF	DMIN	HAND	CCMS	CSP	H	KAPR	LDRED	MIID	GICAT	GIREM	giic
4.00~	8.00	72.00	20.0	56.0	5.00	9.20	R~	ZYL22F8000h$06~	~	~	91.0~	~	WBMT 060101L	2800948		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2800948		1	15	3960				<a href="javascript:OpenDxf('2800948', 'MGSIR 08-06' , 'IscarDxf' , '2800948-MGSIR 08-06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2800948&itemDesc=MGSIR 08-06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2800948&itemDesc=MGSIR 08-06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
In order to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7000427	SR 14-552	Torx screw	Details
	7000428	T-6/5	Torx key flag	Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
