Family Designation: GHIFR/L-A

8° and 10° approach angle boring bars used for facing and internal machining.

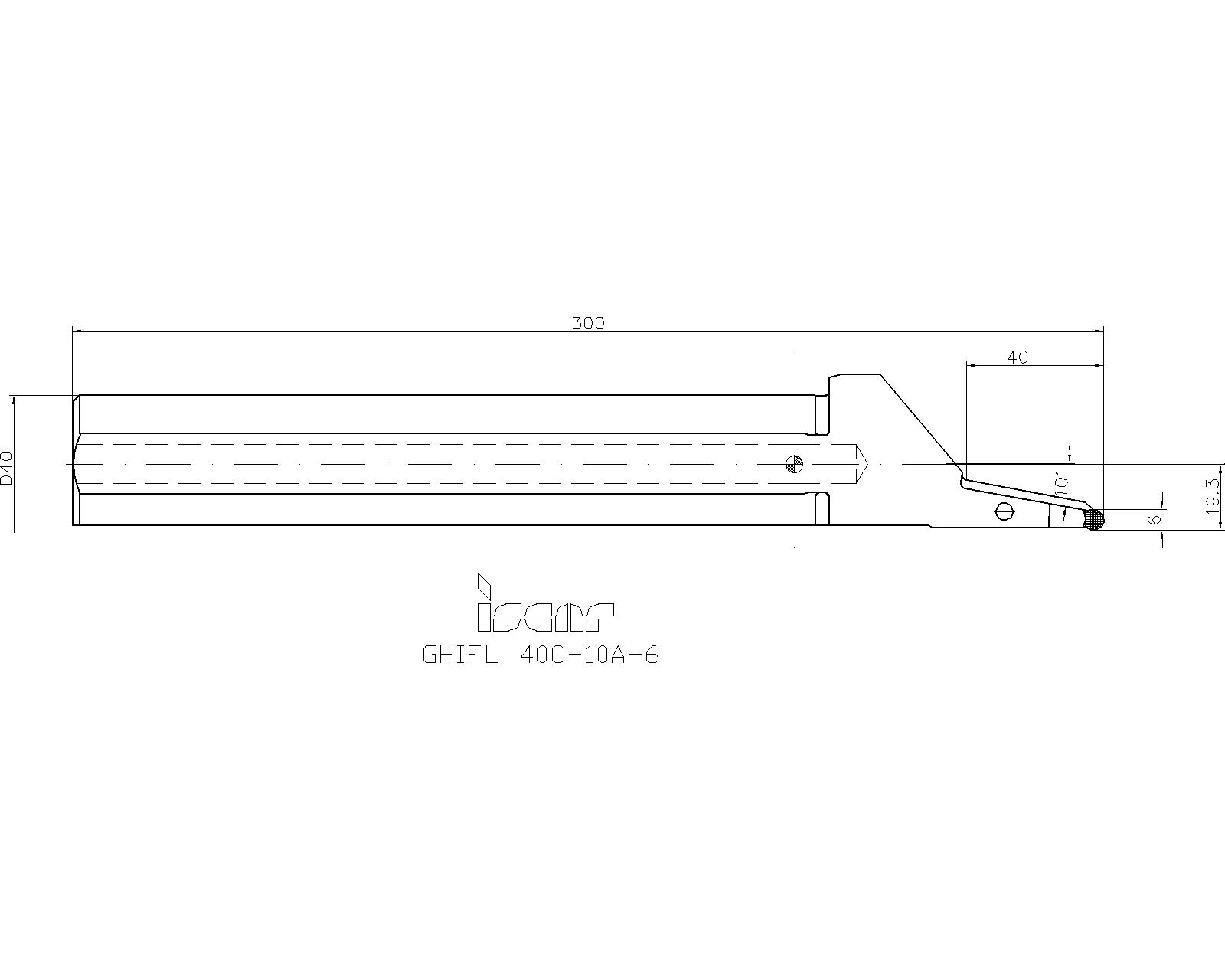

Right-hand shown

Item Designation: GHIFL 40C-10A-6

CW	DAXN	DAXX	OAL	HBL	CDX	WF	KAPR	DCONMS	RE	CSP	HAND	APMX	GICAT	GIREM	giic
6.00	300.00	360.0	300.00	80.0	40.00	19.30	10.0	40.00	3.00~	1~	L~	6.00~	2801007		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2801007		3	0	96				<a href="javascript:OpenDxf('2801007', 'GHIFL 40C-10A-6' , 'IscarDxf' , '2801007-GHIFL 40C-10A-6');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2801007&itemDesc=GHIFL 40C-10A-6"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2801007&itemDesc=GHIFL 40C-10A-6"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Upper jaw with hard coating to sustain chip deflection
