Family Designation: MAHR/L

MODULAR-GRIP holder for adapters of all GRIP systems.

Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown

Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown

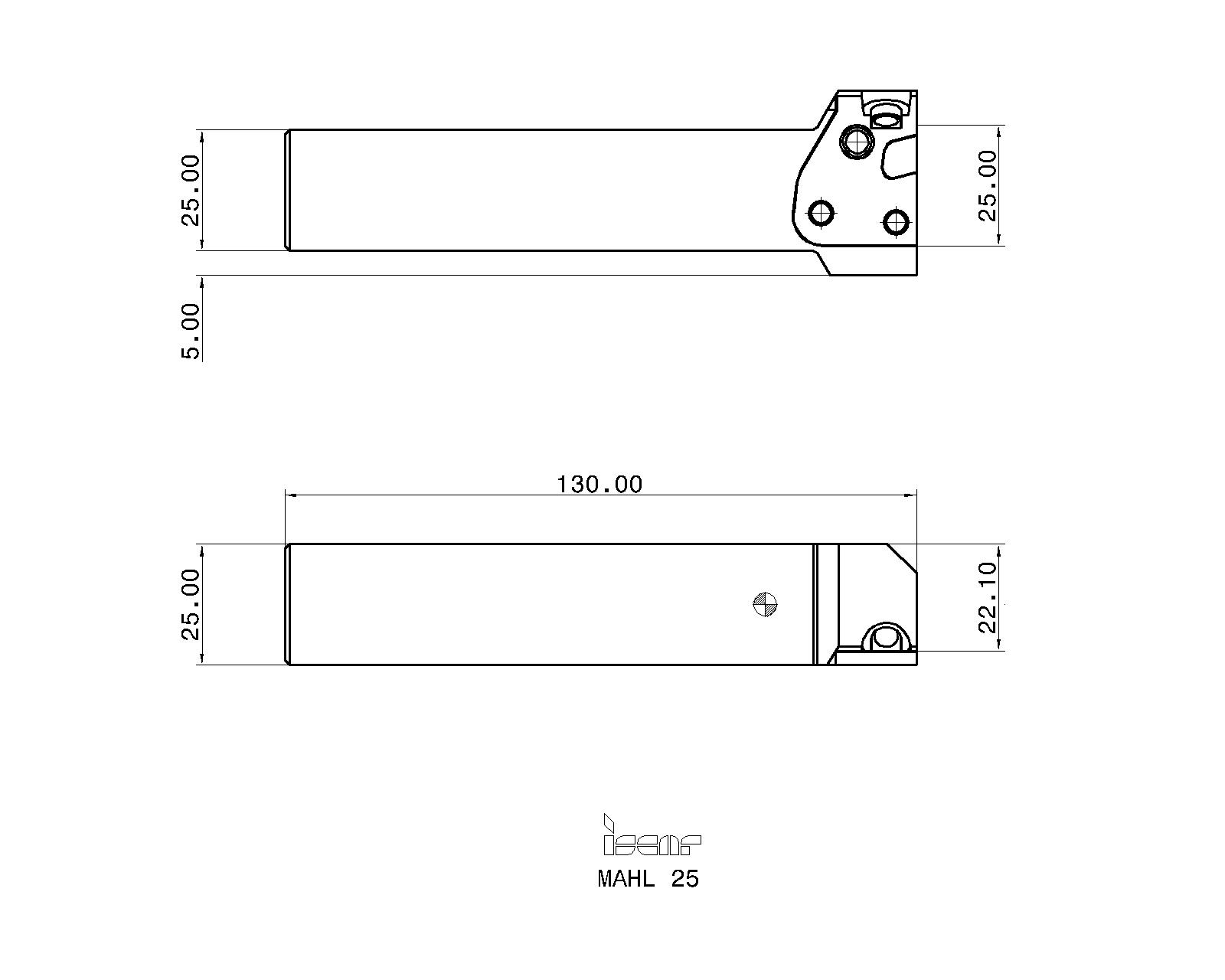

Item Designation: MAHL 25

H	B	HF	OAL	HBH	WF	HAND	CSP	GICAT	GIREM	giic
25.0	25.0	25.0	130.00	5.0	22.1	L	~	2801126		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
2801126		1	2	1888				<a href="javascript:OpenDxf('2801126', 'MAHL 25' , 'IscarDxf' , '2801126-MAHL 25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2801126&itemDesc=MAHL 25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=2801126&itemDesc=MAHL 25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For CDX, refer to the adapters data

Spare Parts
	7003565	SR M5-04451	Torx screw Lower locking screw	Details
	7000269	T-20/5	Torx key flag	Details
	7000211	SR 14-519	Torx screw	Details
Recommended tightening torque:9 N*m
	7003102	SR M6X20-XT	Socket head cap screw Upper locking screw	Details
For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
	7000045	HW 5.0	Hex key	Details
	7002673	SR M6X6DIN551 14H/22H	Socket set with flat	Details
