Geometry Checker ×

Family Designation: IM-MAHD Holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters.
CDX = See specific adapter dimensions
Right-handshown

CDX = See specific adapter dimensions
Right-handshown

 COOLANT THROUGH TOOL

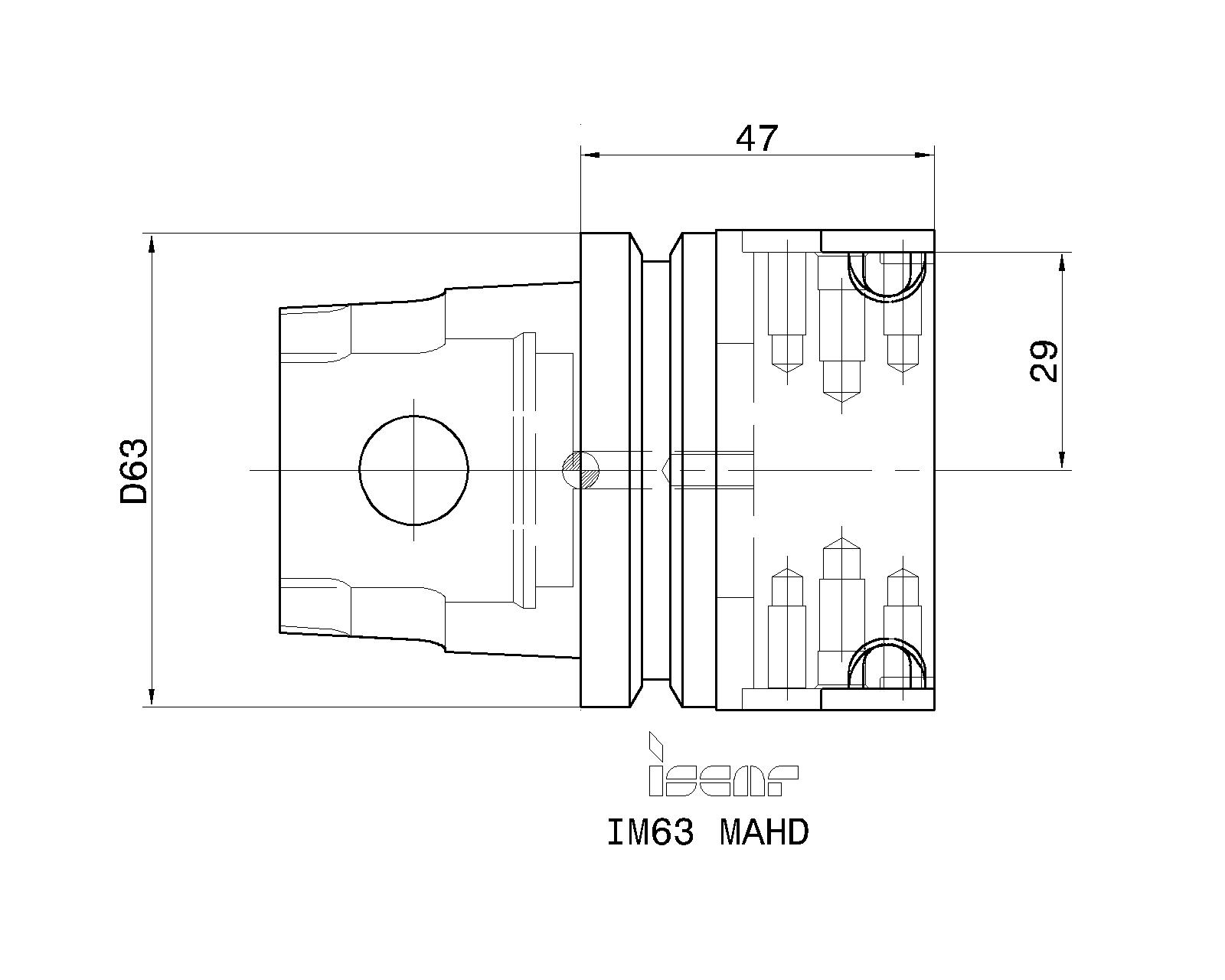

Item Designation: IM63 MAHD
DCONMS LPR WF CSP  OAL HAND CCMS DCP  GICATGIREMgiic
63.0052.0029.01~87.00~~KMT01C0630$$$$~02801370 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
2801370 3040<a href="javascript:OpenDxf('2801370', 'IM63 MAHD' , 'IscarDxf' , '2801370-IM63 MAHD');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2801370&itemDesc=IM63 MAHD"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=2801370&itemDesc=IM63 MAHD"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
(*) Tools with orientation holes in the flange groove can be supplied on request
3D Representation
Assembly Video
2D Representation
  Spare Parts
7003565SR M5-04451Torx screw
Lower locking screw
Details
7000269T-20/5Torx key flag
Details
7000211SR 14-519Torx screw
Side locking screw
Details
For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
7003102SR M6X20-XTSocket head cap screw
Upper locking screw
Details
For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
7000045HW 5.0Hex key
Details
7002673SR M6X6DIN551 14H/22HSocket set with flat
Sealing screw
Details
Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in a plastic bag
7000250SR 76-1022Torx screw
Nozzle screw
Details
7002085EZA 125Nozzle body
Nozzle
Details
7000899EZ 125Cooling nozzle
Cooling nozzle
Details
