Family Designation: GHSR/L-JHP-SL Grooving and turning tools with side lock mechanism and channels for high-pressure coolant. The tools were designed for Swiss-type and automatic machines.
Representative Image
Left-hand shown

Representative Image
Left-hand shown

 340 BAR (4900 PSI) MAX.

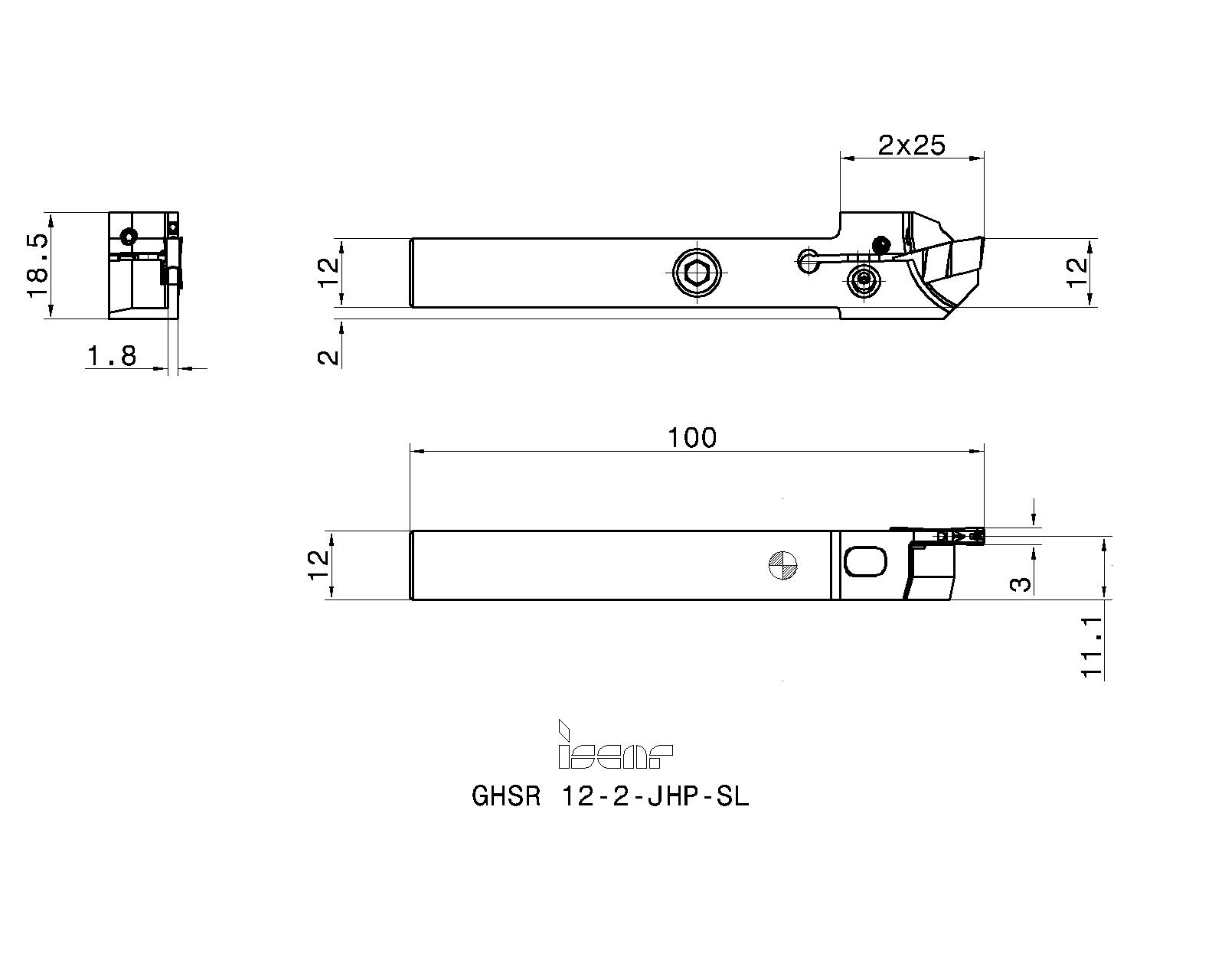

Item Designation: GHSR 12-2-JHP-SL
CWN  CWX  H B CUTDIA  OAL LH WF HBKW WB HAND APMX CCMS CDX CSP  CW HF KAPR  GICATGIREMgiic
2.203.0012.012.025.0100.0025.011.10-0.00R~3.00~VKT01A1212~~1~~12.0~2801918 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia		P21ITAStockPerUser
2801918 0800<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2801918&itemDesc=GHSR 12-2-JHP-SL"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2801918&itemDesc=GHSR 12-2-JHP-SL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2801918&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
For more details, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
4308315PIN-28128 INJPin
3387072SR M5-24145-RLTorx screw
Details
4390600SR M5X3.5PLPlug
Details
7000032HW 2.5/5Hex flag key
Details
7006620SR 5/16UNF TL360Plug
Details
7000047HW 5/32"Hex key
Details
