Family Designation: GHSR/L-JHP-SL Grooving and turning tools with side lock mechanism and channels for high-pressure coolant. The tools were designed for Swiss-type and automatic machines.
Left-hand shown

Left-hand shown

 340 BAR (4900 PSI) MAX.

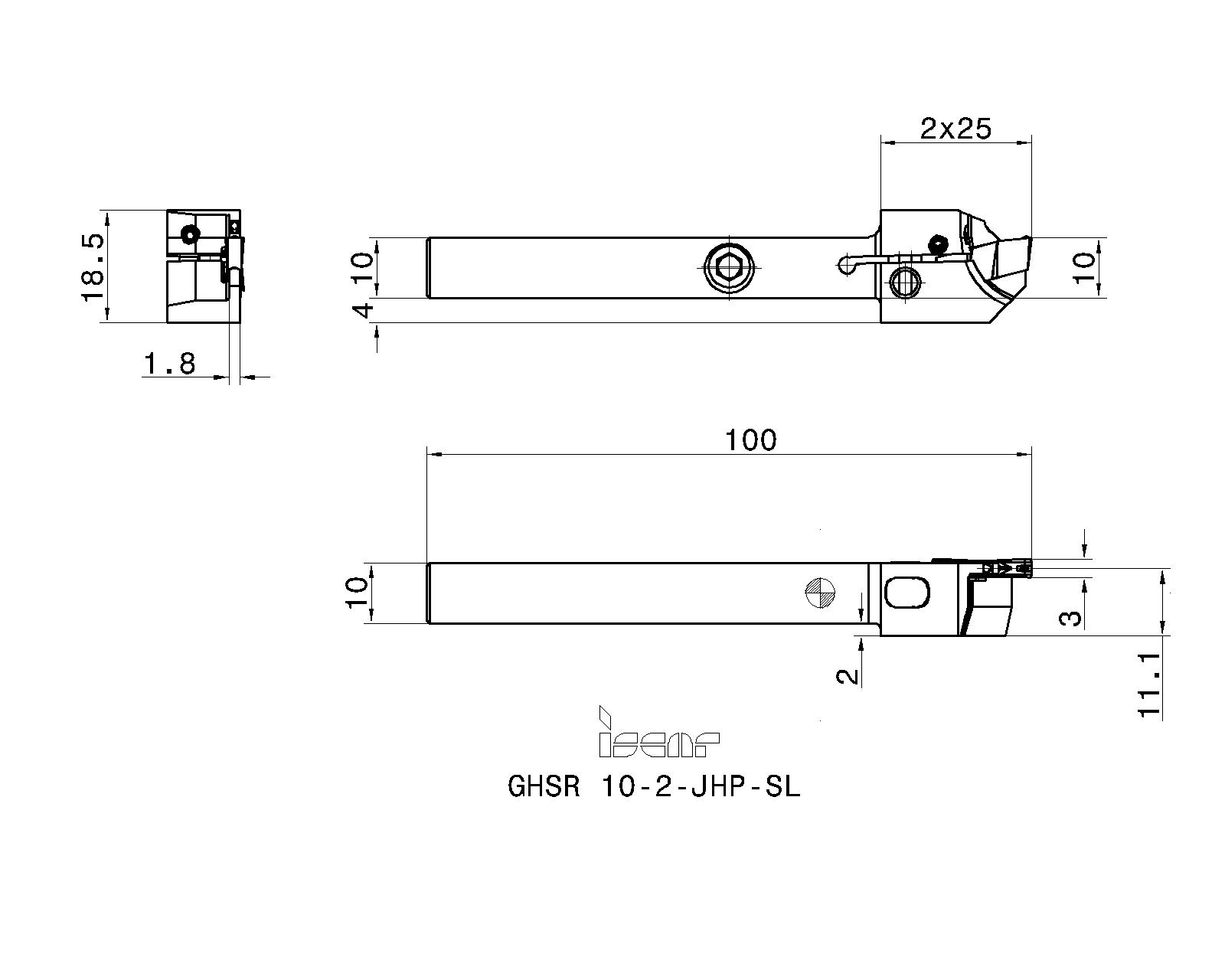

Item Designation: GHSR 10-2-JHP-SL
CWN  CWX  H B CUTDIA OAL LH WF HBKW WB HAND APMX CCMS CDX CSP  CW HF KAPR  GICATGIREMgiic
2.203.0010.010.020.0100.0025.09.102.21.80R~3.00~VKT01A1010~~1~~10.0~2801921 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2801921 302<a href="javascript:OpenDxf('2801921', 'GHSR 10-2-JHP-SL' , 'IscarDxf' , '2801921-GHSR 10-2-JHP-SL');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2801921&itemDesc=GHSR 10-2-JHP-SL"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2801921&itemDesc=GHSR 10-2-JHP-SL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For more details, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
4308315PIN-28128 INJPin
4305938SR M5-24145Torx screw
Details
4390600SR M5X3.5PLPlug
Details
7000032HW 2.5/5Hex flag key
Details
7006620SR 5/16UNF TL360Plug
Details
7000047HW 5/32"Hex key
Details
