Family Designation: MAHR/L-JHP-MC Holders with Bottom Inlets for high-pressure coolant channels carrying MODULAR-GRIP adapters. The holders were designed to be clamped in VDI shank tool holders with bottom coolant-fed tools.

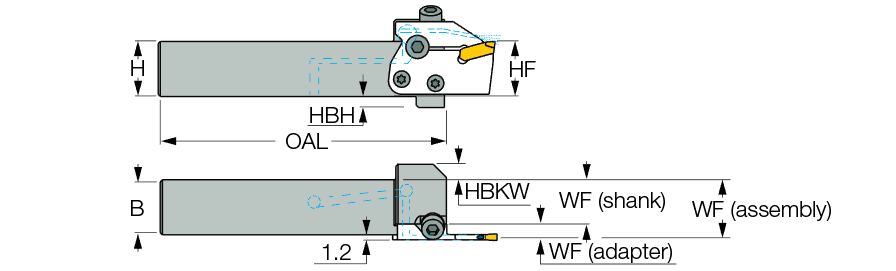

Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown
Left-hand shown
WF(assembly)=WF(shank)+WF(adapter)

Right-hand shown
 340 BAR (4900 PSI) MAX.
Item Designation: MAHR 25-JHP-MC
H B OAL HBH WF  HBKW HAND HF CSP  GICATGIREMgiic
25.025.098.005.019.0-R~25.01~2802113 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
2802113 10208<a href="javascript:OpenDxf('2802113', 'MAHR 25-JHP-MC' , 'IscarDxf' , '2802113-MAHR 25-JHP-MC');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2802113&itemDesc=MAHR 25-JHP-MC"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=2802113&itemDesc=MAHR 25-JHP-MC"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
For CDX, refer to the adapters data.
3D Representation
Assembly Video

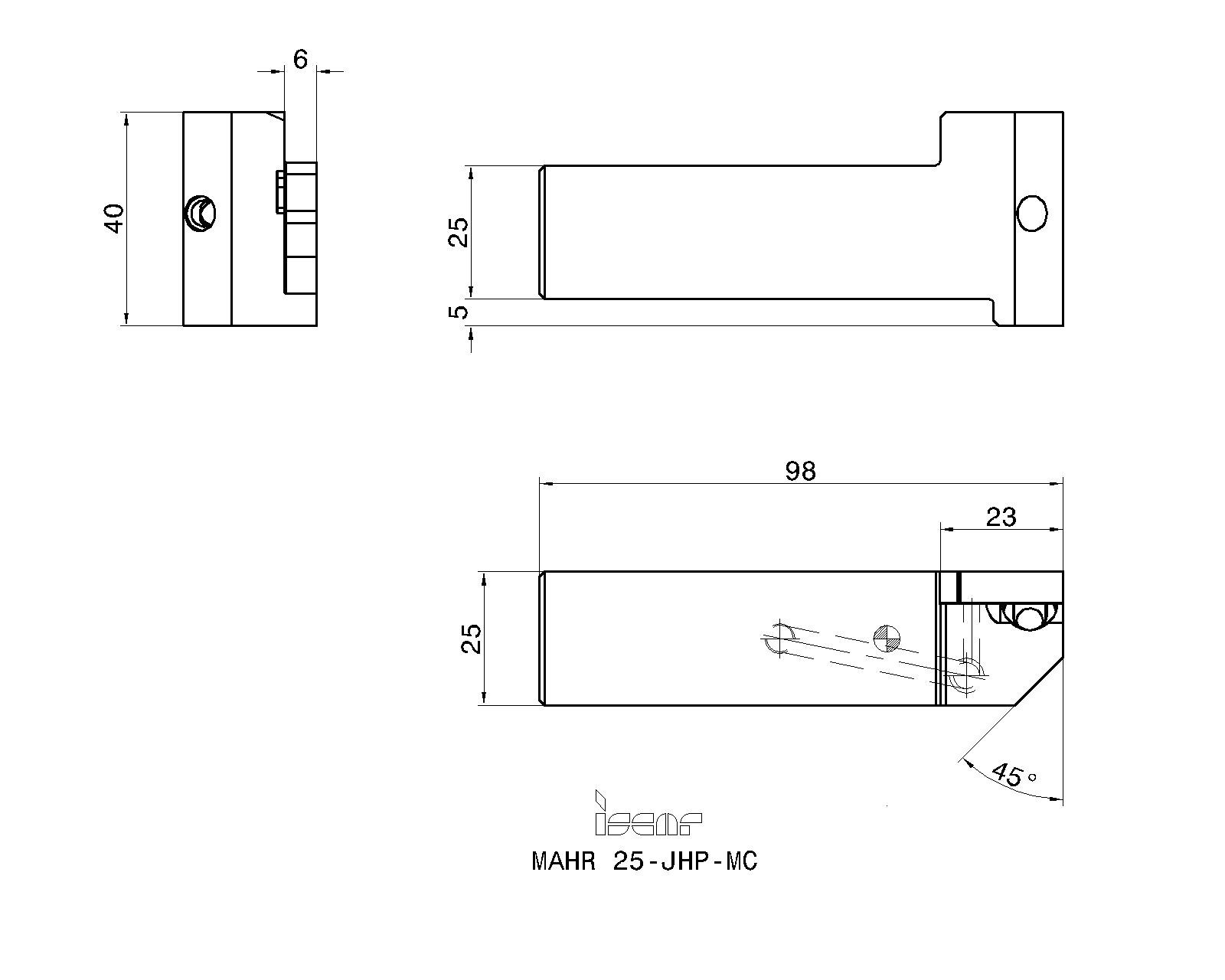

2D Representation
  Spare Parts
7003102SR M6X20-XTSocket head cap screw
Details
7000045HW 5.0Hex key
Details
7003565SR M5-04451Torx screw
Details
7000269T-20/5Torx key flag
Details
7006317SR M6X12DIN6912Socket head cap screw
Details
7000931OR 5X1NO-ring
