Family Designation: Anti-Vibration Blades Anti-vibration blades for deep grooving and turning.


 COOLANT THROUGH TOOL
Item Designation: CGHNM 53-P8-AV
CWN  CWX  CW OHX  CDX  WB HF B1 OAL Insert HAND APMX CSP  GICATGIREMgiic
8.008.008.00~100.093.00 7.4045.052.6235.00GIMY/F/MM 8N0.00~1~2802140 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
2802140 48960<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2802140&itemDesc=CGHNM 53-P8-AV"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2802140&itemDesc=CGHNM 53-P8-AV"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2802140&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
Apply 10 bar minimum cooling pressure.
3D Representation
Assembly Video

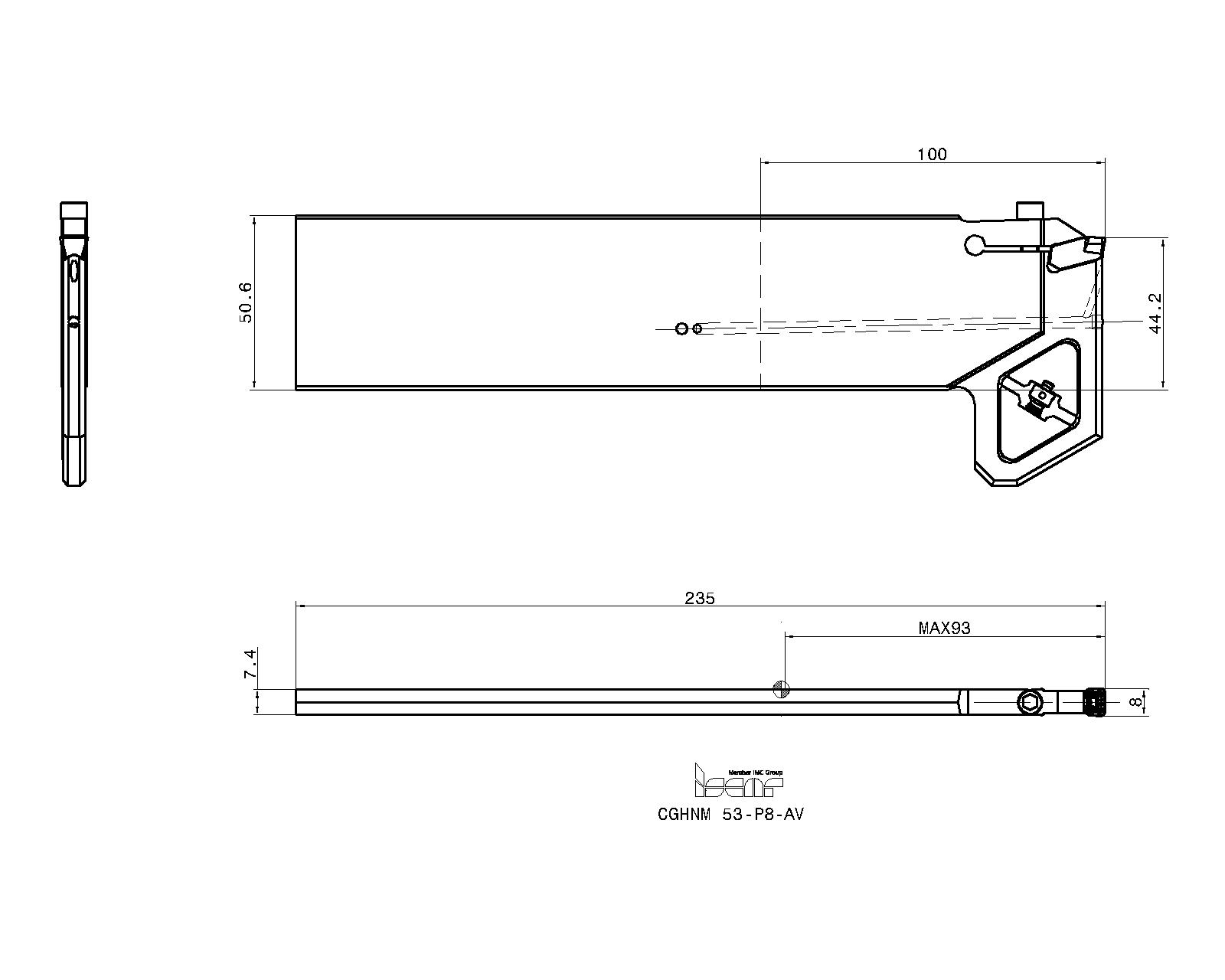

2D Representation
  Spare Parts
4300435SGCU 341Cooling tube
Details
3314386OR 30X3 NBRO-ring
Details
7000428T-6/5Torx key flag
Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
4300255SGC 340Sealing screw
7000043HW 4.0Hex key
Details
