Family Designation: C#-GHDR/L External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Right-hand shown

Right-hand shown

 COOLANT THROUGH TOOL
Item Designation: C4 GHDL-3
CWN  CWX  DCONMS CDX  LF WF L HAND OAL CP  CSP  CCMS CICT  CUTDIA DCP  DMIN LDRED LU GICATGIREMgiic
2.804.0040.009.0055.0020.0015.30~L~79.00~1001~CCS01C0400$$$$~1~-~1-~-~-~2891398 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
2891398 0320<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=2891398&itemDesc=C4 GHDL-3"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=2891398&itemDesc=C4 GHDL-3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=2891398&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
When using GPV and TIP inserts, toolholder must be modified according to insert profile to ensure clearance
To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
3D Representation
Assembly Video

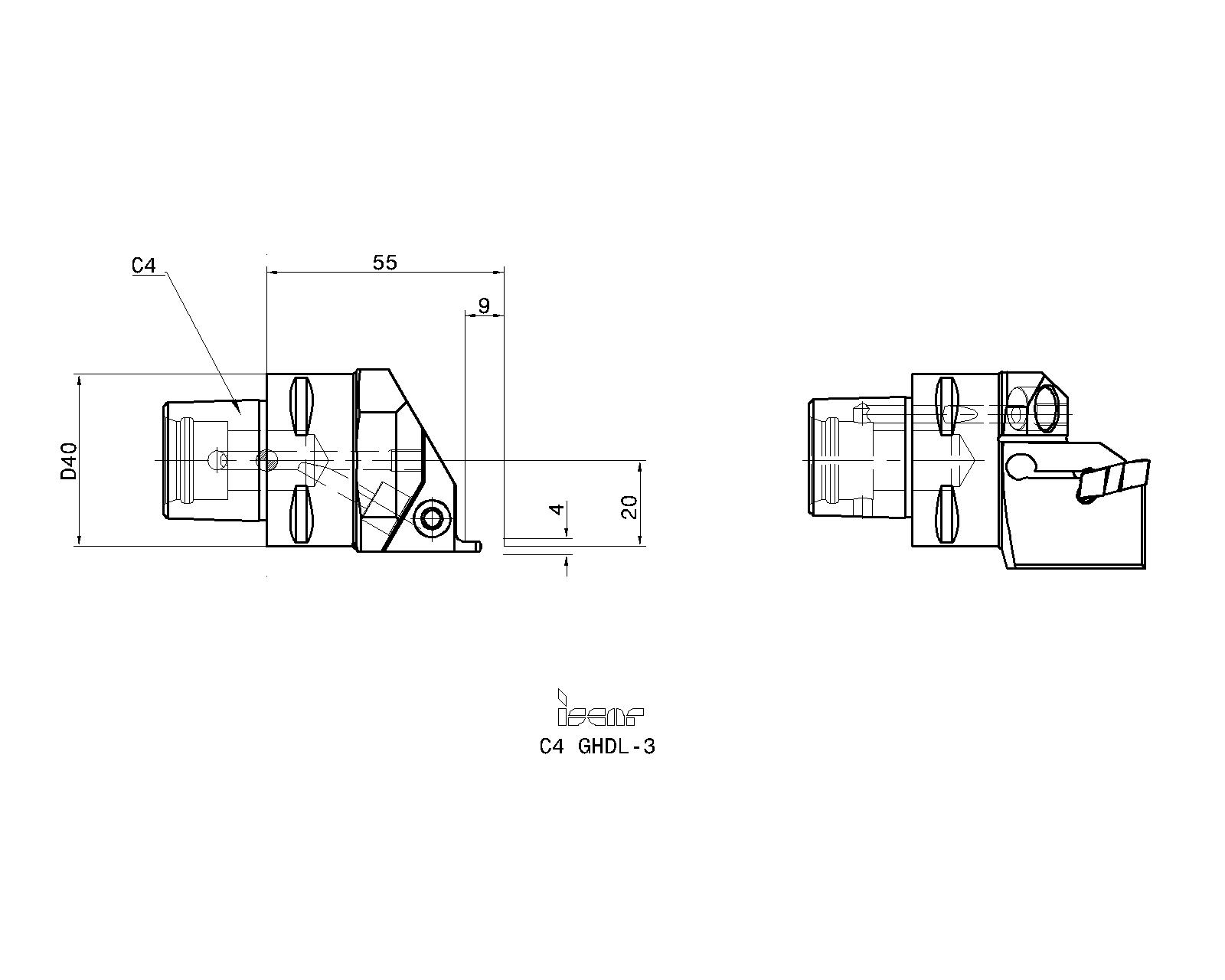

2D Representation
  Spare Parts
7001846SR M5X20DIN912Socket head cap screw
Details
7000043HW 4.0Hex key
Details
For optional key with limited tightening torque click on "More Info"
7000898EZ 104Cooling nozzle
Details
