Family Designation: C#-MAHPD Perpendicular holders with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying MODULAR-GRIP adapters for parting, grooving, turning and facing.
CDX = See specific adapter dimensions

CDX = See specific adapter dimensions

 COOLANT THROUGH TOOL

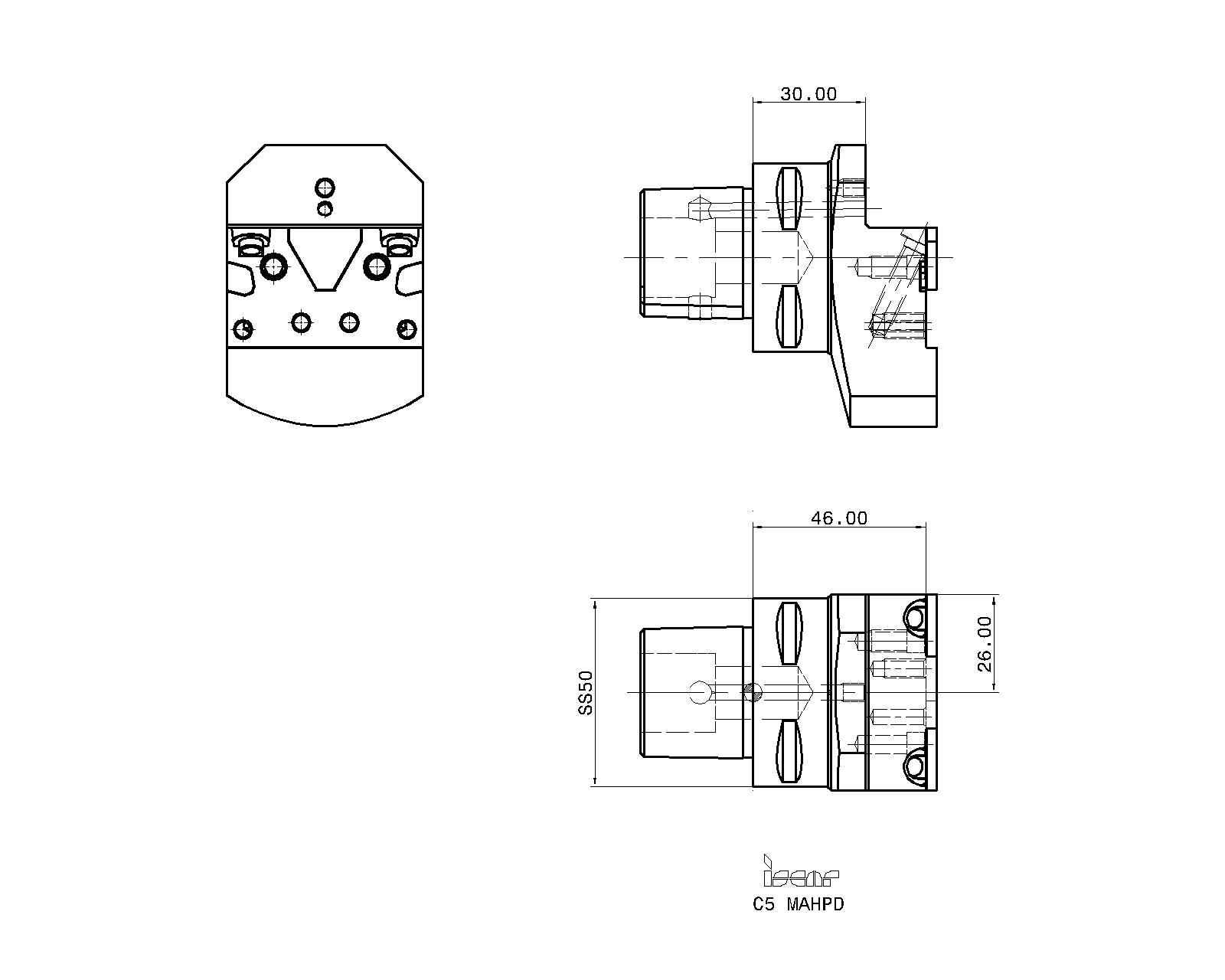

Item Designation: C5 MAHPD
DCONMS LPR WF CDI  CP  CSP  OAL GICATGIREMgiic
50.0046.0026.0011001~78.90~2891683 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2891683 149<a href="javascript:OpenDxf('2891683', 'C5 MAHPD' , 'IscarDxf' , '2891683-C5 MAHPD');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2891683&itemDesc=C5 MAHPD"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=2891683&itemDesc=C5 MAHPD"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7003565SR M5-04451Torx screw
Lower locking screw		Details
7000269T-20/5Torx key flag
Torx key flag		Details
7000211SR 14-519Torx screw
Side locking screw		Details
For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
7003102SR M6X20-XTSocket head cap screw
Upper locking screw		Details
For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
7000045HW 5.0Hex key
Hex key		Details
7002673SR M6X6DIN551 14H/22HSocket set with flat
Sealing screw		Details
Used to prevent chips from entering the upper locking screw hole
7000899EZ 125Cooling nozzle
Cooling nozzle		Details
7000250SR 76-1022Torx screw
Nozzle screw		Details
4305903EZA-21414Nozzle body
Nozzle
