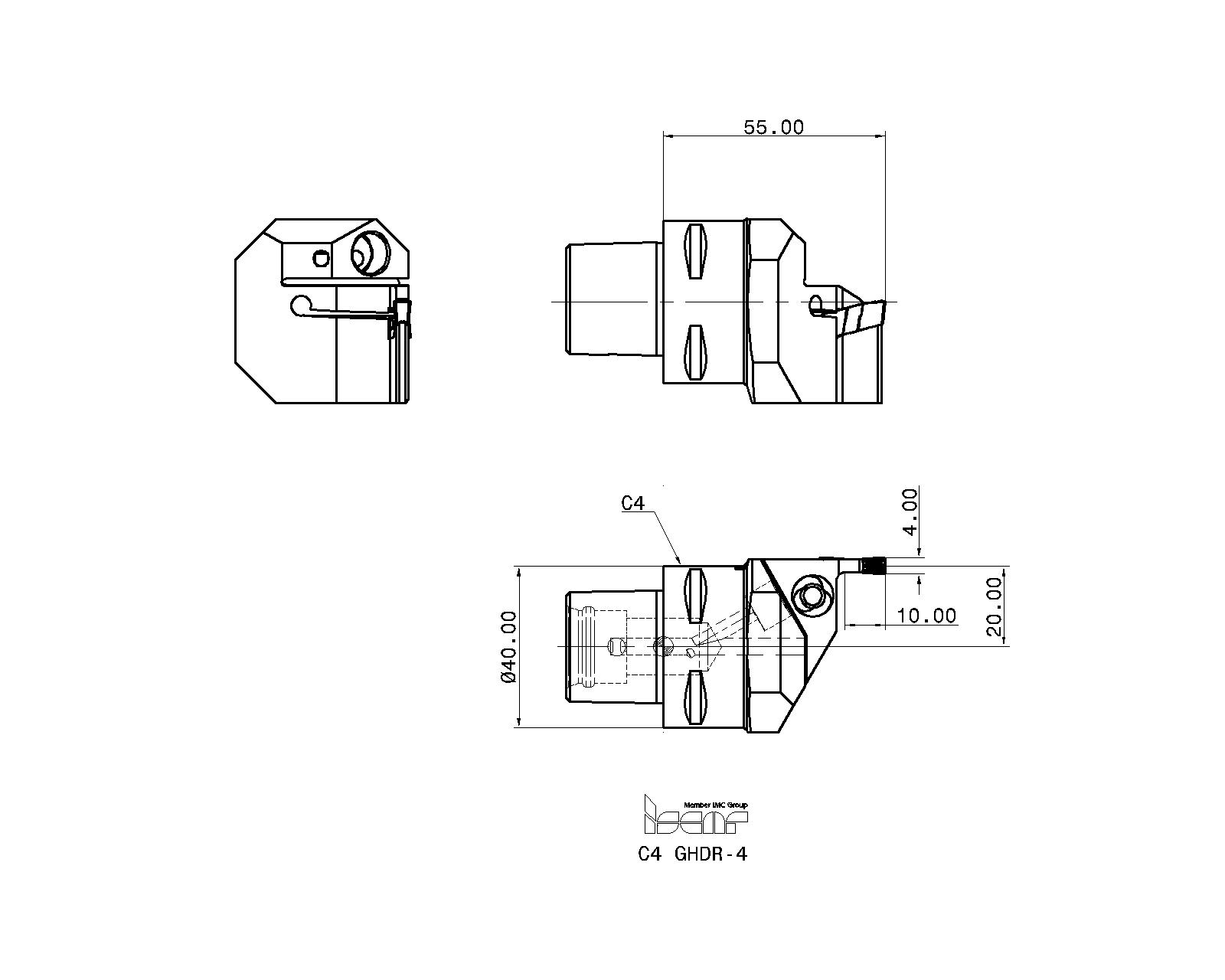

Family Designation: C#-GHDR/L External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
Right-hand shown

Right-hand shown

 COOLANT THROUGH TOOL
Item Designation: C4 GHDR-4
CWN  CWX  DCONMS CDX  LF WF L HAND OAL CP  CSP  CCMS CDI  CICT  CUTDIA DMIN LDRED LU GICATGIREMgiic
4.005.0040.0010.0055.0020.0015.30~R~79.00~1001~CCS01C0400$$$$~11~-~-~-~-~2893525 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
2893525 10176<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=2893525&cat=2893525&itemDesc=C4 GHDR-4"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('2893525', 'C4 GHDR-4' , 'IscarDxf' , '2893525-C4 GHDR-4');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=2893525&itemDesc=C4 GHDR-4"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=2893525&itemDesc=C4 GHDR-4"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
When using GPV and TIP inserts, toolholder must be modified according to insert profile to ensure clearance
To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
3D Representation
2D Representation
  Spare Parts
7001842SR M6X20 DIN912Socket head cap screw
Details
7000045HW 5.0Hex key
Details
For optional key with limited tightening torque click on "More Info"
7000898EZ 104Cooling nozzle
