Family Designation: CM D08-20 Ball nose endmills D=8-20 mm (HELIBALL).


Item Designation: CM D20-B-C25
DCX  RE  APMX LH OAL BHTA DCONMS Shank  Type ZEFF RMPX°  HAND MIID  CICT  CSP  GICATGIREMgiic
20.0010.0013.8085.0200.002.025.00CB0.632~90.0~R~CR D200-QF1~3100657 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3100657 300<a href="javascript:OpenDxf('3100657', 'CM D20-B-C25' , 'IscarDxf' , '3100657-CM D20-B-C25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          Not Available<br /><a href="javascript:openDxfRequest('3DL','3100657', 'CM D20-B-C25' , 'M');">3D Required</a><a href="FilesDownload.aspx?FileType=P&cat=3100657&itemDesc=CM D20-B-C25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
For adaptation, click on "More Info".
3D Representation
Assembly Video

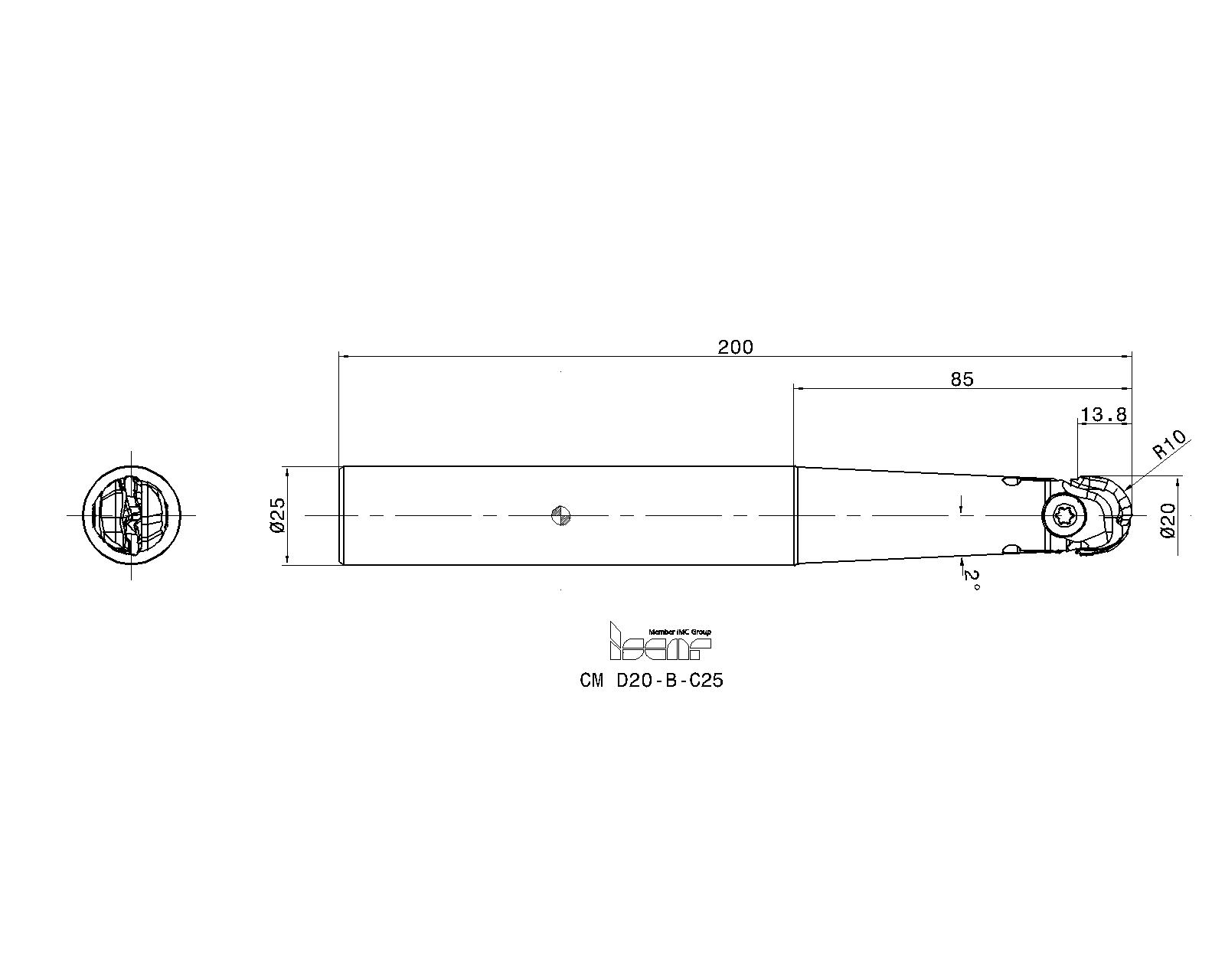

2D Representation
  Spare Parts
7001831SR 34-515Torx screw
Details
Recommended tightening torque:12 N*m
7002093BLD T25/S7Torx blade
For limiting torque, use optional 7007028 BLD 6 T25 blade & 7007221 TSA 6 5-14 handle.
7002097SW6-TT-handle
7001920RR 8MM BN831Circlips for shafts
Details
