Family Designation: CM D08-20 Ball nose endmills D=8-20 mm (HELIBALL).

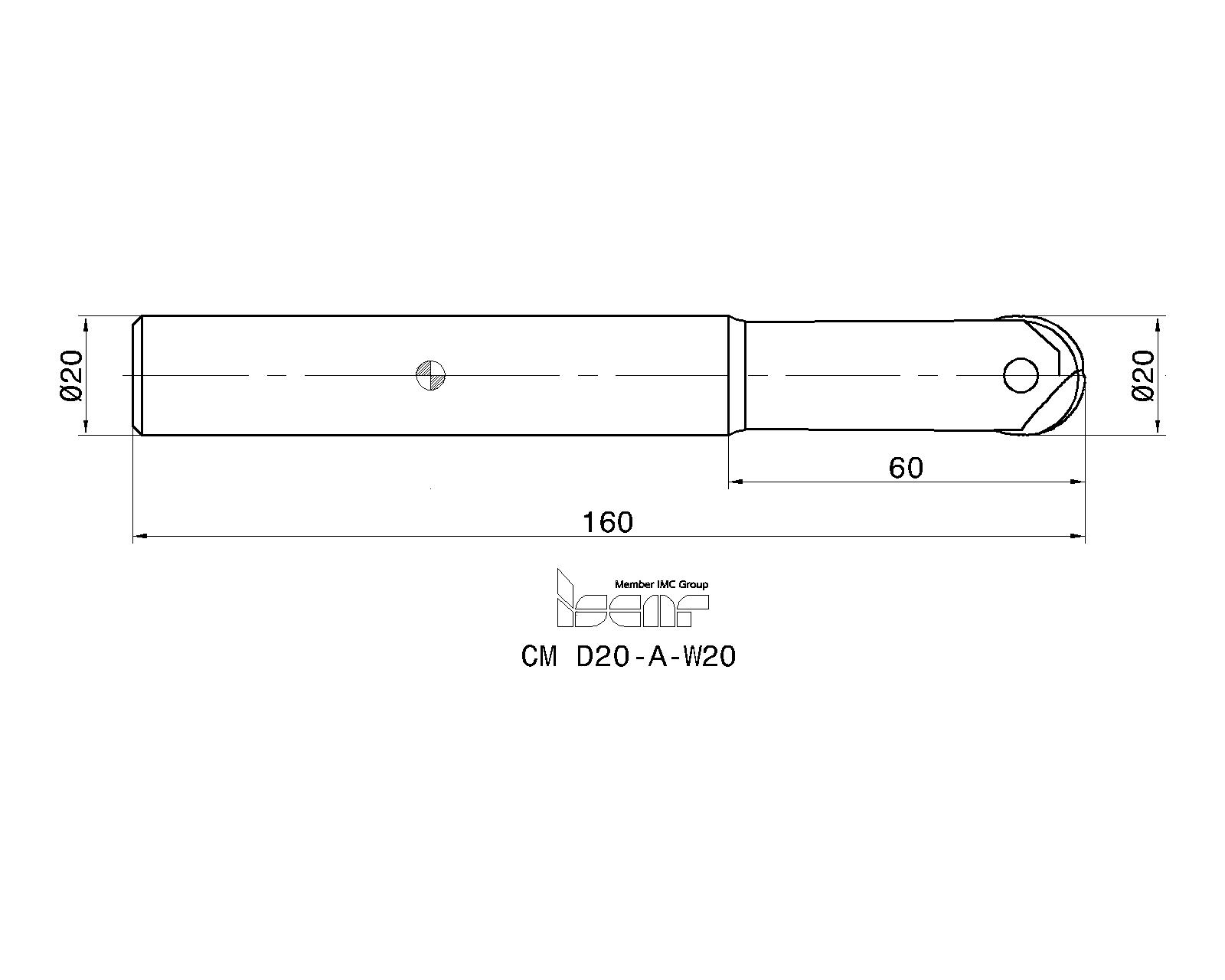

Item Designation: CM D20-A-W20
DCX  RE  APMX LH OAL BHTA DCONMS Shank  Type ZEFF RMPX°  HAND MIID  CICT  CSP  GICATGIREMgiic
20.0010.0013.8060.0160.00-20.00WA0.342~90.0~R~CR D200-QF1~3100708 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
3100708 30128<a href="javascript:OpenDxf('3100708', 'CM D20-A-W20' , 'IscarDxf' , '3100708-CM D20-A-W20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3100708&itemDesc=CM D20-A-W20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3100708&itemDesc=CM D20-A-W20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
For adaptation, click on "More Info".
3D Representation
Assembly Video
2D Representation
  Spare Parts
7001831SR 34-515Torx screw
Details
Recommended tightening torque:12 N*m
7002093BLD T25/S7Torx blade
Details
For limiting torque, use optional 7007028 BLD 6 T25 blade & 7007221 TSA 6 5-14 handle.
7002097SW6-TT-handle
Details
7001920RR 8MM BN831Circlips for shafts
Details
