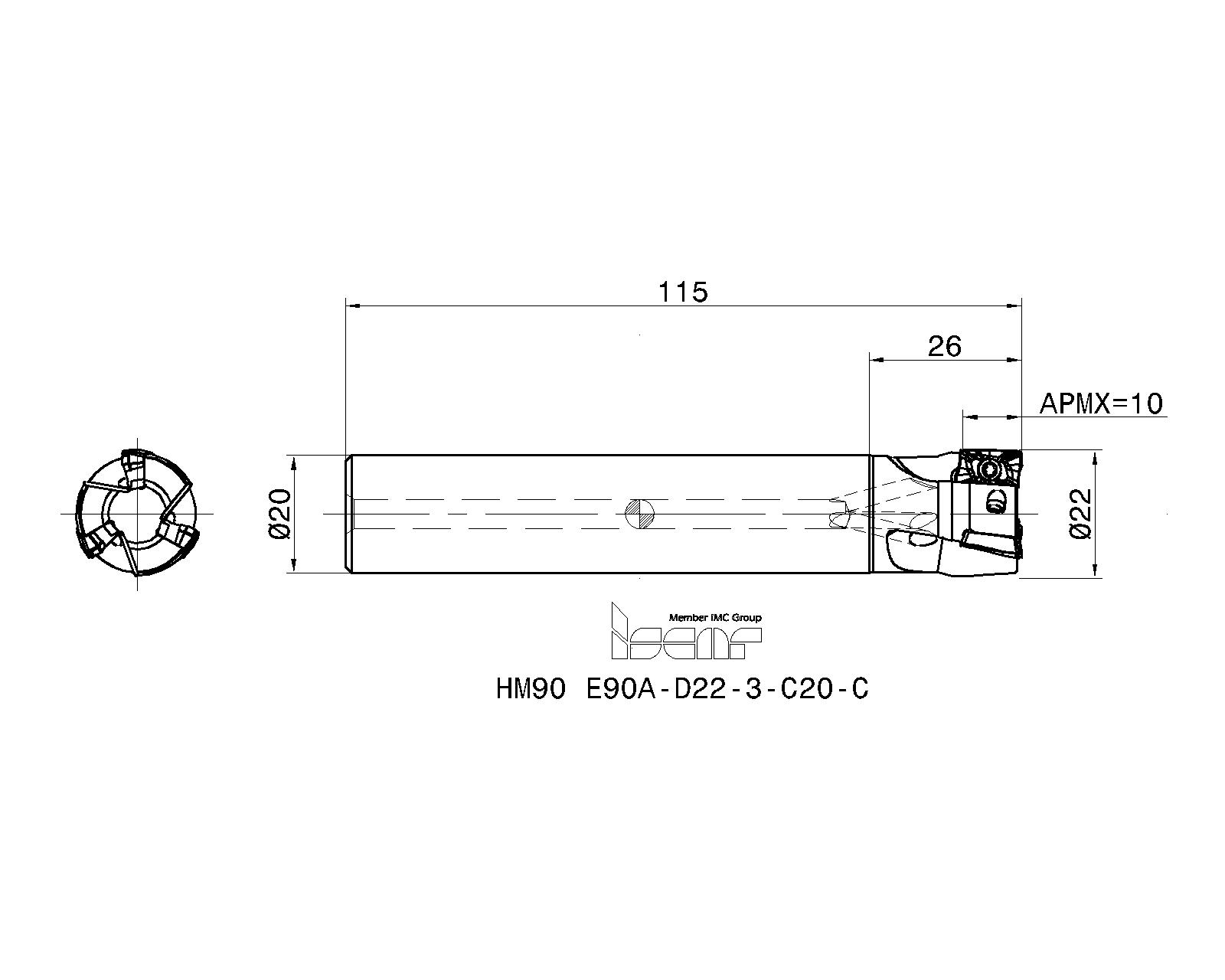

Family Designation: HM90 E90A-10

Endmills carrying HM90 AP.. 1003... inserts.

Item Designation: HM90 E90A-D22-3-C20-C

DC	CICT	APMX	OAL	LH	LU	RMPX°	DCONMS	Shank		CSP	RPMX		l	Semi- (Q)	PD	HAND	Insert	Mod	Pocket	D Inner	Ap Back	MIID	MIID_2	CNSC	CXSC	ISYC	ISYC_2	ISCTMP	ISCTMP_2	MINI	ClssID	ClssID_2	GTC	GTC_2	OAL_2	KAPR	APMX_2	DC_2	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	BD	CUBPMS	CZCMS	DCX	DF	IIC	IIC_10	IIC_2	IIC_3	IIC_4	IIC_5	IIC_6	IIC_7	IIC_8	IIC_9	KAPR_2	LF	LF_2	LH_2	LTA	LTA_2	LU_2	RMPX°_2	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
22.00	3	9.80	115.00	26.0	-	7.5	20.00	C	Y~	1	51846	0.25	10.00~	1~	F~	R~	AP .10~	100~	AP .10~	13.05~	0.70~	HM90 APKT 1003 PDR~	APKT 1003R8T-FF~	1~	2~	307-01~	307-02~	GEMLT010020~	GEMLT060020~	-~	71E01A05D27A8~	71E01A05D27A8~	MILSQI_MZYL01~	MILSQI_MZYL01~	115.00~	90.0~	1.80~	22.10~	3~	0~	3~	S~	ZYL~	01~	ZYL01G2000h$06~	~	G~	2000~	~	~	IS$$1344837378678660~	IS$$2189542607705365~	IS$$1862417393372328~	IS$$1959342905893035~	IS$$1968990337272673~	IS$$2006814225732946~	IS$$2026079028610574~	IS$$2093101277321249~	IS$$2141159759291996~	IS$$2150774533611367~	~	115.00~	115.00~	26.0~	65.00~	0.00~	-~	~	h6~	M~	3~	3~	3101820		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3101820		1	0	280				<a href="javascript:OpenDxf('3101820', 'HM90 E90A-D22-3-C20-C' , 'IscarDxf' , '3101820-HM90 E90A-D22-3-C20-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3101820&itemDesc=HM90 E90A-D22-3-C20-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3101820&itemDesc=HM90 E90A-D22-3-C20-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7002441	SR 34-505/HG	Torx screw	Details
Recommended tightening torque:1.2 Nm (10.6lbfin)
	7002348	BLD T08/M7	Torx blade
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7002212	SW4-SD	Handle
