Family Designation: HM90 E90A-10 Endmills carrying HM90 AP.. 1003... inserts.


Item Designation: HM90 E90A-D12-1-C16
DC DCX_2 DC_2 DCONMS APMX APMX_2 CICT  OAL OAL_2 LH LU RMPX°  RMPX°_2 MDN MDX Shank  CSP  RPMX  MIID  MIID_2  HAND KAPR  NOF  CCMS ZEFF GICATGIREMgiic
12.0012.103.0016.009.801.00180.0079.6320.014.032.032.015.1023.20C092536HM90 APKT 1003 PDRAPKT 1003R8T-FF0.11R~90.0~1~ZYL01G1600h$06~1~3101921 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
3101921 10336<a href="javascript:OpenDxf('3101921', 'HM90 E90A-D12-1-C16' , 'IscarDxf' , '3101921-HM90 E90A-D12-1-C16');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3101921&itemDesc=HM90 E90A-D12-1-C16"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3101921&itemDesc=HM90 E90A-D12-1-C16"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
1- with standard square insert
2- with FF (fast feed) insert
For adaptation, click on "More Info".

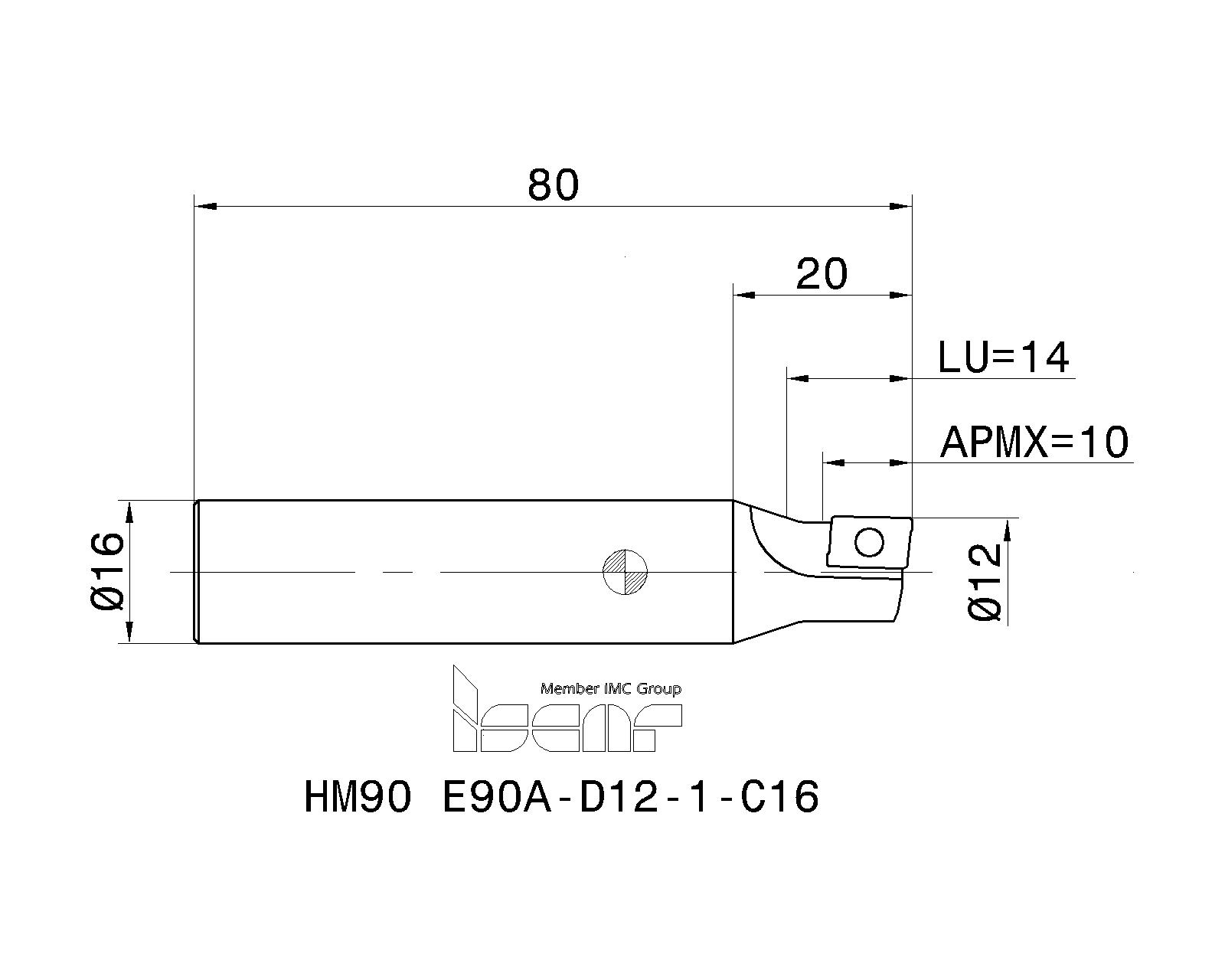

3D Representation
Assembly Video
2D Representation
  Spare Parts
7002441SR 34-505/HGTorx screw
Details
Recommended tightening torque:1.2 N*m
7000274T-8/53Torx hand driver
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
