ISCAR Cutting Tools - Metal Working Tools - HM90 E90AD-15 : 3102781

Geometry Checker ×

Family Designation: HM90 E90AD-15

90° endmills carrying HM90 ADKT-1505... inserts.

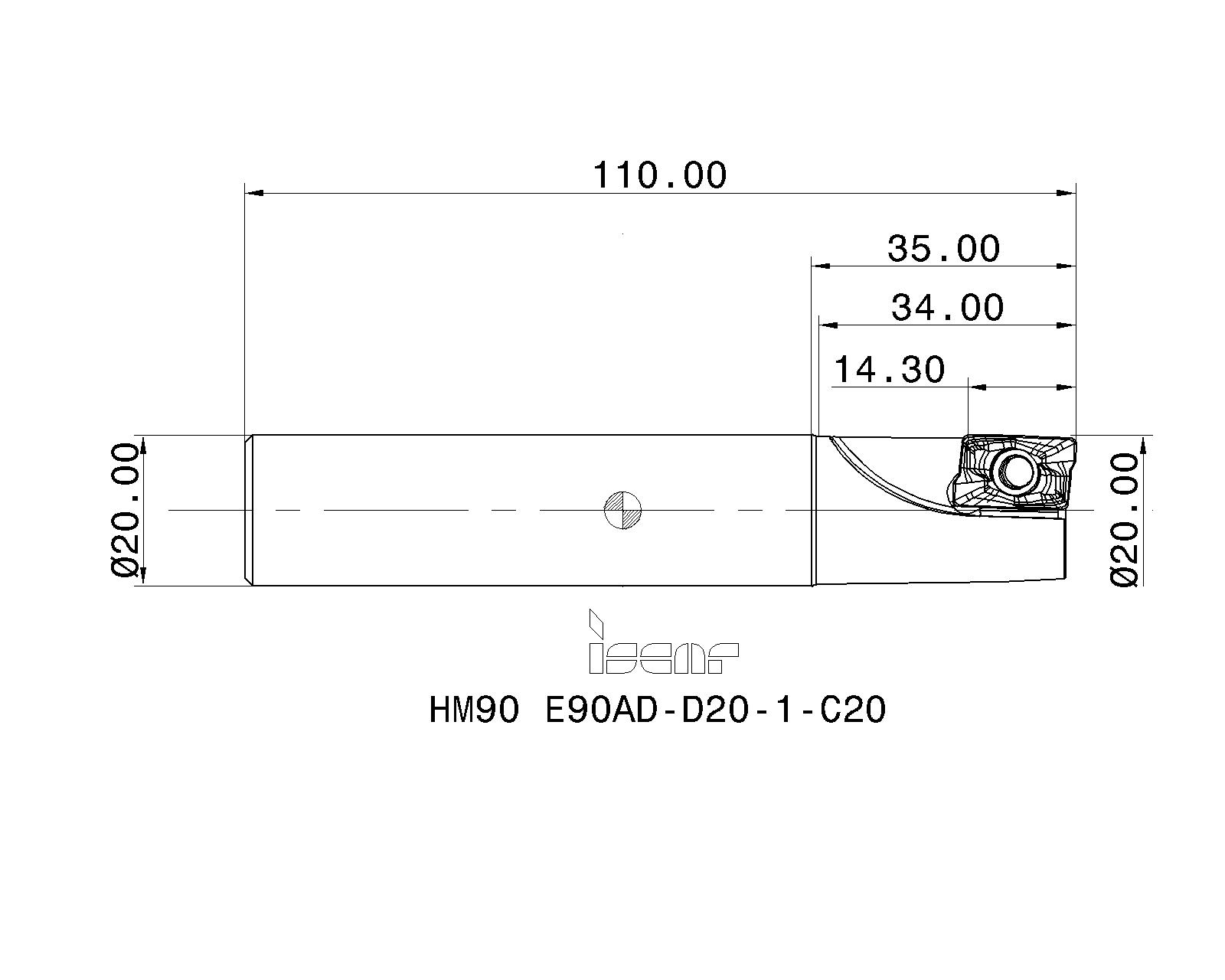

Item Designation: HM90 E90AD-D20-1-C20

DC	CICT	APMX	OAL	LH	LU	RMPX°	DCONMS	Shank	RPMX	CSP	MIID		HAND	KAPR	NOF	CCMS	DCX	ZEFF	GICAT	GIREM	giic
20.00	1	14.30	110.00	35.0	34.0	3.0	20.00	C	51586	0	ADKT 1505PDTR	0.24	R~	90.0~	1~	ZYL01G2000h$06~	~	1~	3102781		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3102781		1	0	384				<a href="javascript:OpenDxf('3102781', 'HM90 E90AD-D20-1-C20' , 'IscarDxf' , '3102781-HM90 E90AD-D20-1-C20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3102781&itemDesc=HM90 E90AD-D20-1-C20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3102781&itemDesc=HM90 E90AD-D20-1-C20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info"

Spare Parts
	7000402	SR 14-544/S	Torx screw	Details
Recommended tightening torque:4.8 N*m
	7002244	SW6-SD	Handle
	7002095	BLD T15/M7	Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
