Family Designation: HM90 EAL-15

Long reach endmills carrying HM90 AXCR 1505... inserts for machining aluminum.

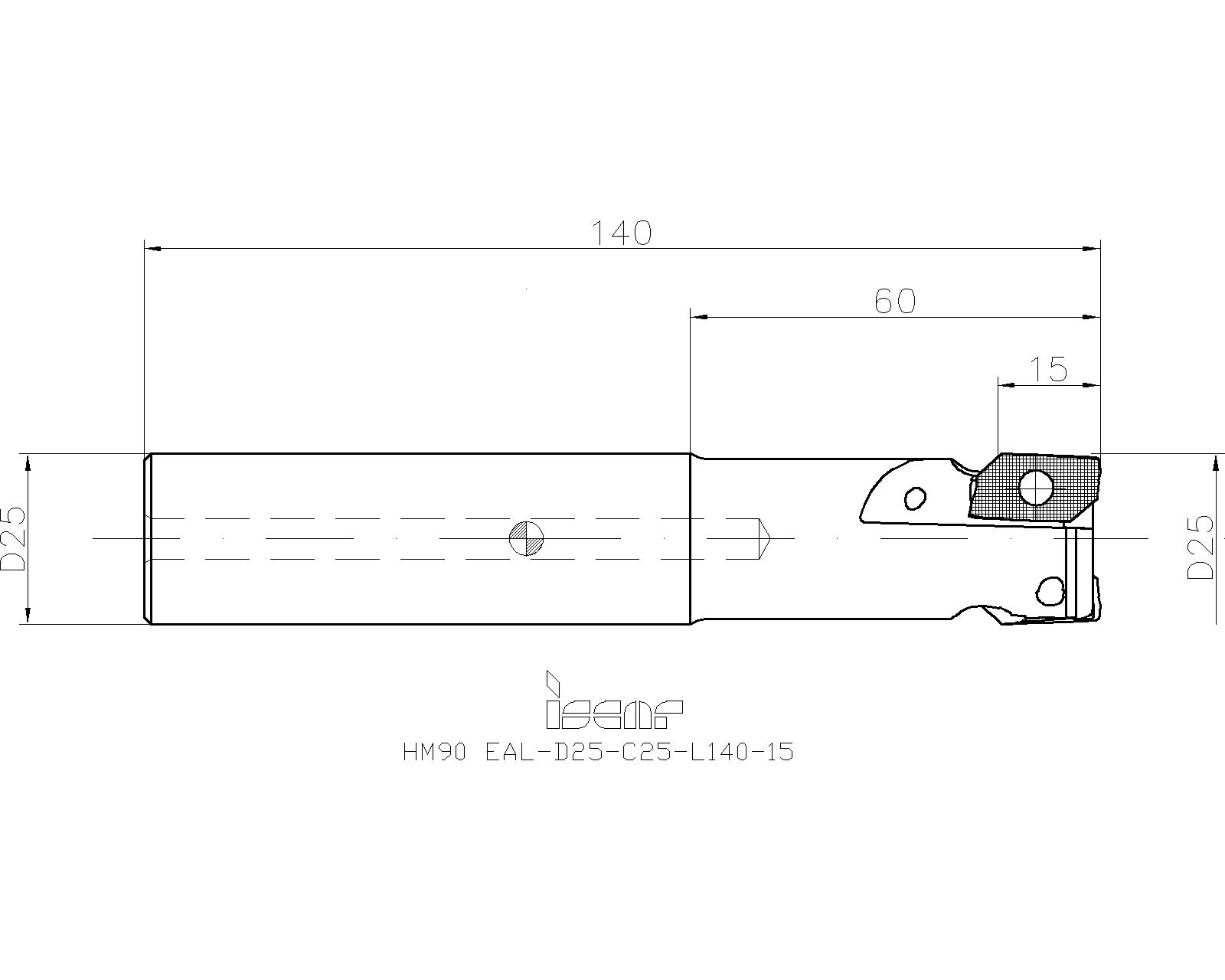

Item Designation: HM90 EAL-D25-C25-L140-15

DC	CICT	APMX	LH	OAL	DCONMS	Shank	RPMX	RMPX°		L	HAND	MIID	KAPR	NOF	CCMS	CSP	DCX	LU	ZEFF	GICAT	GIREM	giic
25.00	2	14.00	60.0	140.00	25.00	C	37500	21.0	0.44	15.00~	R~	HM90 AXCR 150540R-P	90.0~	2~	ZYL01G2500h$06~	1~	~	~	2~	3103001		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3103001		1	0	240				<a href="javascript:OpenDxf('3103001', 'HM90 EAL-D25-C25-L140-15' , 'IscarDxf' , '3103001-HM90 EAL-D25-C25-L140-15');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103001&itemDesc=HM90 EAL-D25-C25-L140-15"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3103001&itemDesc=HM90 EAL-D25-C25-L140-15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
HM90 AXCR 150540R-P insert with a 4.0 mm or larger corner radius requires pocket modification
For adaptation click on "More Info"

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7000992	SR 14-562	Torx screw	Details
Recommended tightening torque:3.2 N*m
	7002244	SW6-SD	Handle
	7002451	BLD T10/S7	Torx blade
For limiting torque, use optional 7007383 BLD 4 T10-3.2NM blade & 7007321 HSD 4-3.2NM handle.
