Family Designation: MM S-B (85° conical shanks)

MULTI-MASTER, 85° conical shanks for interchangeable milling heads.

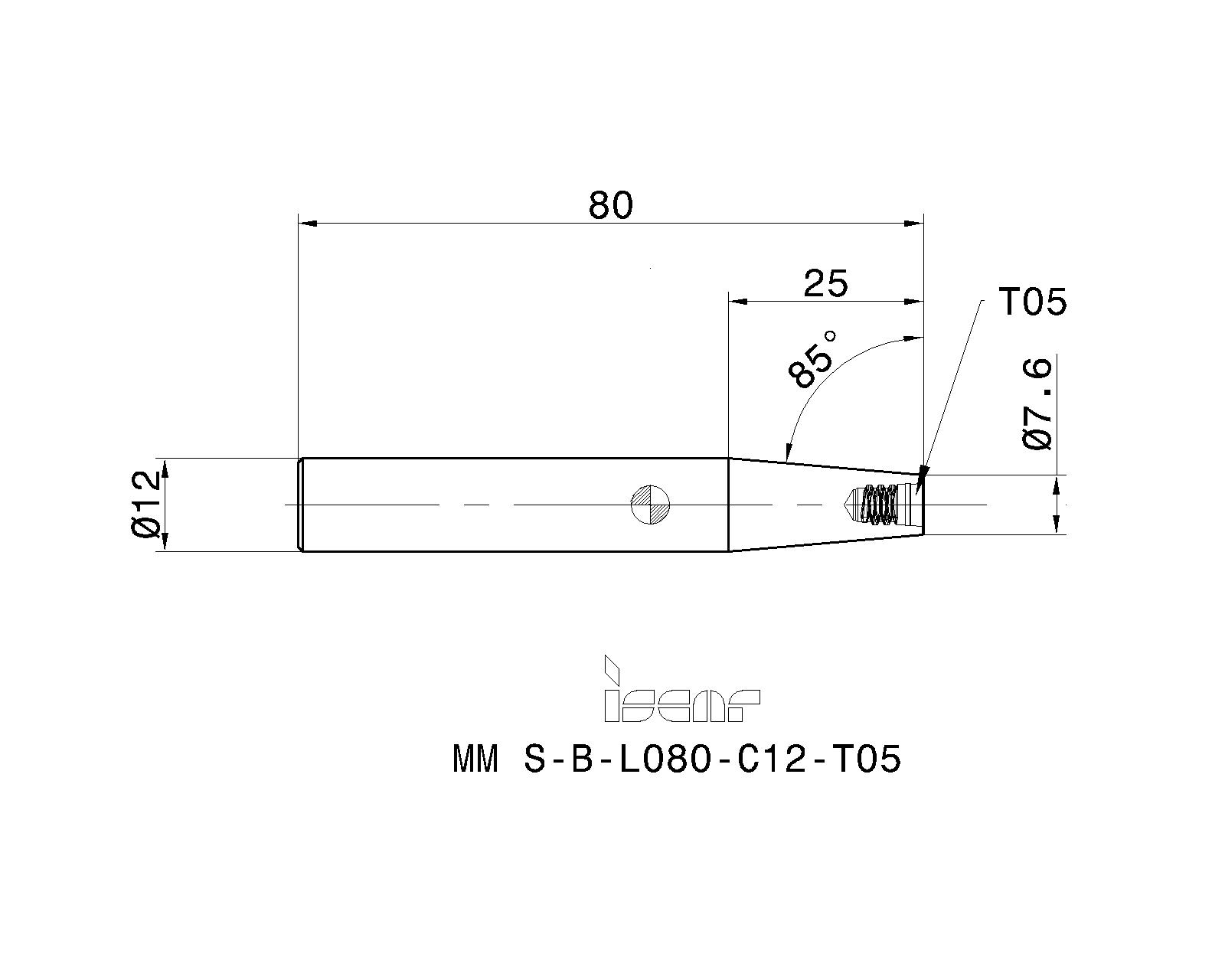

Item Designation: MM S-B-L080-C12-T05

THSZWS	DCONMS	BD	BHTA	Shank	LB	LBX	OAL	Shank m.	CSP	RPMX		CCMS	GICAT	GIREM	giic
T05	12.00	7.60	5.0	C	-	25.0	80.00	S	~	60000	0.06	ZYL01G1200h$06~	3103407		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3103407		1	80	368				<a href="javascript:OpenDxf('3103407', 'MM S-B-L080-C12-T05' , 'IscarDxf' , '3103407-MM S-B-L080-C12-T05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103407&itemDesc=MM S-B-L080-C12-T05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3103407&itemDesc=MM S-B-L080-C12-T05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation click on "More Info"
Do not apply lubricant to the threaded connection
