Family Designation: MM S-A (stepped shanks)

MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

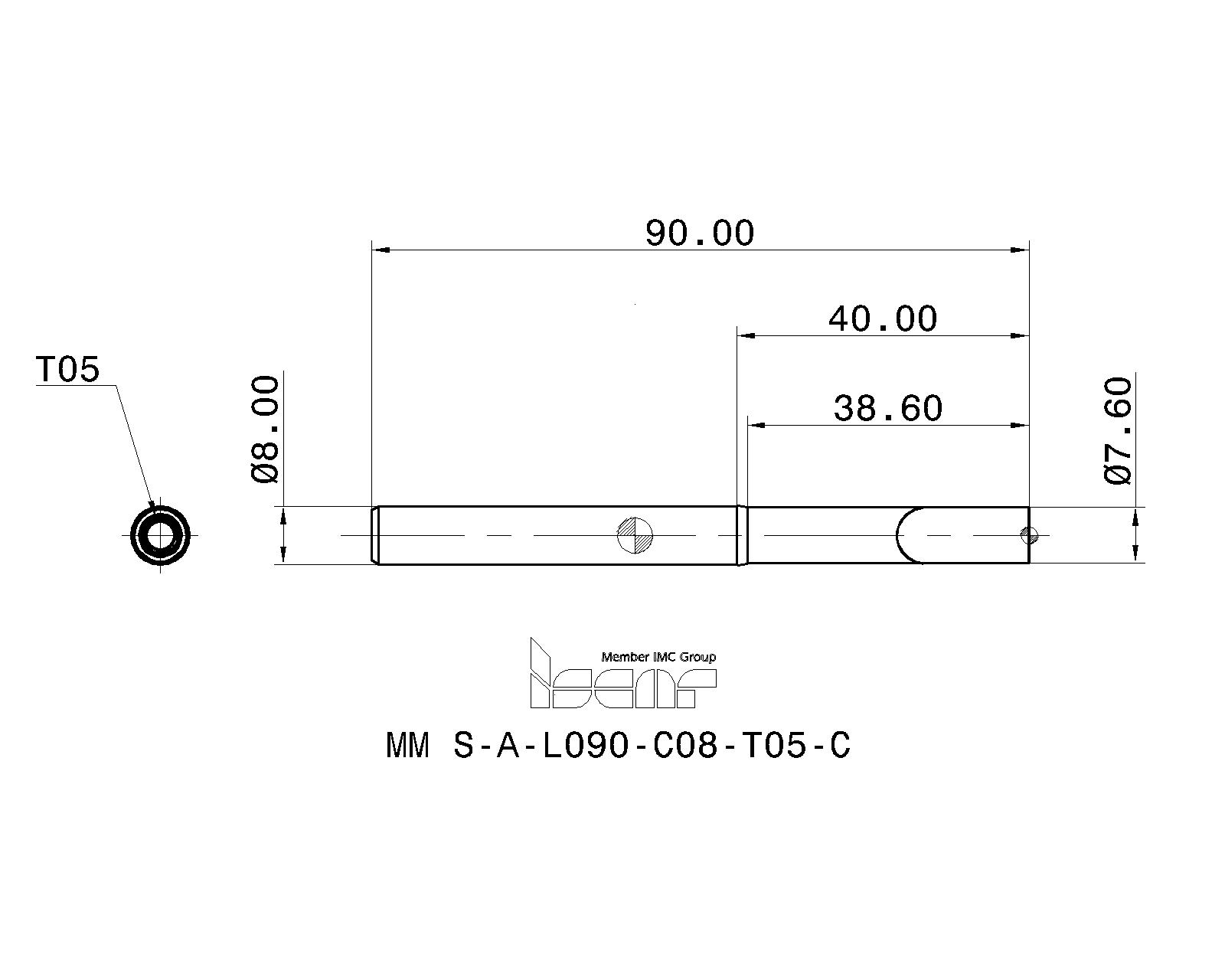

Item Designation: MM S-A-L090-C08-T05-C

THSZWS	DCONMS	BD	LB	LBX	OAL	Shank	Shank m.	CSP	Fig.	RPMX		CCMS	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
T05	8.00	7.60	38.60	40.0	90.00	C	C	0	-	50160	0.06	ZYL01F8000h$06~								3103500		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3103500		1	208	4560				<a href="javascript:OpenDxf('3103500', 'MM S-A-L090-C08-T05-C' , 'IscarDxf' , '3103500-MM S-A-L090-C08-T05-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103500&itemDesc=MM S-A-L090-C08-T05-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3103500&itemDesc=MM S-A-L090-C08-T05-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation click on "More Info"
Do not apply lubricant to the threaded connection

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
