Milling
Main Application

Plunging & Recessing
Sub Application
Geometry Checker ×

Family Designation: HCE Multifunction endmills that can carry ball nose, 90° and toroidal inserts.


Item Designation: HCE D16-D-L160-C20
DC LH OAL BD DCONMS Shank  BHTA Type  MIID  HAND CCMS NOF  KAPR  APMX CICT  CSP  DCX  LU RMPX°  ZEFF GICATGIREMgiic
16.0065.0160.00-20.00C1.7D7.80.32HCC D160-R0.5-QFR~ZYL01G2000h$06~2~90.0~10.30~1~0~~~0.0~2~3103589 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3103589 301<a href="javascript:OpenDxf('3103589', 'HCE D16-D-L160-C20' , 'IscarDxf' , '3103589-HCE D16-D-L160-C20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103589&itemDesc=HCE D16-D-L160-C20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3103589&itemDesc=HCE D16-D-L160-C20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
For undercutting, use HTR inserts only
The dimensions are for HCC inserts with RE=0.5 mm
For adaptation, click on "More Info"
3D Representation
Assembly Video

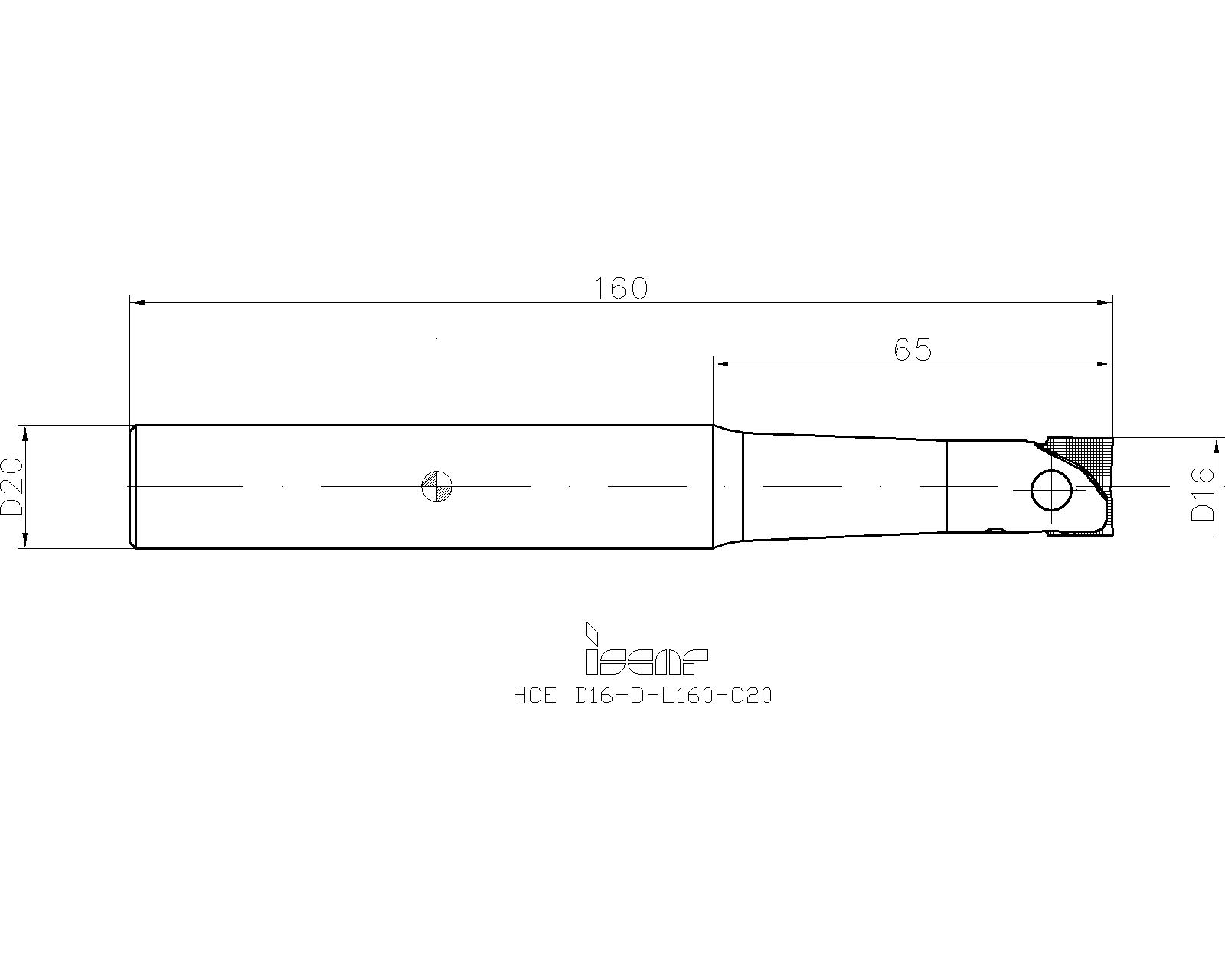

2D Representation
  Spare Parts
7004475SR 10503579Socket cap low head screw
Screw		Details
7002090BLD T20/S7Torx blade
Details
Recommended torque value according to the "Tightening Torque" table
7002097SW6-TT-handle
Details
