Family Designation: FF EW

FEEDMILL, fast feed endmills using FF WOMT... inserts. Can run at very high feed rates of up to 1.5 mm/tooth at small DOC, resulting in high metal removal rates.

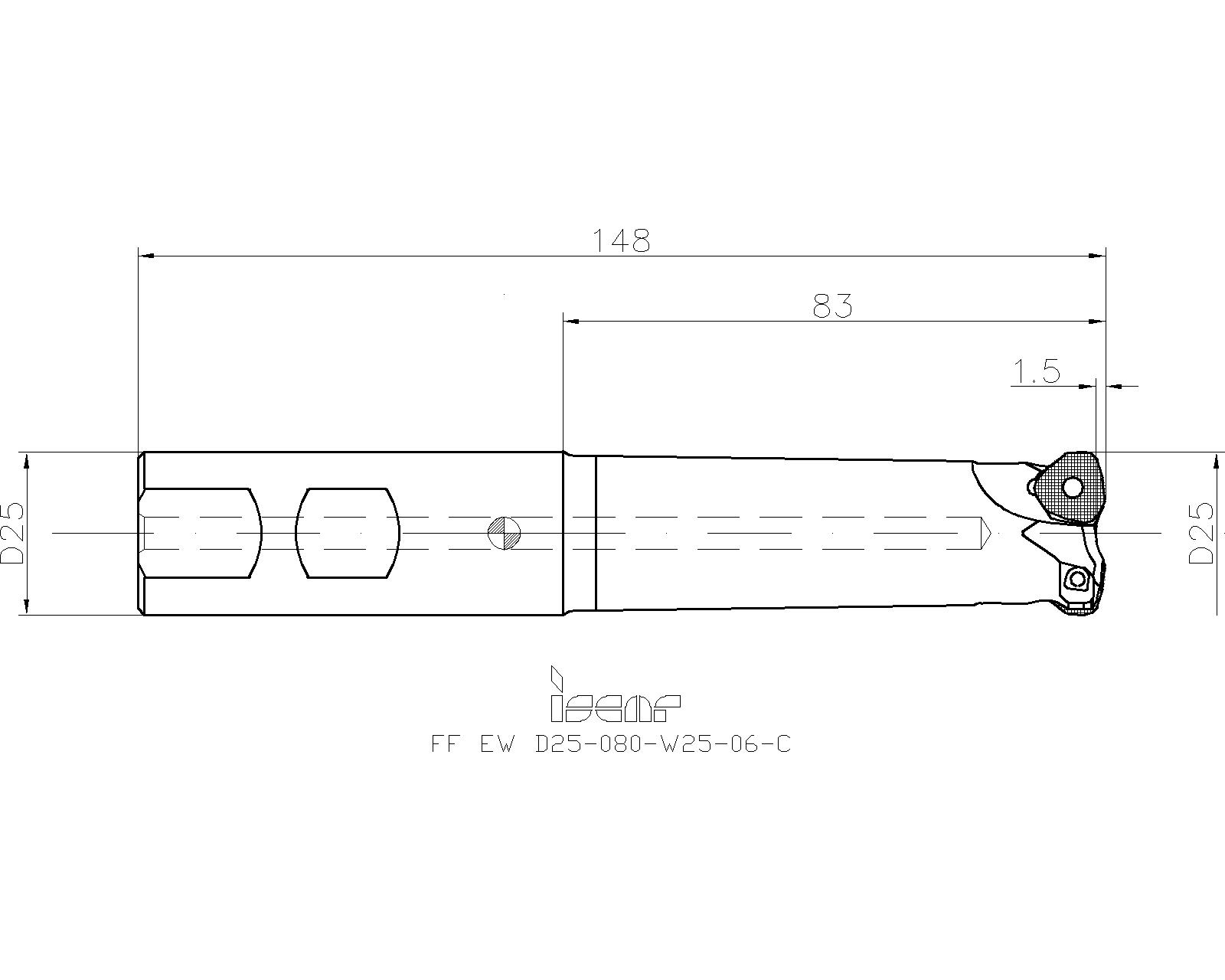

Item Designation: FF EW D25-080-W25-06-C

DCX	DC	APMX	AE	CICT	LH	LU	OAL	DF	DCONMS	Shank	RMPX°		MIID		IC	HAND	KAPR	NOF	CCMS	CSP	ZEFF	GICAT	GIREM	giic
25.00	11.00	1.20	7.0~	2	83.0	-	148.00	-	25.00	W	5.0	2.0	FF WOMT0602	0.46	9.86~	R~	13.0~	2~	ZYL10G2500h$06~	1~	2~	3103610		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3103610		3	0	6			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=3103610&cat=3103610&itemDesc=FF EW D25-080-W25-06-C"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('3103610', 'FF EW D25-080-W25-06-C' , 'IscarDxf' , '3103610-FF EW D25-080-W25-06-C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103610&itemDesc=FF EW D25-080-W25-06-C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3103610&itemDesc=FF EW D25-080-W25-06-C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation, click on "More Info"

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required

Spare Parts
	7003185	SR 34-506/M	Torx screw	Details
Recommended tightening torque:2 N*m
	7003372	T-9/51	Torx hand driver	Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
