Family Designation: HCE Multifunction endmills that can carry ball nose, 90° and toroidal inserts.

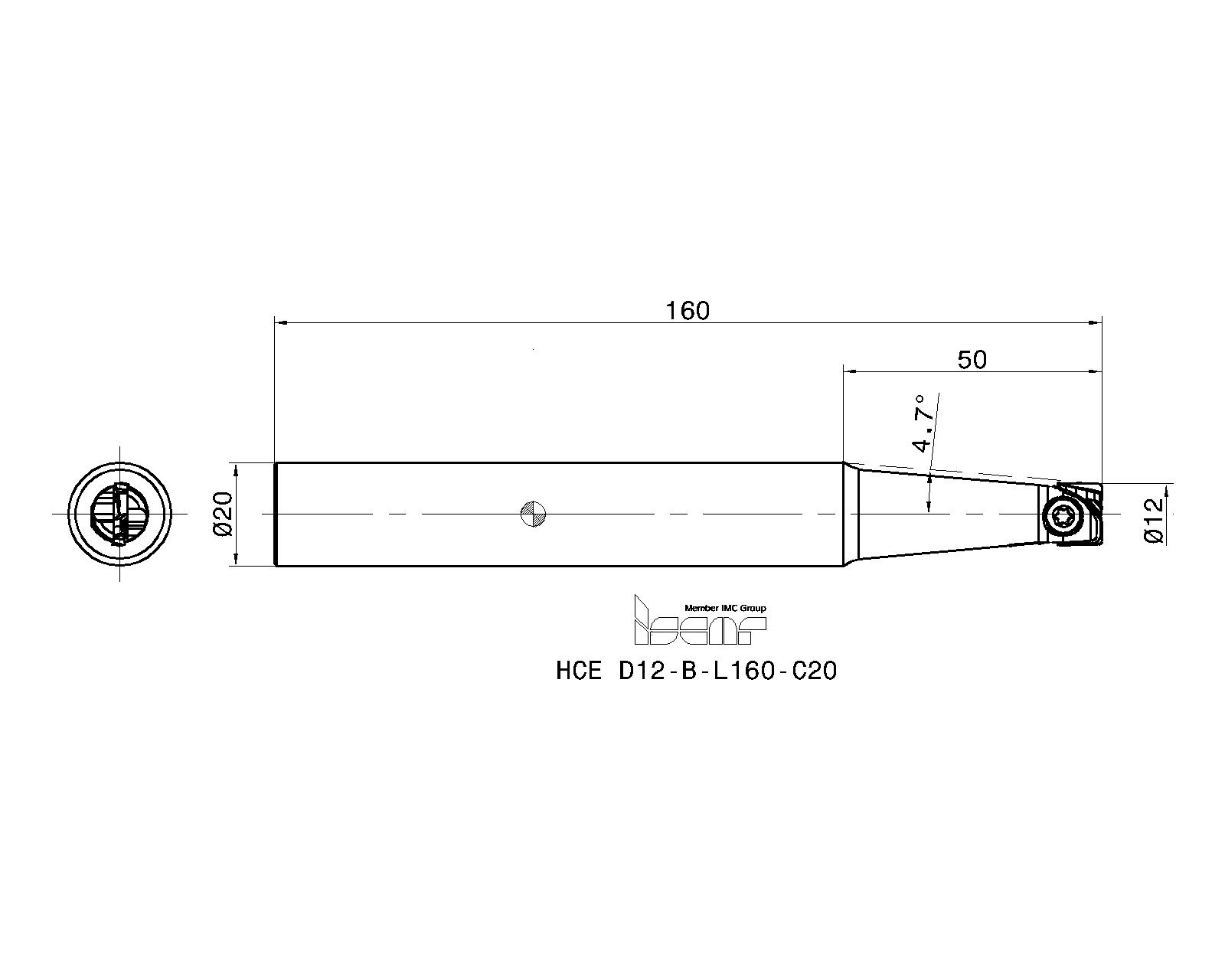

Item Designation: HCE D12-B-L160-C20
DC LH OAL BD DCONMS Shank  BHTA Type  MIID  HAND CCMS NOF  KAPR  APMX CICT  CSP  DCX  LU RMPX°  ZEFF GICATGIREMgiic
12.0050.0160.00-20.00C4.6B6.00.41HCC D120-R0.5-QFR~ZYL01G2000h$06~2~90.0~8.10~1~0~~~0.0~2~3103702 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
3103702 30160<a href="javascript:OpenDxf('3103702', 'HCE D12-B-L160-C20' , 'IscarDxf' , '3103702-HCE D12-B-L160-C20');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103702&itemDesc=HCE D12-B-L160-C20"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=3103702&itemDesc=HCE D12-B-L160-C20"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
For undercutting, use HTR inserts only
The dimensions are for HCC inserts with RE=0.5 mm
For adaptation, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7002399SR 34-540Socket cap low head screw
Screw
Details
7002096BLD T15/S7Torx blade
Details
Recommended torque value according to the "Tightening Torque" table
7002097SW6-TT-handle
Details
