Family Designation: HCE

Multifunction endmills that can carry ball nose, 90° and toroidal inserts.

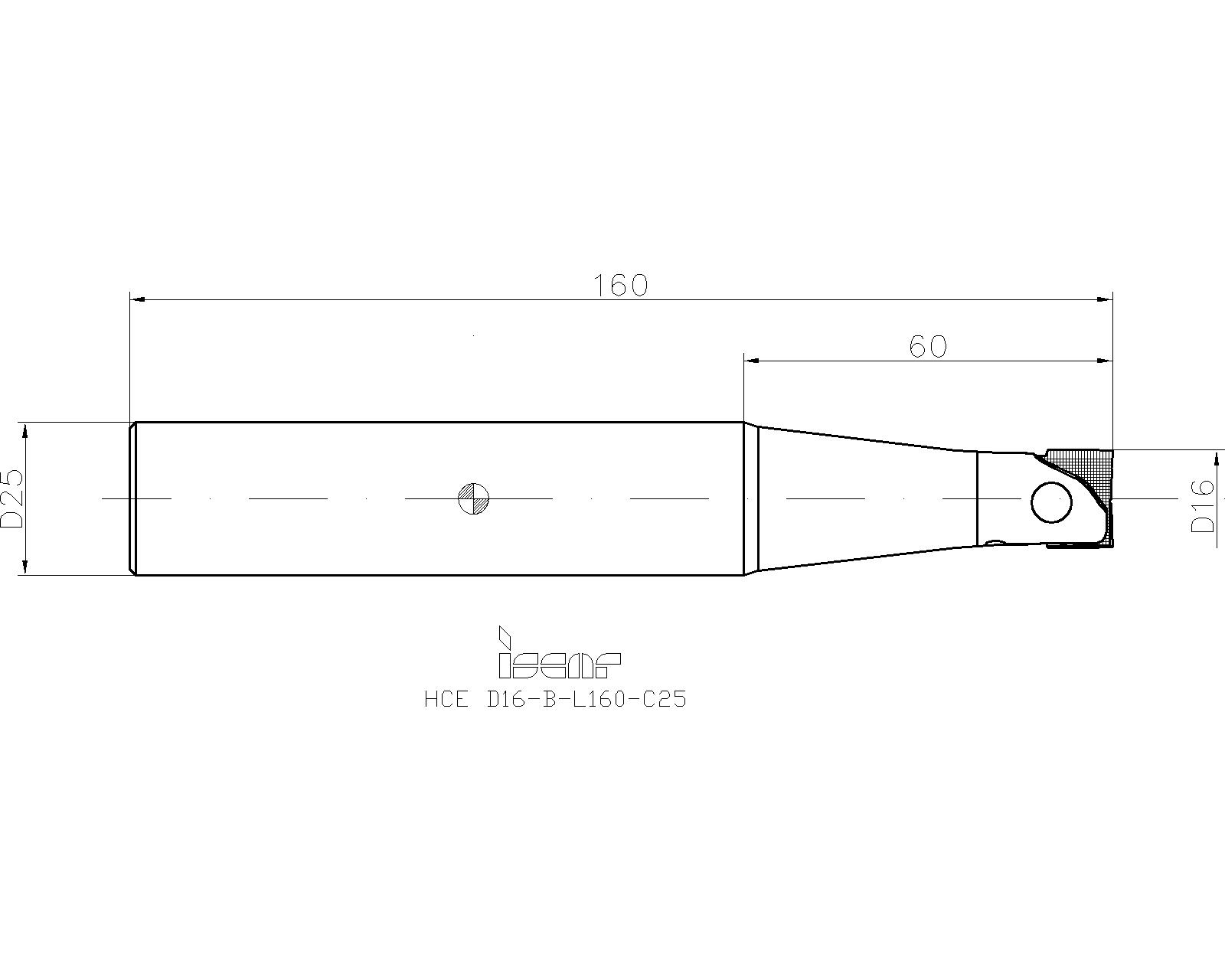

Item Designation: HCE D16-B-L160-C25

DC	LH	OAL	BD	DCONMS	Shank	BHTA	Type			MIID	HAND	CCMS	NOF	KAPR	APMX	CICT	CSP	DCX	LU	RMPX°	ZEFF	GICAT	GIREM	giic
16.00	60.0	160.00	-	25.00	C	4.3	B	7.8	0.50	HCC D160-R0.5-QF	R~	ZYL01G2500h$06~	2~	90.0~	10.30~	1~	0~	~	~	0.0~	2~	3103704		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3103704		3	0	64				<a href="javascript:OpenDxf('3103704', 'HCE D16-B-L160-C25' , 'IscarDxf' , '3103704-HCE D16-B-L160-C25');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3103704&itemDesc=HCE D16-B-L160-C25"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3103704&itemDesc=HCE D16-B-L160-C25"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For undercutting, use HTR inserts only
The dimensions are for HCC inserts with RE=0.5 mm
For adaptation, click on "More Info"

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7004475	SR 10503579	Socket cap low head screw Screw	Details
	7002090	BLD T20/S7	Torx blade
Recommended torque value according to the "Tightening Torque" table
	7002097	SW6-T	T-handle
