ISCAR Cutting Tools - Metal Working Tools - HP E90AN-07 : 3104018 - HP E90AN-D20-4-C19-07-C-B

Milling
Main Application

Plunging & Recessing
Sub Application
Geometry Checker ×

Family Designation: HP E90AN-07 Endmills using HELIPLUS HP ANKT 0702.. inserts. Extra fine pitch endmills with very tight tool and insert tolerances for high production rates. Very strong and durable insert. Available are tools with and without coolant holes.


Item Designation: HP E90AN-D20-4-C19-07-C-B
DC CICT  LH LU OAL APMX DCONMS Shank  RMPX°  RMPX°_2  Key RPMX  CSP  L PD HAND Insert Mod S1 Pocket Ap Back MIID  MIID_2  CNSC CXSC ISYC ISYC_2 ISCTMP ISCTMP_2MINI ClssID ClssID_2GTC GTC_2 OAL_2 KAPR  APMX_2 DC_2 NOF  ZADJ ZNP  BMC CCTMS CCFMS CCMS APMX_3 APMX_4 APMX_5 BD BD_3 BD_4 BD_5 ClssID_3ClssID_4ClssID_5CUBPMS CZCMS  DC_3 DC_4 DC_5 DCX  DCX_2 DCX_3 DCX_4 DF GTC_3 GTC_4 GTC_5 IIC IIC_2 IIC_3 ISCTMP_3ISCTMP_4ISCTMP_5ISYC_3 ISYC_4 ISYC_5 KAPR_2 KAPR_3 KAPR_4 KAPR_5 LF LF_2 LF_3 LF_4 LF_5 LH_2 LH_4 LH_5 LPR_4 LPR_5 LTA LTA_2 LTA_3 LTA_4 LTA_5 LU_2 MIID_3  MIID_4  MIID_5  OAL_3 OAL_4 OAL_5 RMPX°_3 RMPX°_4 RMPX°_5 SPI TCDCONMSUST ZEFF ZEFP GICATGIREMgiic
20.00422.020.5160.007.7019.00C2.44.5C19~Y~3889010.318.70~XF~R~HP ANKT 07~100~1~HP ANKT 07~0.90~HP ANKT 0702PNTR~HP ANKT 0702R12T-FF~1~2~307-01~307-02~GEMLT010020~GEMLT060020~-~71E01A05D27A8~71E01A05D27A8~MILSQI_MZYL01~MILSQI_MZYL01~160.00~90.0~0.70~20.00~4~0~4~S~ZYL~01~ZYL01G1900h$06~~~~~~~~~~~G~1900~~~~~~~~~~~~IS$$473250257328005~IS$$511766147835288~IS$$531043782622512~~~~~~~~~~~160.00~160.00~~~~22.0~~~-~-~112.00~~-~-~-~20.50~~~~~~~~~~~h6~M~4~4~3104018 "B" suffix - cylindrical shank which may be shortened. 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21
3104018 100<a href="javascript:OpenDxf('3104018', 'HP E90AN-D20-4-C19-07-C-B' , 'IscarDxf' , '3104018-HP E90AN-D20-4-C19-07-C-B');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3104018&itemDesc=HP E90AN-D20-4-C19-07-C-B"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3104018&itemDesc=HP E90AN-D20-4-C19-07-C-B"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
"B" suffix - cylindrical shank which may be shortened.
Items Per Package : 1
Insert tightening torque: 62 Nxcm
For adaptation click on "More Info".

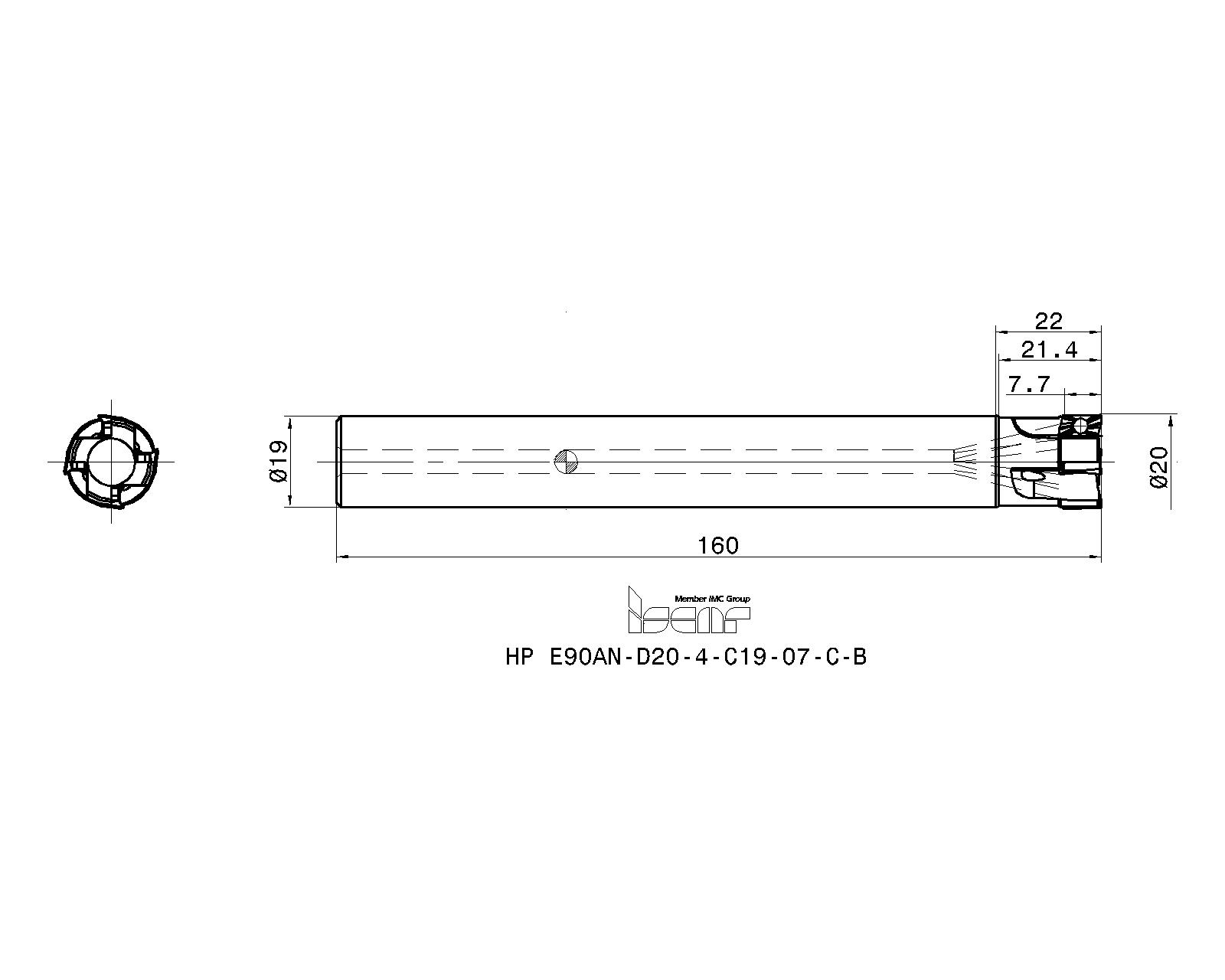

3D Representation
Assembly Video
2D Representation
  Spare Parts
7003603SR 34-533/L/HGTorx screw
Details
Recommended tightening torque: 0.6 N*m (5.3lbf*in)
7003118T-6/51Torx hand driver
Details
For limiting torque, use optional 7007375 BLD 4 T06-0.65NM blade & 7007317 HSD 4-0.65NM handle.
