Family Designation: HCM-MM Ball nose multifunction endmills with a MULTI-MASTER threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries.


 COOLANT THROUGH TOOL

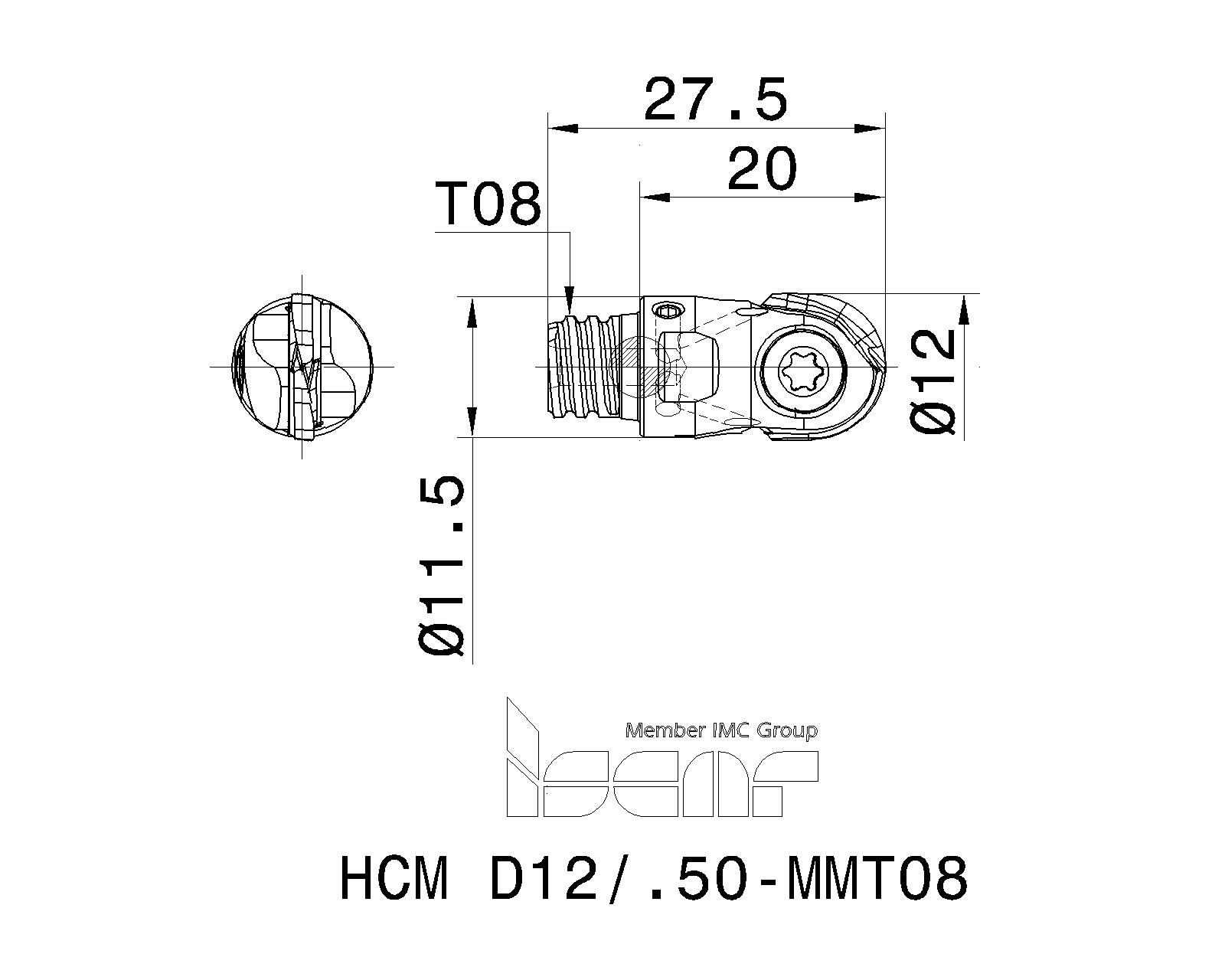

Item Designation: HCM D12/.50-MMT08
DCX  OAL  LF  DCONMS THSZMS DRVS   TQ_3  HAND MIID  NOF  CCMS APMX CICT  CSP  KAPR  RE RMPX°  ZEFF GICATGIREMgiic
12.0028.0020.0011.50T0810.06.0200.01R~HBR D120-QF2~SAI02C0080$$$$~9.77~1~1~~6.00~0.0~2~3104221 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3104221 13248<a href="javascript:OpenDxf('3104221', 'HCM D12/.50-MMT08' , 'IscarDxf' , '3104221-HCM D12 .50-MMT08');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3104221&itemDesc=HCM D12/.50-MMT08"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3104221&itemDesc=HCM D12/.50-MMT08"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
The dimensions are for HBR inserts
Do not apply lubricant to the MULTI-MASTER threaded connection
For adaptation click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
7002399SR 34-540Socket cap low head screw
Details
7002096BLD T15/S7Torx blade
Details
Recommended torque value according to the "Tightening Torque" table
7002097SW6-TT-handle
Details
