ISCAR Cutting Tools - Metal Working Tools - T490 LNM-08 : 3104283

Geometry Checker ×

Family Designation: T490 LNM-08

Extended flute endmills carrying T490 LNMT/HT 08... tangentially clamped inserts.

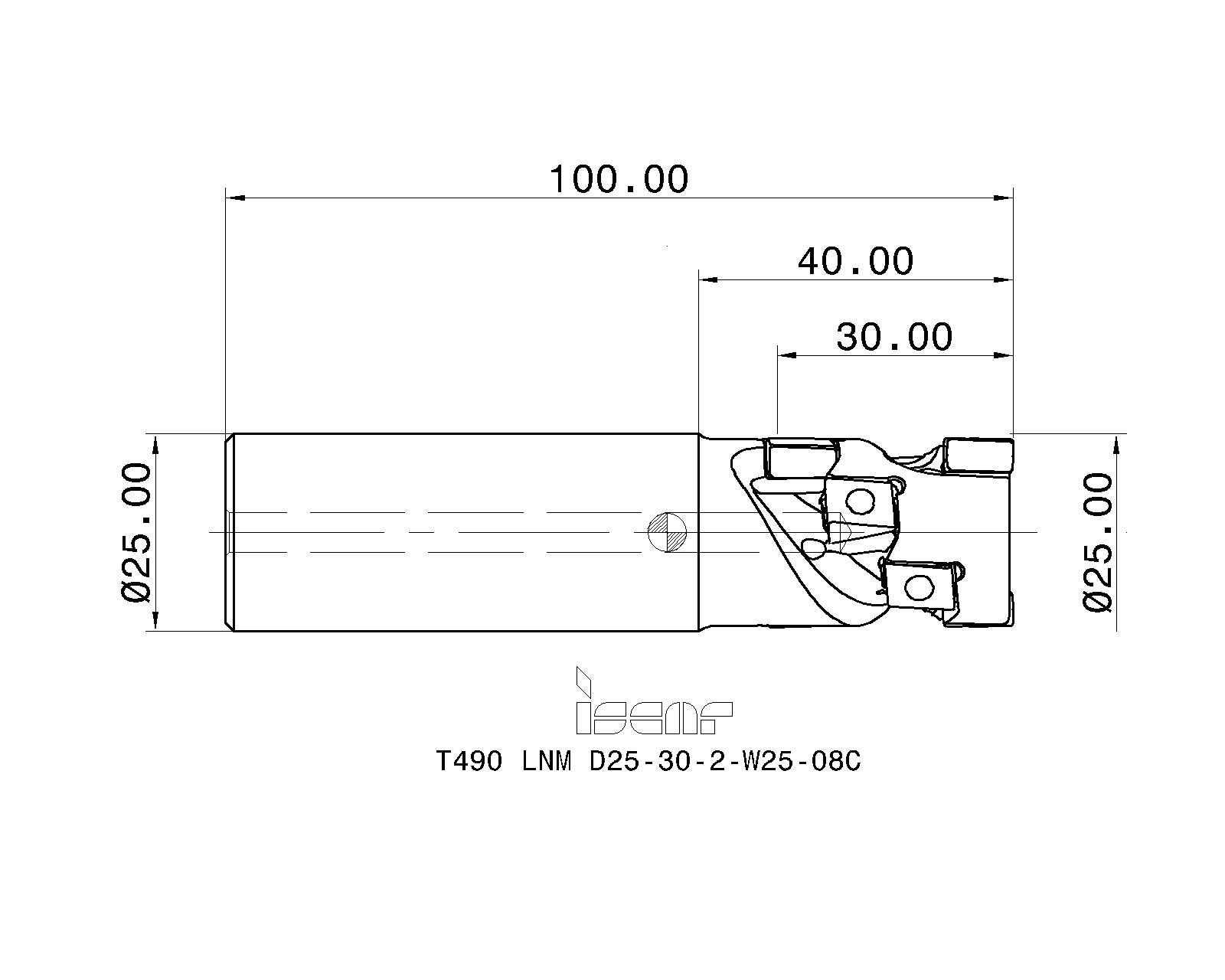

Item Designation: T490 LNM D25-30-2-W25-08C

DC	APMX	NOF	CICT	LH	OAL	DCONMS	Shank			L3	Key	HAND	PD	PD-CS	PD-FW	Insert	Mod	Ap Back	Pocket	MIID	CNSC	CXSC	ISYC	ISCTMP	ClssID	BMC	CCFMS	CCMS	CCTMS	ZADJ	ZNP	GTC	CSP	CUBPMS	CZCMS	IIC	KAPR	LF	LTA	LU	RMPX°	SPI	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
25.00	30.00	2	8	40.0	100.00	25.00	W	Y~	0.30	8.00~	W25~	R~	S6~	S4~	-~	T490 LN.. 08~	120~	0.00~	T490 LN.. 08~	T490 LNMT 0804PNR	1~	2~	307-07~	GEMLT020020~	71E01A05D27A8~	S~	10~	ZYL10G2500h$06~	ZYL~	0~	8~	MILSQI_MZYL10~	1~	G~	2500~	IS$$887190667793157~	90.0~	68.00~	44.00~	~	0.0~	~	h6~	M~	2~	2~	3104283		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3104283		1	0	128				<a href="javascript:OpenDxf('3104283', 'T490 LNM D25-30-2-W25-08C' , 'IscarDxf' , '3104283-T490 LNM D25-30-2-W25-08C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3104283&itemDesc=T490 LNM D25-30-2-W25-08C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3104283&itemDesc=T490 LNM D25-30-2-W25-08C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	4398576	SR 10502813-HG-M	Torx screw
Recommended tightening torque:1.2 Nm (10.6lbfin)
	7003436	IP-7/51	Torx hand driver	Details
For limiting torque, use optional 3315468 BLD 4 IP07-1.2NM blade & 7007319 HSD 4-1.2NM handle.
