Family Designation: H490 E90AX-12

90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line).

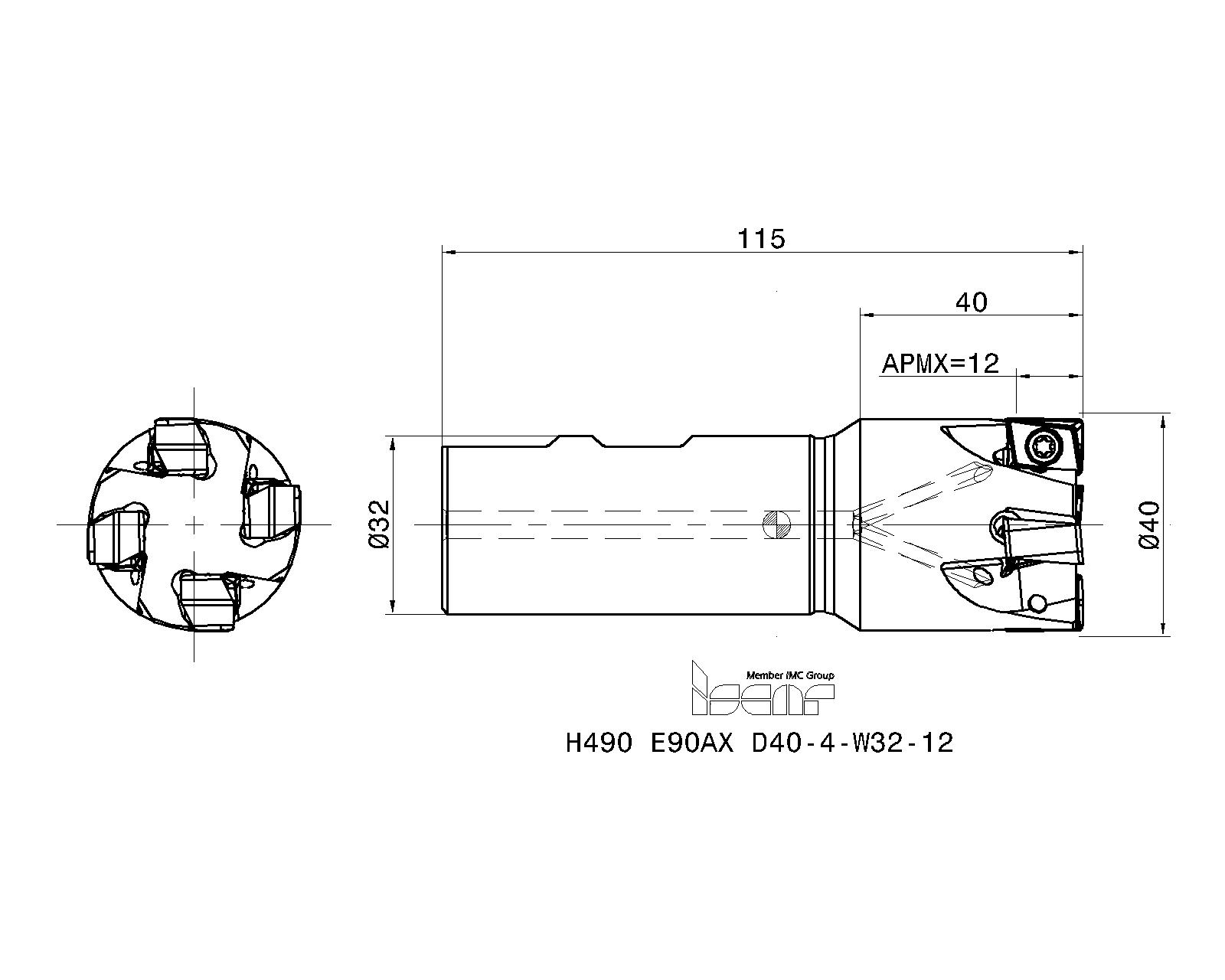

Item Designation: H490 E90AX D40-4-W32-12

DC	CICT	APMX	OAL	LH	DCONMS	Shank	RMPX°		L3	PD	HAND	Insert		Mod	Pocket	D Inner	Ap Back	MIID	MIID_2	CNSC	CXSC	ISYC	ISYC_2	ISCTMP	ISCTMP_2	ClssID	ClssID_2	GTC	GTC_2	OAL_2	KAPR	APMX_2	DC_2	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	PD-CS	APMX_3	APMX_4	APMX_5	BD	BD_3	BD_4	BD_5	ClssID_3	ClssID_4	ClssID_5	CSP	CUBPMS	CZCMS	DC_3	DC_4	DC_5	DCX	DCX_2	DCX_3	DCX_4	DF	GTC_3	GTC_4	GTC_5	IIC	IIC_2	ISCTMP_3	ISCTMP_4	ISCTMP_5	ISYC_3	ISYC_4	ISYC_5	KAPR_2	KAPR_3	KAPR_4	KAPR_5	LF	LF_2	LF_3	LF_4	LF_5	LH_2	LH_4	LH_5	LPR_4	LPR_5	LTA	LTA_2	LTA_3	LTA_4	LTA_5	LU	LU_2	MIID_3	MIID_4	MIID_5	OAL_3	OAL_4	OAL_5	RMPX°_2	RMPX°_3	RMPX°_4	RMPX°_5	RPMX	SPI	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
40.00	4	12.00	115.00	40.0	32.00	W	1.5	Y~	12.00~	RF~	R~	H490 ANKX 12~	0.73	100~	H490 ANKX 12~	30.25~	0.00~	H490 ANKX 1205PNTR-RM	H490 ANCX 1205R15T-FF~	1~	2~	307-01~	307-02~	GEMLT010020~	GEMLT060020~	71E01A05D27A8~	71E01A05D27A8~	MILSQI_MZYL10~	MILSQI_MZYL10~	115.00~	90.0~	2.00~	40.00~	4~	0~	4~	S~	ZYL~	10~	ZYL10G3200h$06~	RC~	~	~	~	~	~	~	~	~	~	~	1~	G~	3200~	~	~	~	~	~	~	~	~	~	~	~	IS$$299167305674040~	IS$$318455661317409~	~	~	~	~	~	~	~	~	~	~	79.00~	79.00~	~	~	~	40.0~	~	~	-~	-~	55.00~	0.00~	-~	-~	-~	~	~	~	~	~	~	~	~	~	~	~	~	~	~	h6~	M~	4~	4~	3104762		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3104762		1	0	32				<a href="javascript:OpenDxf('3104762', 'H490 E90AX D40-4-W32-12' , 'IscarDxf' , '3104762-H490 E90AX D40-4-W32-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3104762&itemDesc=H490 E90AX D40-4-W32-12"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3104762&itemDesc=H490 E90AX D40-4-W32-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info".

Spare Parts
	7000216	SR 14-544	Torx screw	Details
Recommended tightening torque:4.8 Nm (42.5lbfin)
	7002097	SW6-T	T-handle
	7002095	BLD T15/M7	Torx blade
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
