Family Designation: T290 LNK-05

Extended flute endmills with T290 LNMT/HT 0502... tangentially clamped inserts.

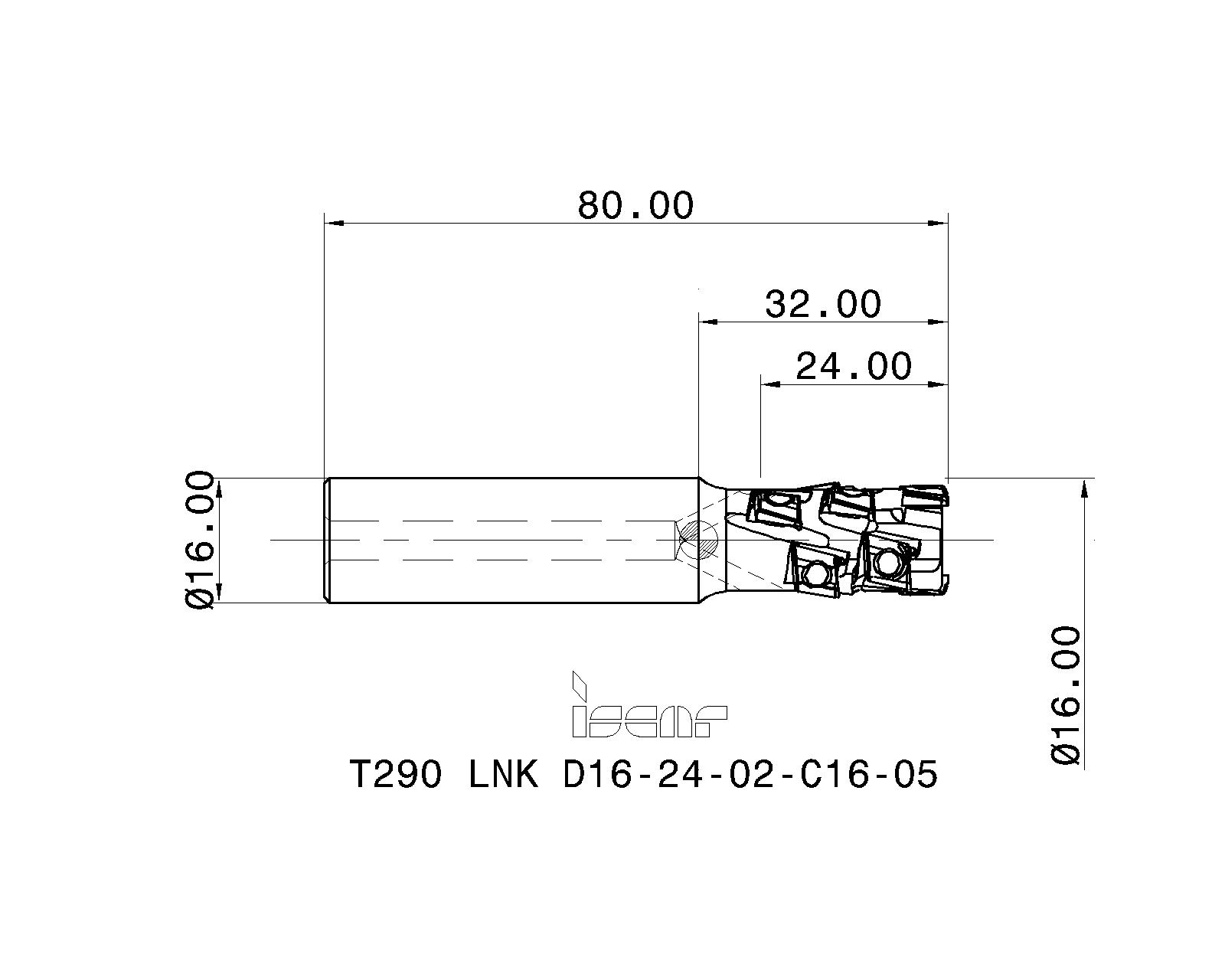

Item Designation: T290 LNK D16-24-02-C16-05

DC	CICT	NOF	APMX	LH	OAL	DCONMS	Shank		CSP		L	HAND	L3	PD	Insert	Pocket	Ap Back	BMC	CCMS	RMPX°	CCFMS	CCTMS	ClssID	CNSC	CUBPMS	CXSC	CZCMS	GTC	IIC	ISCTMP	ISYC	KAPR	LTA	LU	MIID	TCDCONMS	UST	ZADJ	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic
16.00	10	2	24.00	31.0	80.00	16.00	C	Y~	1~	0.10	5.70~	R~	5.00~	F~	T290 LN.. 05~	T290 LN.. 05~	0.00~	S~	ZYL01G1600h$06~	0.0~	01~	ZYL~	71E01A05D27A8~	1~	G~	2~	1600~	MILSQI_MZYL01~	IS$$289493872070850~	GEMLT020020~	307-07~	90.0~	32.00~	-~	T290 LNHT 050202TR	h6~	M~	0~	2~	2~	10~	3105108		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3105108		3	0	0				<a href="javascript:OpenDxf('3105108', 'T290 LNK D16-24-02-C16-05' , 'IscarDxf' , '3105108-T290 LNK D16-24-02-C16-05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105108&itemDesc=T290 LNK D16-24-02-C16-05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105108&itemDesc=T290 LNK D16-24-02-C16-05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For cutting recommendations and adaptation, click on "More Info"

Spare Parts
	7066668	SR 10503833	Torx screw	Details
Recommended tightening torque: 0.9 Nm (8lbfin)
	7000270	T-7/51	Torx hand driver	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
