Family Designation: MM S-A-N

MULTI-MASTER, stepped cylindrical shanks with parallel directed coolant for solid carbide milling heads.

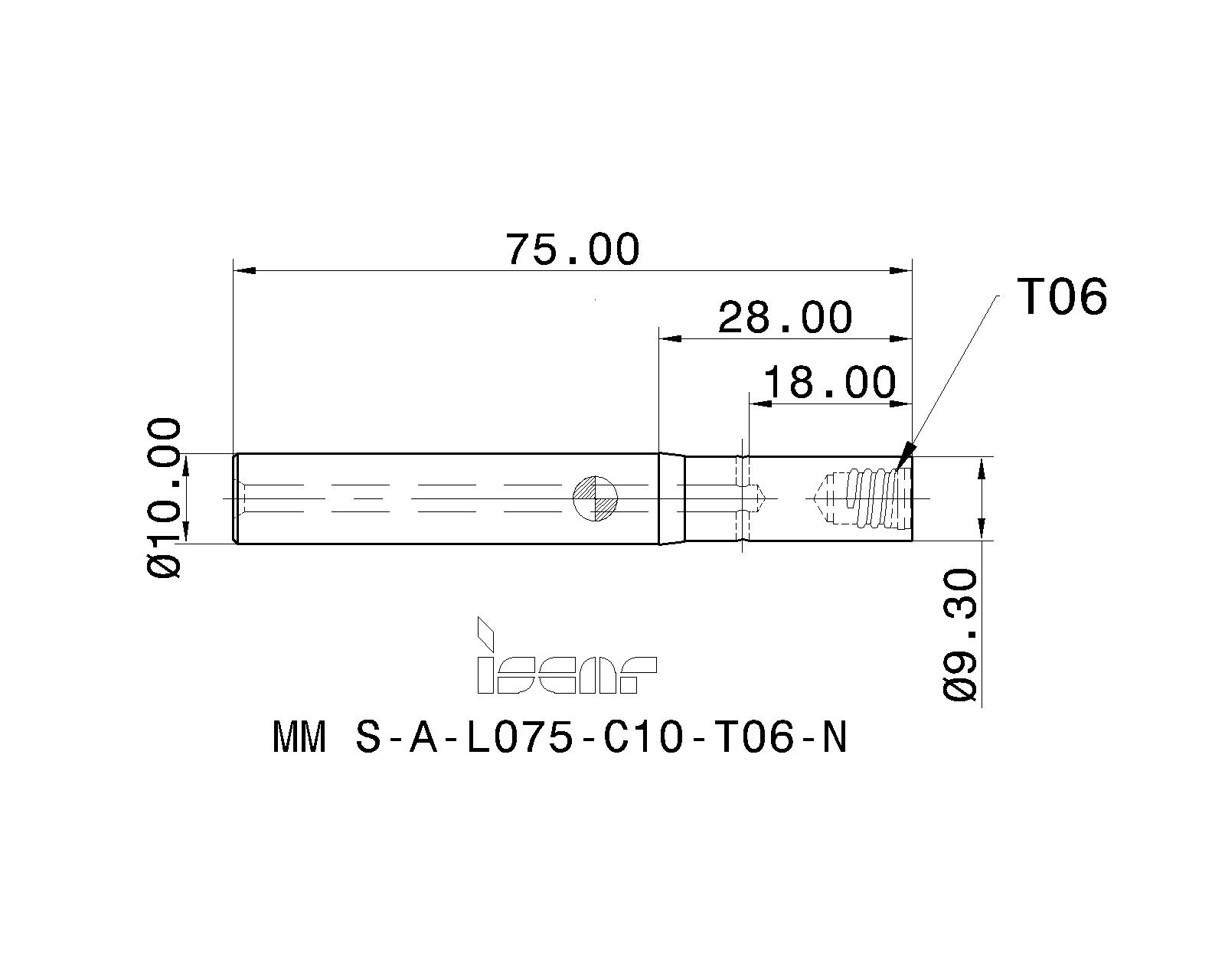

Item Designation: MM S-A-L075-C10-T06-N

THSZWS	DCONMS	BD	LB	LBX	OAL	Shank m.		CCMS	CSP	GICAT	GIREM	giic
T06	10.00	9.60	18.00	28.0	75.00	S	0.04	ZYL01G1000h$06~	1~	3105163		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3105163		1	0	152				<a href="javascript:OpenDxf('3105163', 'MM S-A-L075-C10-T06-N' , 'IscarDxf' , '3105163-MM S-A-L075-C10-T06-N');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105163&itemDesc=MM S-A-L075-C10-T06-N"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105163&itemDesc=MM S-A-L075-C10-T06-N"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For adaptation click on "More Info"
Do not apply lubricant to the threaded connection
