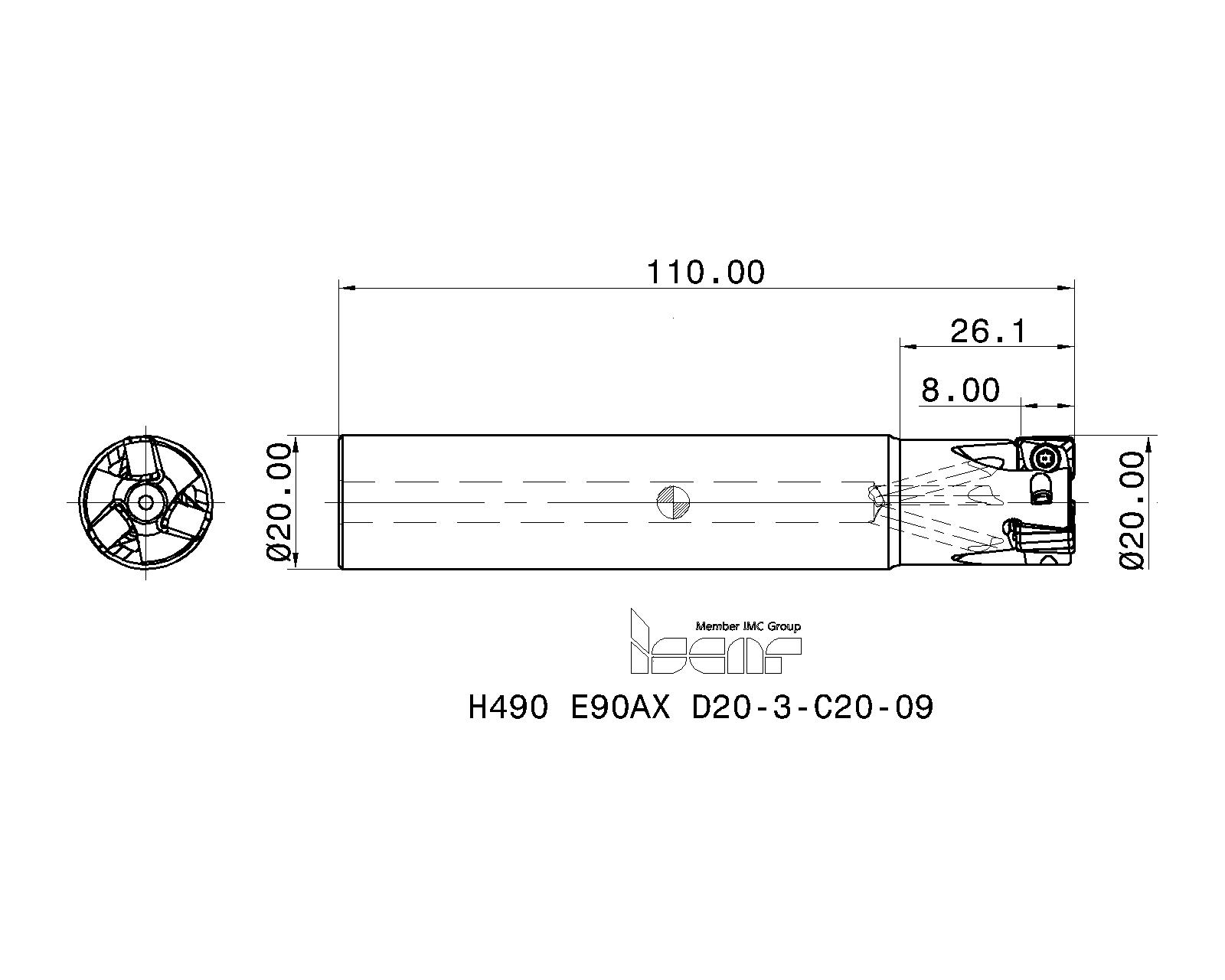

Family Designation: H490 E90AX-09

90° endmills carrying H490 ANKX 09... double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications.

Item Designation: H490 E90AX D20-3-C20-09

DC	CICT	APMX	OAL	LU	DCONMS	Shank		L3	PD	HAND	Insert		Mod	Pocket	D Inner	Ap Back	MIID	MIID_2	CNSC	CXSC	ISYC	ISYC_2	ISCTMP	ISCTMP_2	ClssID	ClssID_2	GTC	GTC_2	OAL_2	KAPR	APMX_2	DC_2	NOF	ZADJ	ZNP	BMC	CCTMS	CCFMS	CCMS	APMX_3	APMX_4	APMX_5	BD	BD_3	BD_4	BD_5	ClssID_3	ClssID_4	ClssID_5	CSP	CUBPMS	CZCMS	DC_3	DC_4	DC_5	DCX	DCX_2	DCX_3	DCX_4	DF	GTC_3	GTC_4	GTC_5	IIC	IIC_2	ISCTMP_3	ISCTMP_4	ISCTMP_5	ISYC_3	ISYC_4	ISYC_5	KAPR_2	KAPR_3	KAPR_4	KAPR_5	LF	LF_2	LF_3	LF_4	LF_5	LH	LH_2	LH_4	LH_5	LPR_4	LPR_5	LTA	LTA_2	LTA_3	LTA_4	LTA_5	LU_2	MIID_3	MIID_4	MIID_5	OAL_3	OAL_4	OAL_5	RMPX°	RMPX°_2	RMPX°_3	RMPX°_4	RMPX°_5	RPMX	SPI	TCDCONMS	UST	ZEFF	ZEFP	GICAT	GIREM	giic
20.00	3	8.00	110.00	26.0	20.00	C	Y~	9.00~	RF~	R~	H490 ANKX 09~	0.23	100~	H490 ANKX 09~	14.60~	0.00~	H490 ANKX 0904	H490 ANKX 0904R12T-FF~	1~	2~	307-01~	307-02~	GEMLT010020~	GEMLT060020~	71E01A05D27A8~	71E01A05D27A8~	MILSQI_MZYL01~	MILSQI_MZYL01~	110.00~	90.0~	1.00~	20.00~	3~	0~	3~	S~	ZYL~	01~	ZYL01G2000h$06~	~	~	~	~	~	~	~	~	~	~	1~	G~	2000~	~	~	~	~	~	~	~	~	~	~	~	IS$$472552026490760~	IS$$520776018712520~	~	~	~	~	~	~	~	~	~	~	110.00~	110.00~	~	~	~	~	~	~	~	-~	-~	60.00~	0.00~	-~	-~	-~	26.00~	~	~	~	~	~	~	0.0~	~	~	~	~	~	~	h6~	M~	3~	3~	3105260		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3105260		1	0	640				<a href="javascript:OpenDxf('3105260', 'H490 E90AX D20-3-C20-09' , 'IscarDxf' , '3105260-H490 E90AX D20-3-C20-09');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105260&itemDesc=H490 E90AX D20-3-C20-09"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105260&itemDesc=H490 E90AX D20-3-C20-09"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For adaptation, click on "More Info"
"B" Suffix cylindrical shank which may be shortened

Spare Parts
	7005890	SR 10508082-HG	Torx screw	Details
Recommended tightening torque:1.2 Nm (10.6lbfin)
	7002212	SW4-SD	Handle
	7002348	BLD T08/M7	Torx blade
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
