Family Designation: FF EWX HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges.


 COOLANT THROUGH TOOL

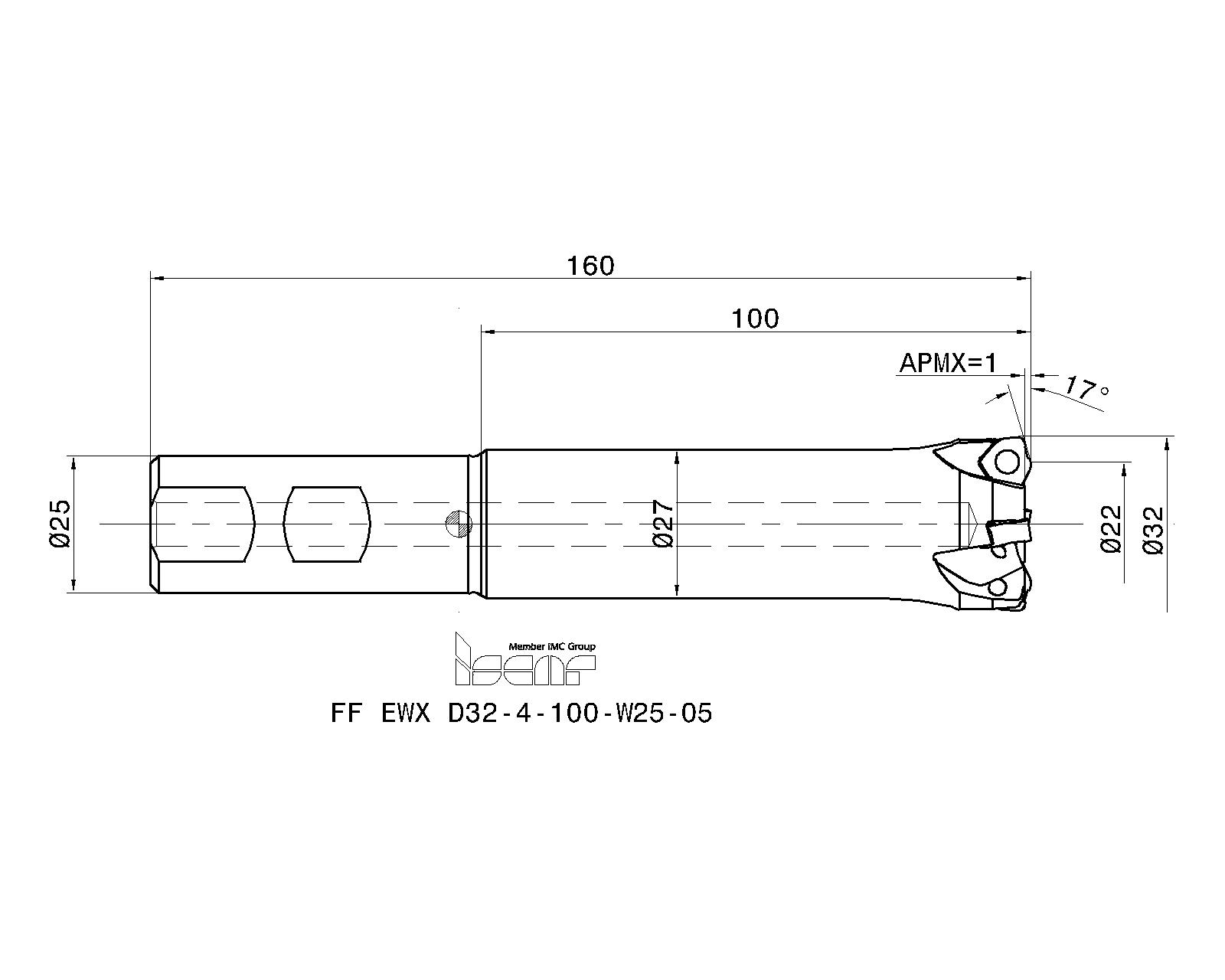

Item Designation: FF EWX D32-4-100-W25-05
Ord DCX  DC AE APMX CICT  BD LU LH OAL DCONMS Shank  RMPX°  MDN  MDX  KAPR  Fig. IC HAND Rg  Insert Mod Pocket D Inner Ap Back MIID   CNSC CXSC ISYC ISCTMP ClssID GTC PD NOF  ZADJ ZNP  BMC CCTMS CCFMS CCMS APMX_2 APMX_3 APMX_4 APMX_5 BD_3 BD_4 BD_5 ClssID_2ClssID_3ClssID_4ClssID_5CSP  CUBPMS CZCMS  DC_2 DC_3 DC_4 DC_5 DCX_2 DCX_3 DCX_4 DF FF/RN/P GTC_2 GTC_3 GTC_4 GTC_5 IIC ISCTMP_2ISCTMP_3ISCTMP_4ISCTMP_5ISYC_2 ISYC_3 ISYC_4 ISYC_5 KAPR_2 KAPR_3 KAPR_4 KAPR_5 LF LF_2 LF_3 LF_4 LF_5 LH_2 LH_4 LH_5 LPR_2 LPR_3 LPR_4 LPR_5 LTA LTA_2 LTA_3 LTA_4 LTA_5 LU_2 MIID_2  MIID_3  MIID_4  MIID_5  OAL_2 OAL_3 OAL_4 OAL_5 RMPX°_2 RMPX°_3 RMPX°_4 RMPX°_5 RPMX  TCDCONMSUST ZEFF GICATGIREMgiic
20~32.0022.005.0~1.00427.00-100.0160.0025.00W4.054.0063.0017.0Y~18.33~R~2.10~H600 WXCU 05~110~H600 WXCU 05~22.00~1.25~H600 WXCU 05T312T2.0~0.601~3~307-02~GEMLT060020~71E01A05D27A8~MILSQI_MZYL10~XF~4~0~4~S~ZYL~10~ZYL10G2500h$06~~~~~~~~~~~~1~G~2500~~~~~~~~~FF~~~~~IS$$501494698483240~~~~~~~~~~~~~128.00~~~~~~~~-~~-~-~104.00~0.00~-~-~-~~~~~~~~~~~~~~0~h6~M~4~3105529 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21
3105529 3016<a href="javascript:OpenDxf('3105529', 'FF EWX D32-4-100-W25-05' , 'IscarDxf' , '3105529-FF EWX D32-4-100-W25-05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105529&itemDesc=FF EWX D32-4-100-W25-05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3105529&itemDesc=FF EWX D32-4-100-W25-05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
For machining recommendations, radius for programming and adaptation click on "More Info"
To generate a straight surface without cusps, the width of cut must not exceed DC
3D Representation
Assembly Video
2D Representation
  Spare Parts
7006042SR 10508600Torx screw
Details
Recommended tightening torque:2 N*m (17.7 lbf*in)
7003372T-9/51Torx hand driver
Details
For limiting torque, use optional 7007381 BLD 4 T09-2.0NM blade & 7007320 HSD 4-2.0NM handle.
