ISCAR Cutting Tools - Metal Working Tools - T490 ELN-08 : 3105603

Geometry Checker ×

Family Designation: T490 ELN-08

T490 Line, 90° endmills carrying T490 LNMT/LNHT 08...tangentially clamped inserts with 4 helical, 8 mm long cutting edges.

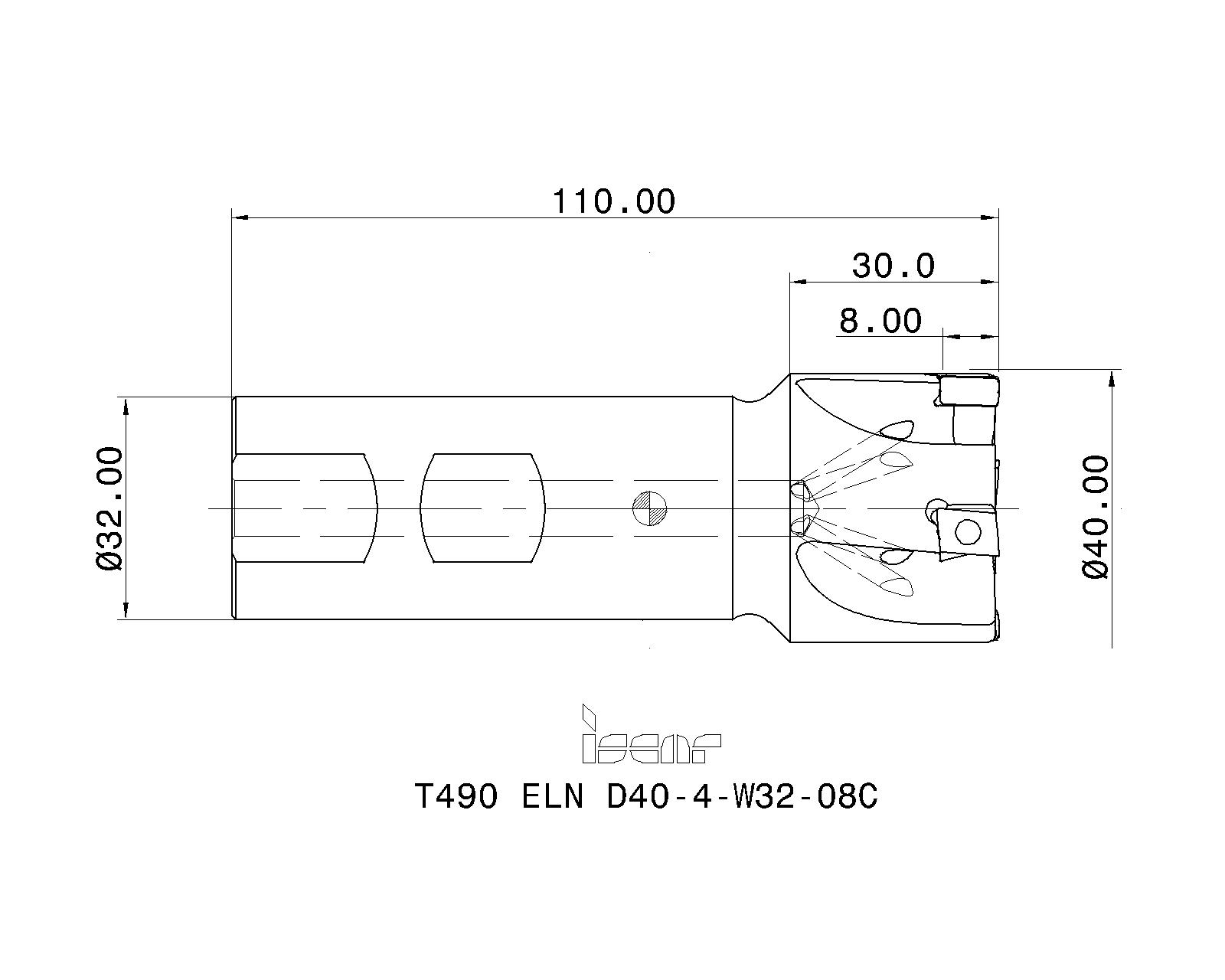

Item Designation: T490 ELN D40-4-W32-08C

DC	CICT	LH	LU	APMX	OAL	DCONMS	Shank	CSP	RMPX°	RMPX°_2		HAND	MIID	CCMS	NOF	KAPR	DCX	ZEFF	GICAT	GIREM	giic
40.00	4	-	30.0	8.00	110.00	32.00	W	1	-	-	0.68	R~	T490 LNMT 0804PNR	ZYL10G3200h$06~	4~	90.0~	~	4~	3105603		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3105603		3	0	0				<a href="javascript:OpenDxf('3105603', 'T490 ELN D40-4-W32-08C' , 'IscarDxf' , '3105603-T490 ELN D40-4-W32-08C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105603&itemDesc=T490 ELN D40-4-W32-08C"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105603&itemDesc=T490 ELN D40-4-W32-08C"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
"B" suffix with long cylindrical shank which may be shortened.
For adaptation, click on "More Info"

Spare Parts
	4398576	SR 10502813-HG-M	Torx screw	Details
Recommended tightening torque:1.2 N*m
	7003436	IP-7/51	Torx hand driver	Details
For limiting torque, use optional 3315468 BLD 4 IP07-1.2NM blade & 7007319 HSD 4-1.2NM handle.
