Family Designation: MM S-ER-H

Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes

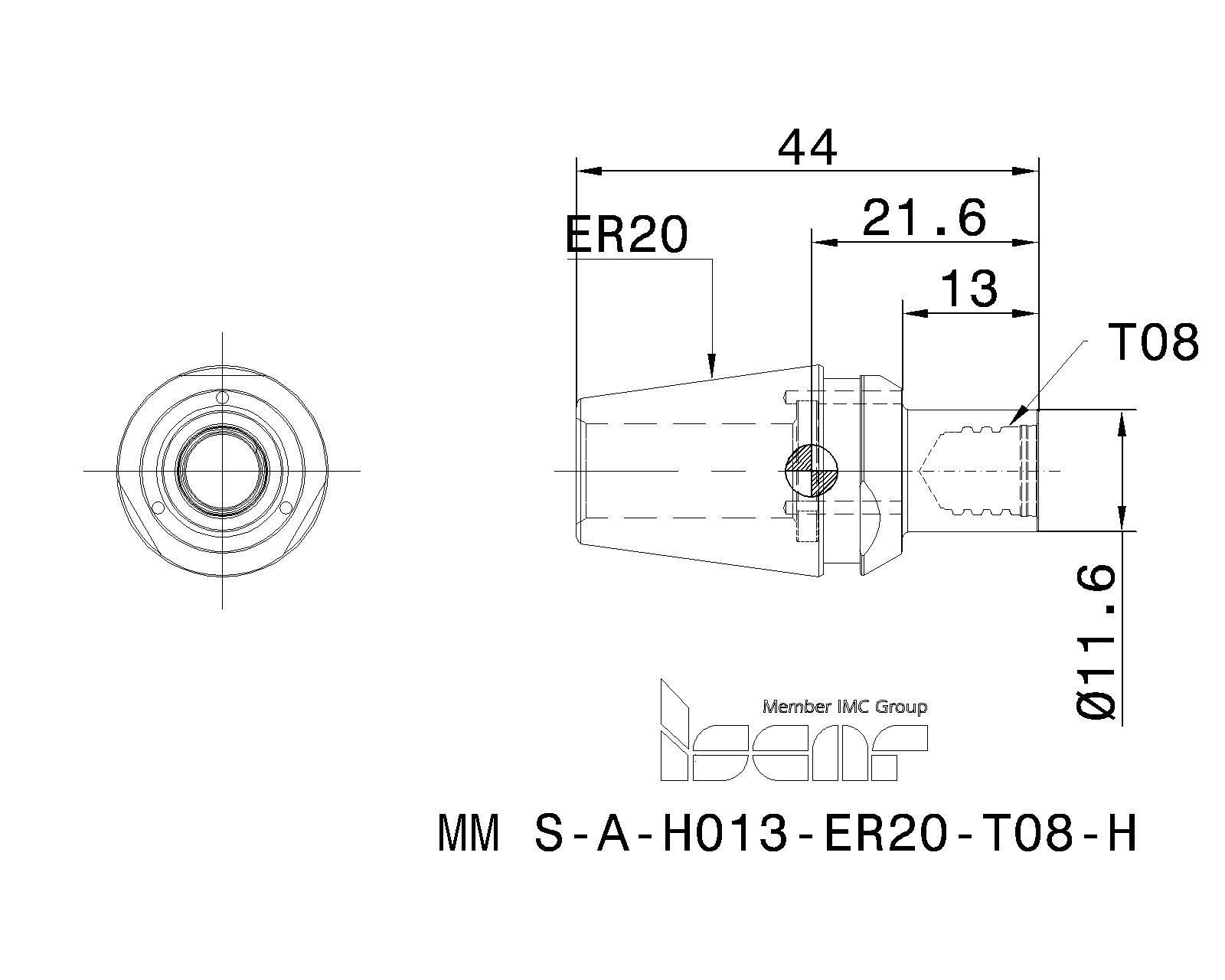

Item Designation: MM S-A-H013-ER20-T08-H

SS	THSZWS	BD	LBX	LF	OAL	Fig.		CCMS	CSP	GICAT	GIREM	giic
ER20	T08	11.60	13.0	21.60	44.50	1	0.07	SZD02C0000h$06~	1~	3105649		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3105649		1	9	23				<a href="javascript:OpenDxf('3105649', 'MM S-A-H013-ER20-T08-H' , 'IscarDxf' , '3105649-MM S-A-H013-ER20-T08-H');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3105649&itemDesc=MM S-A-H013-ER20-T08-H"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3105649&itemDesc=MM S-A-H013-ER20-T08-H"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Do not apply lubricant to the threaded connection.
For adaptation click on "More Info".
